Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

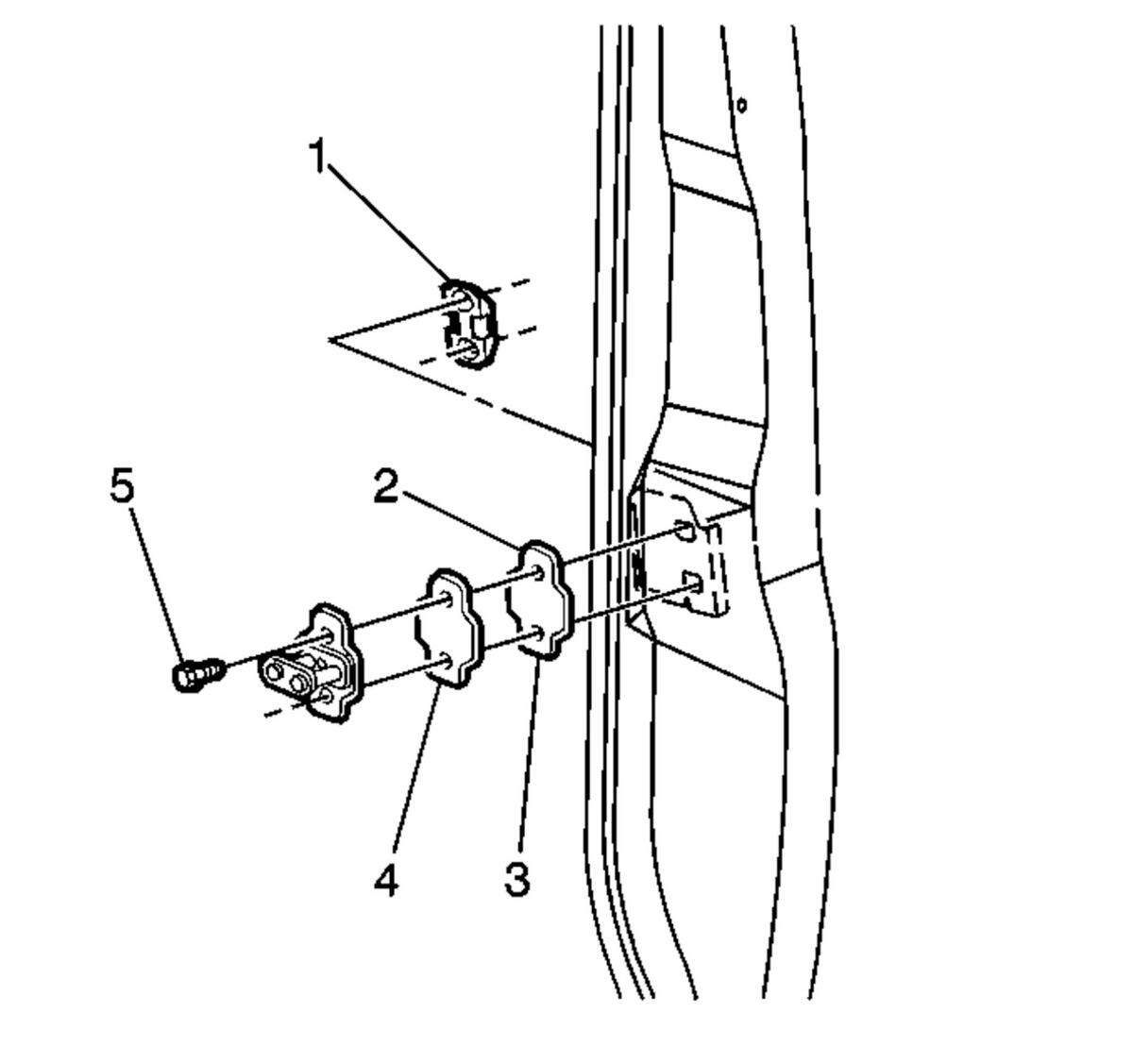

  1. GM333950Courtesy of GENERAL MOTORS COMPANY

    Install the door lock striker (4) to the door opening.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the bolts (5) in order to retain the door lock striker (4) to the door opening and tighten to 10 N.m (89 lb in).
