Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

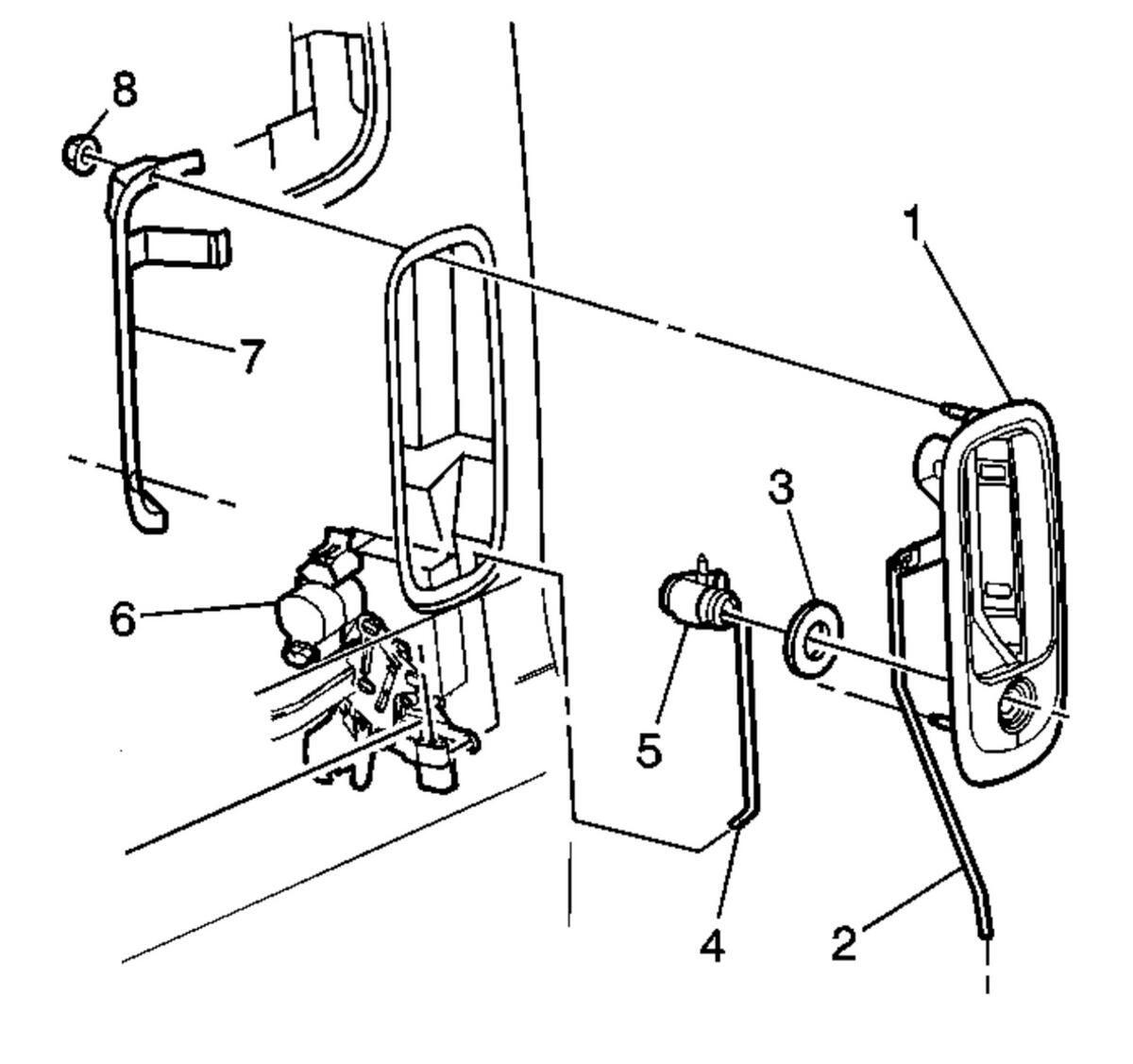

Front Side Door Outside Handle(1) - Install
- Front Side Door Outside Handle Nut (8) - Install and tighten 11 N.m (97 lb in)
- Front Side Door Lock Cylinder Rod(4) - Install
- Front Side Door Outside Handle Rod (2) - Install

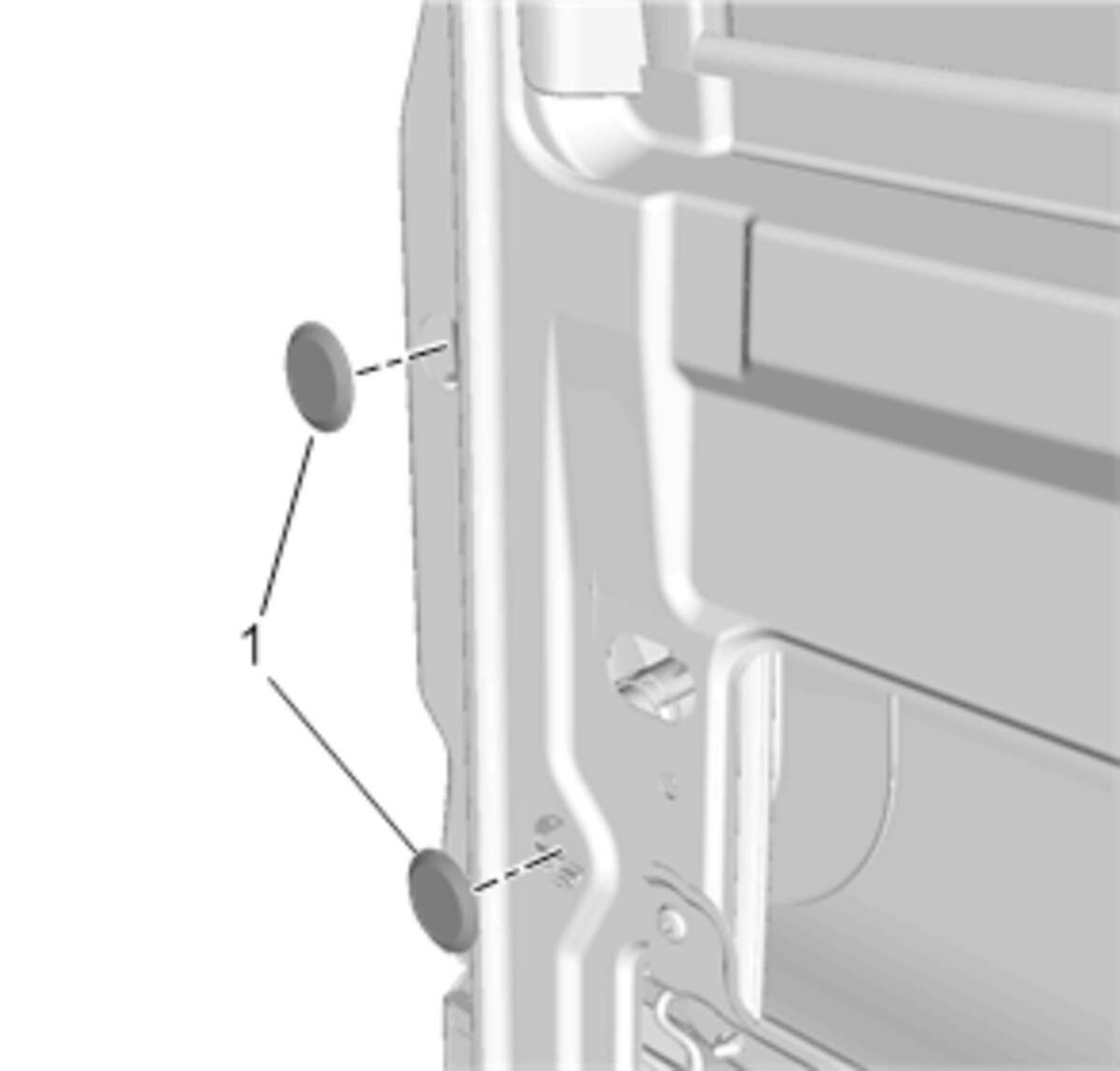

Front Side Door Access Hole Plug (1) - Install[2x]

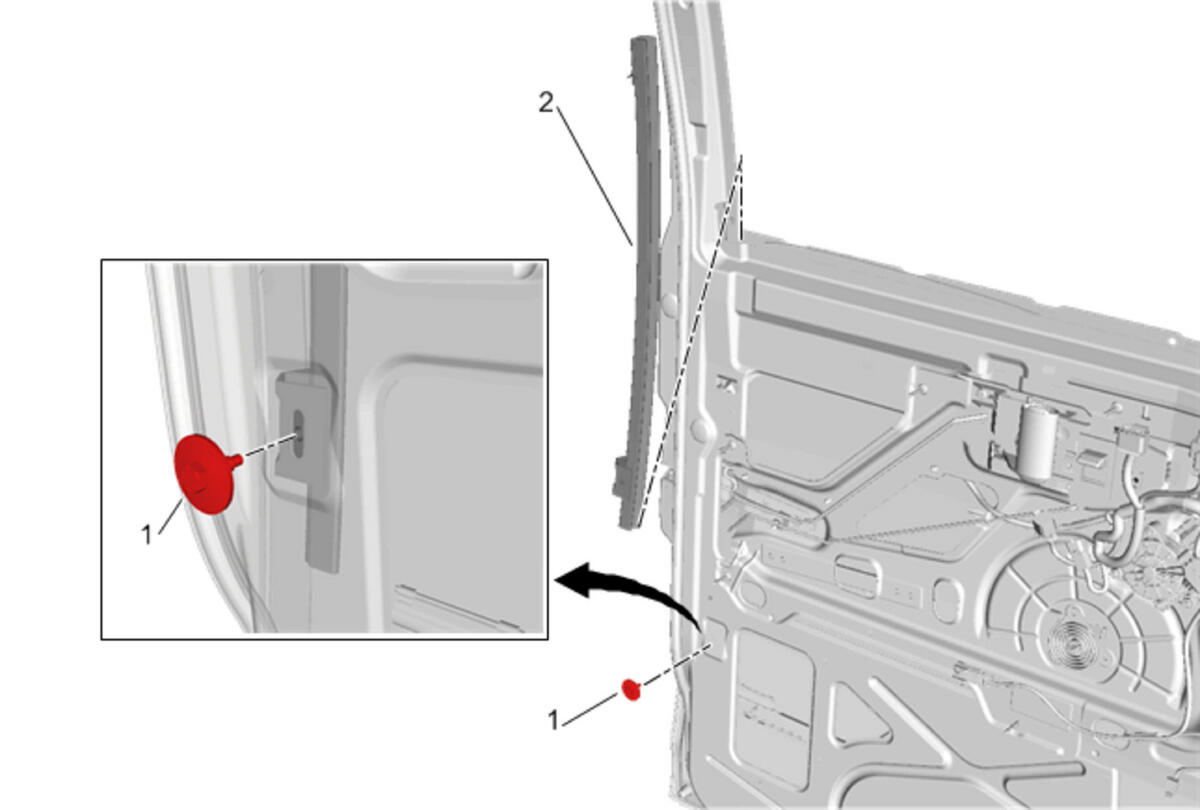

Front Side Door Window Channel - Lower Rear (2) - Install - Front Side Door Window Channel Replacement - Lower Rear
- Front Side Door Water Deflector - Install - Front Side Door Water Deflector Replacement
CAUTION:
Refer to Fastener Caution .
