Door Lock Switch Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Door Trim Plate Replacement |
|

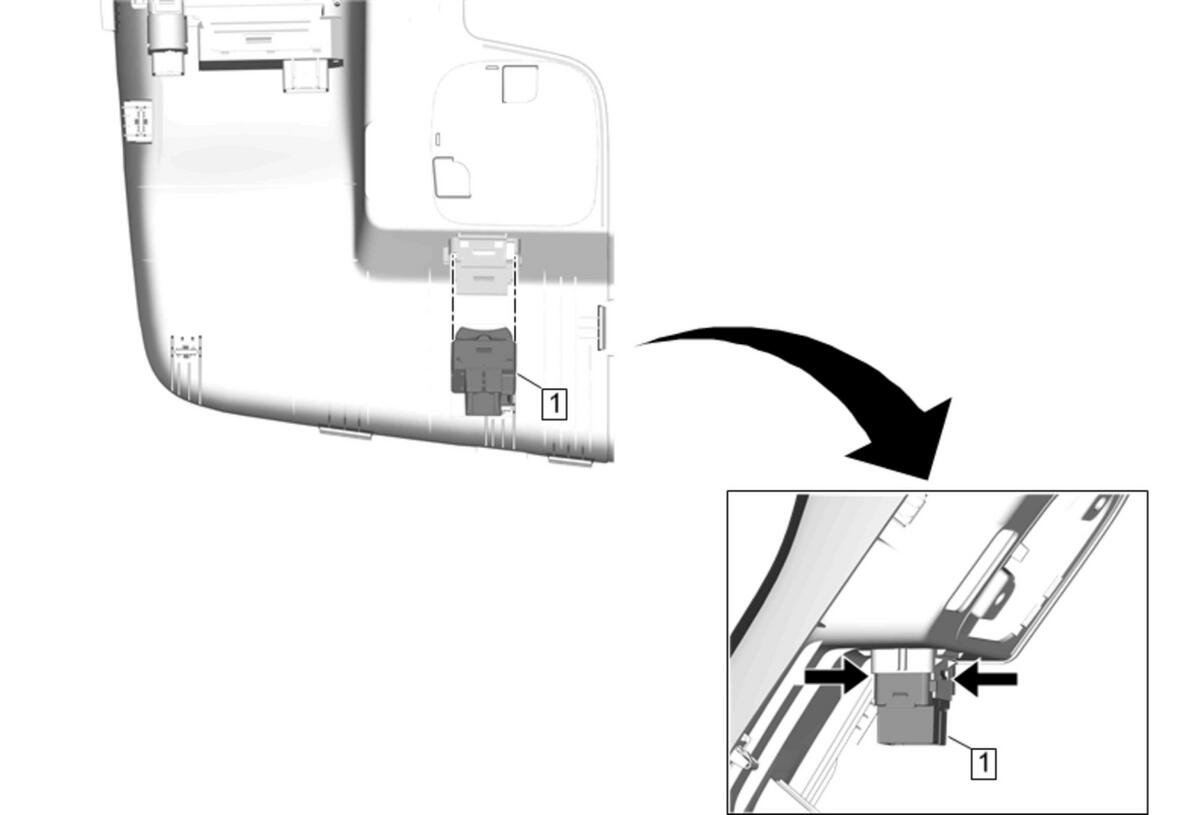

| 1 | Door Lock Switch Procedure From the backside of the front door trim plate, use a plastic trim tool to gently push in on the side tabs to release the switch from the front door trim plate. |
