Door Lock Cylinder Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

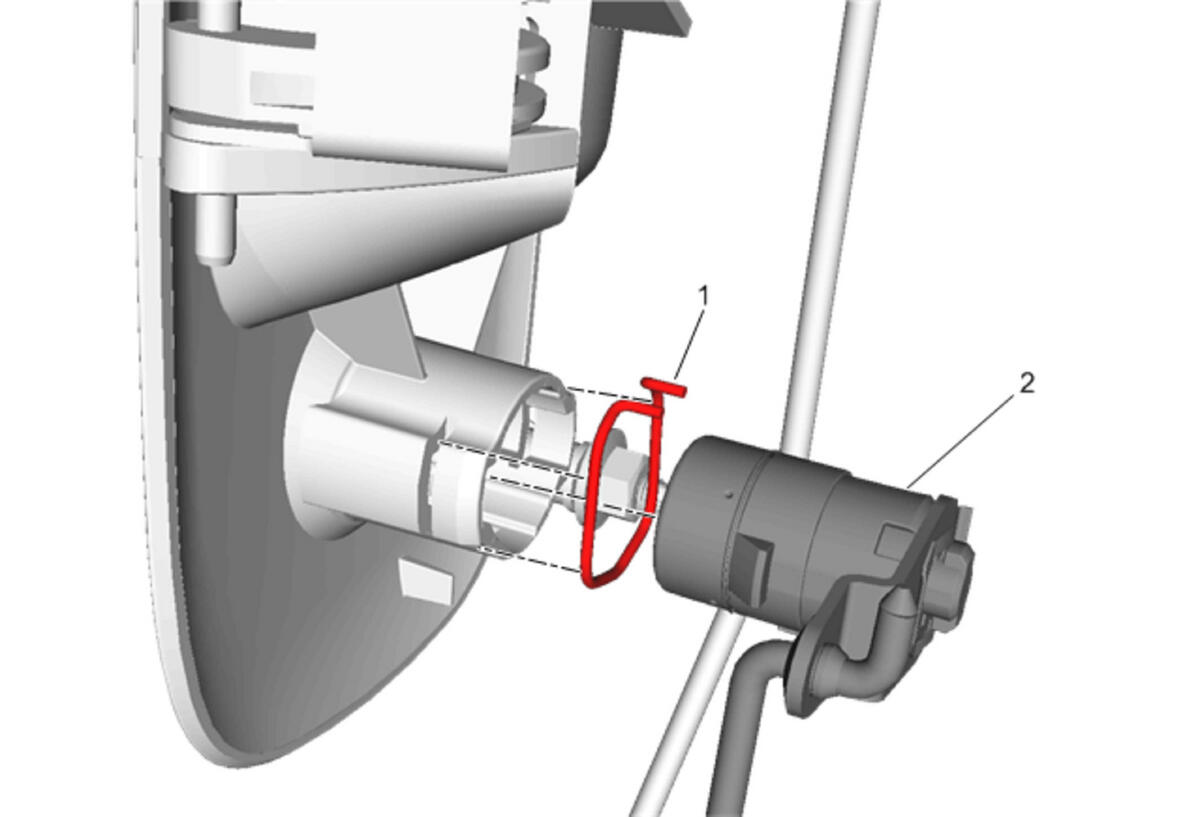

| Callout | Component Name |
|---|---|
| Preliminary Procedure Door Outside Handle Replacement |
|
| 1 | Front Lock Cylinder Retainer |
| 2 | Front Side Door Lock Cylinder Procedure After installation, code the key and lock cylinder. Key and Lock Cylinder Coding |
