Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

    CAUTION:

    Refer to Liftgate Assist Rod Caution .

  1. Open and support the cargo door.

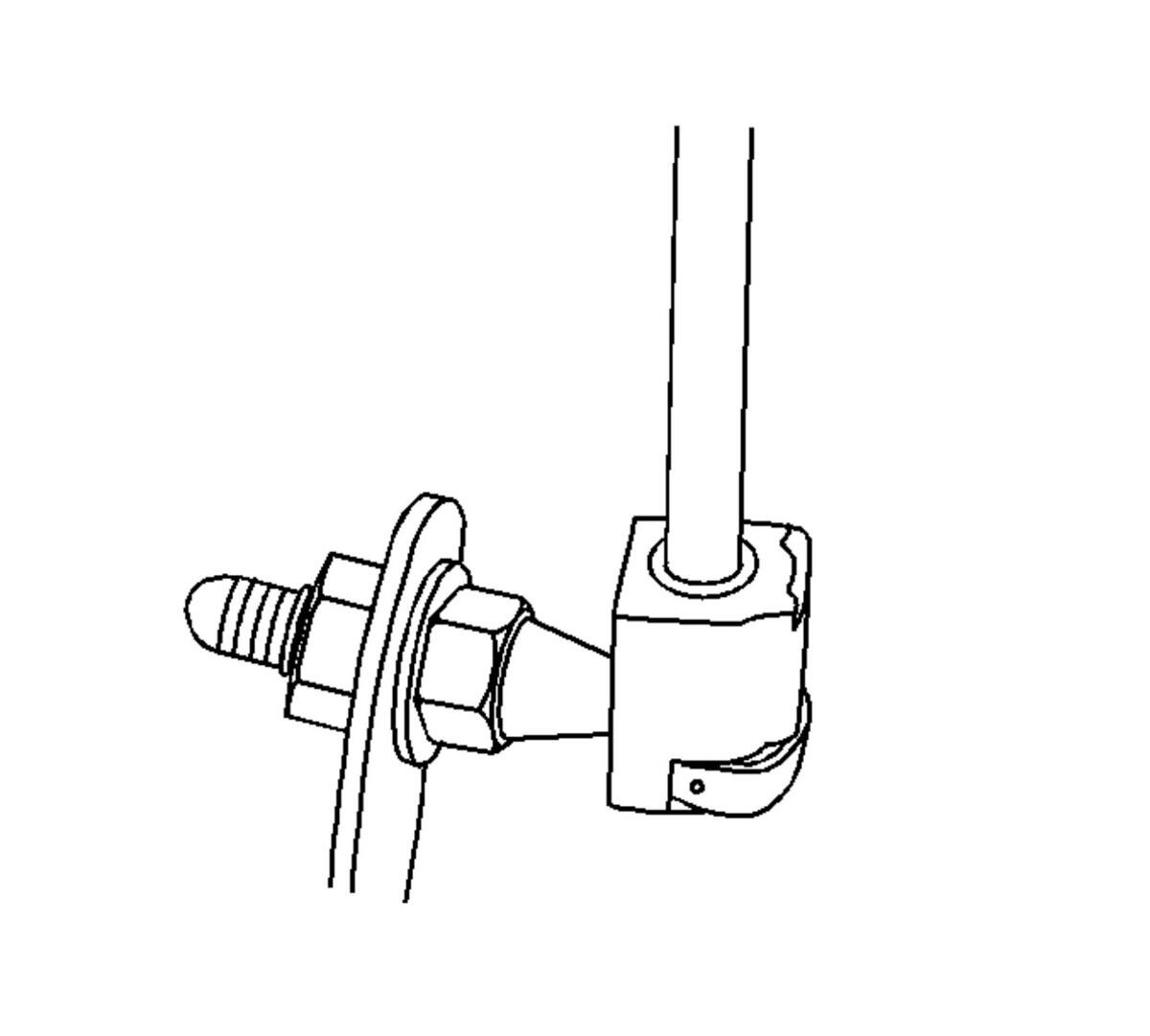

  2. GM824867Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed tool pry the retainer clip away from the ball stud socket.

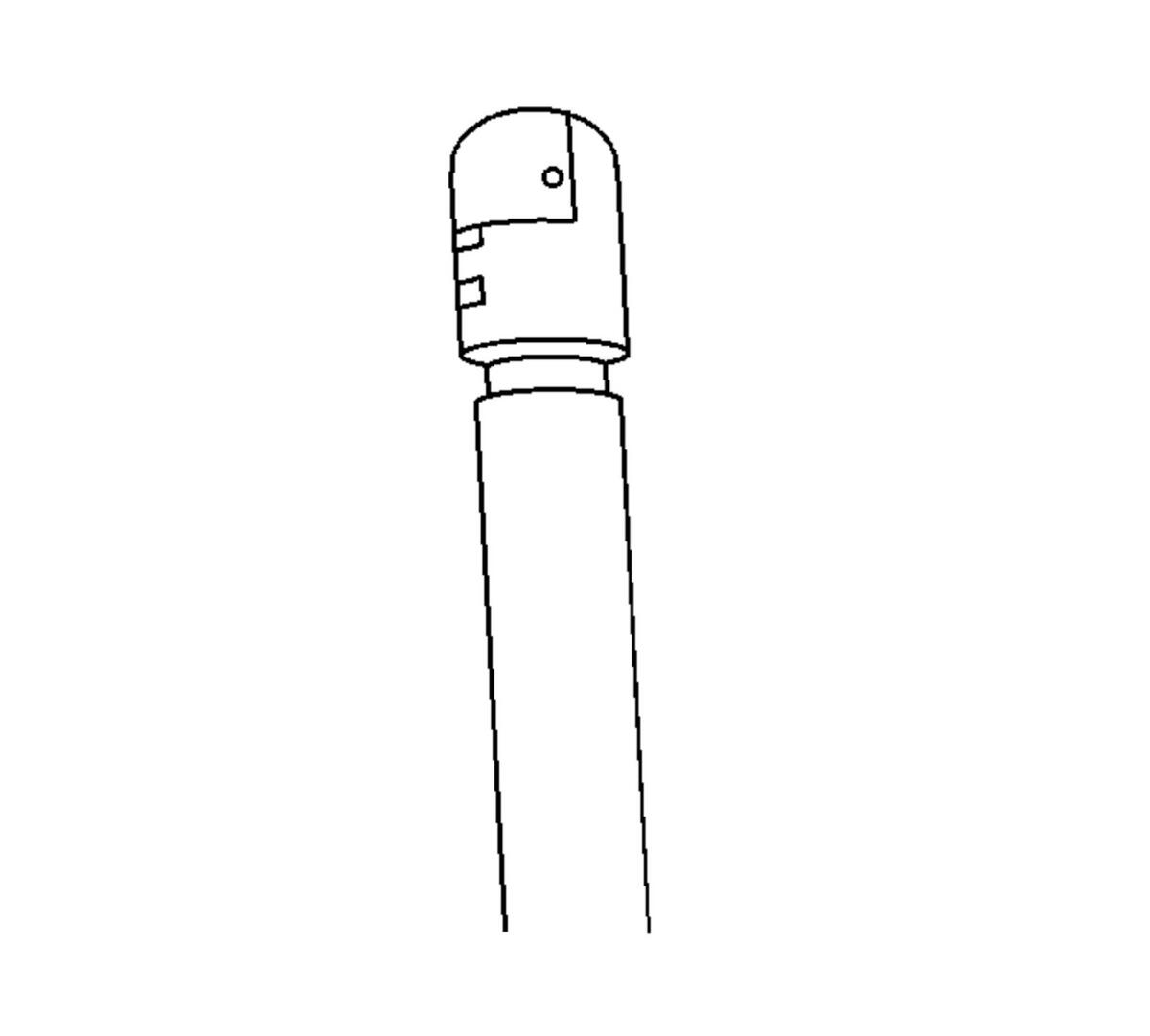

  3. GM824873Courtesy of GENERAL MOTORS COMPANY

    Remove the upper end of the assist rods from the ball stud.

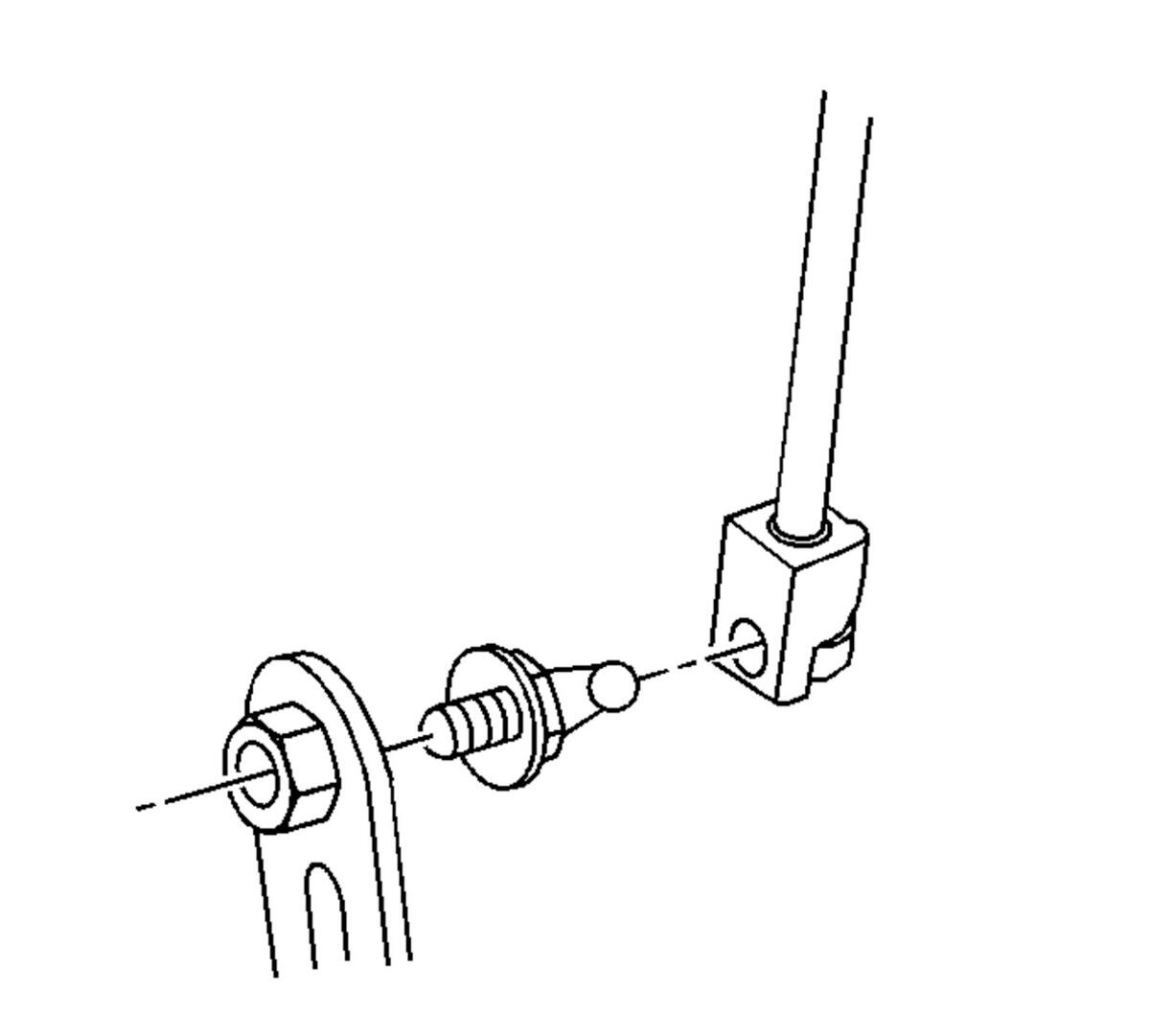

  4. GM824869Courtesy of GENERAL MOTORS COMPANY

    Remove the lower end of the assist rods from the ball stud.

  5. Remove the assist rods from the cargo door.

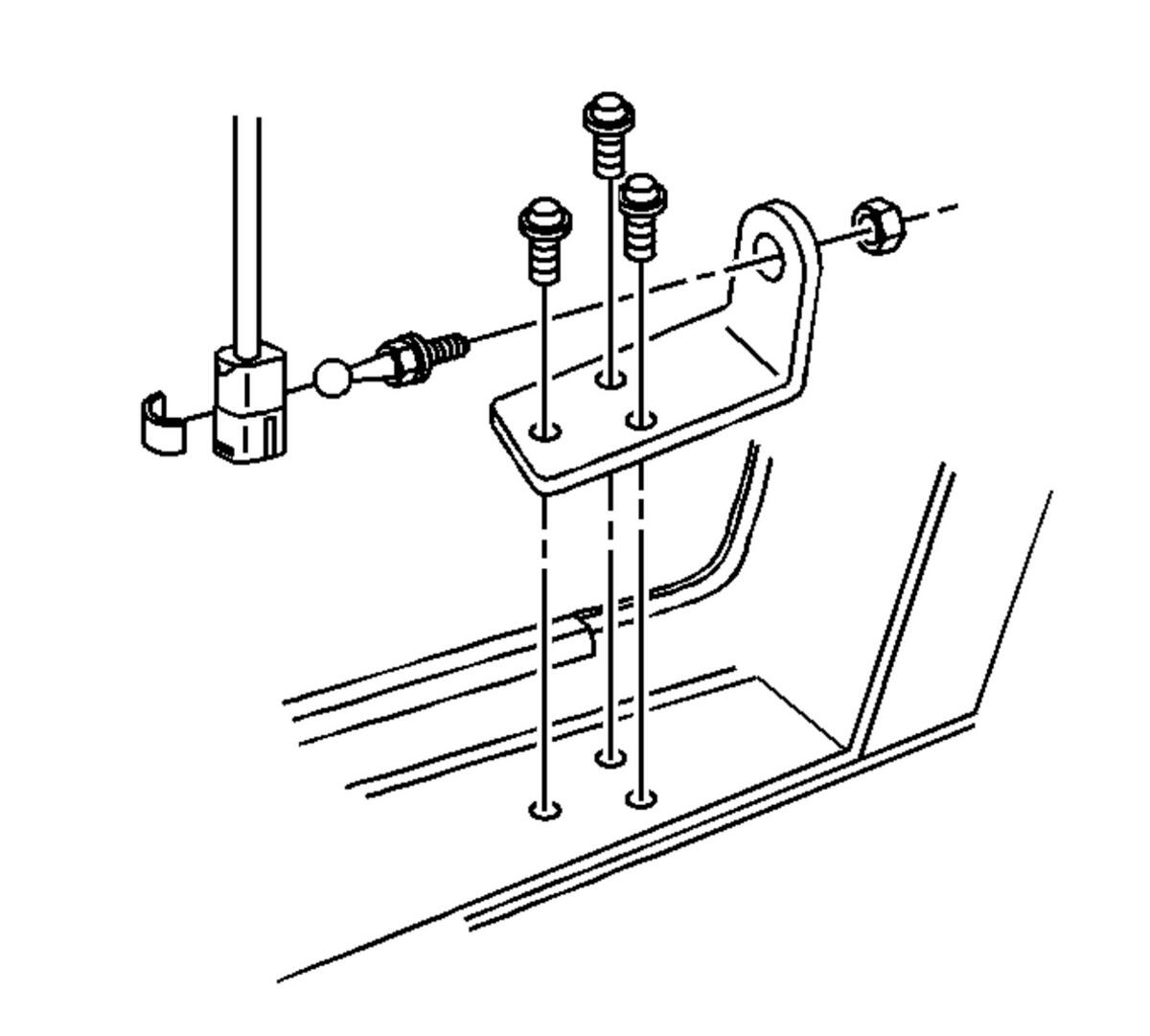

  6. GM834702Courtesy of GENERAL MOTORS COMPANY

    Remove ball stud bolts.

  7. Remove ball stud bracket.
