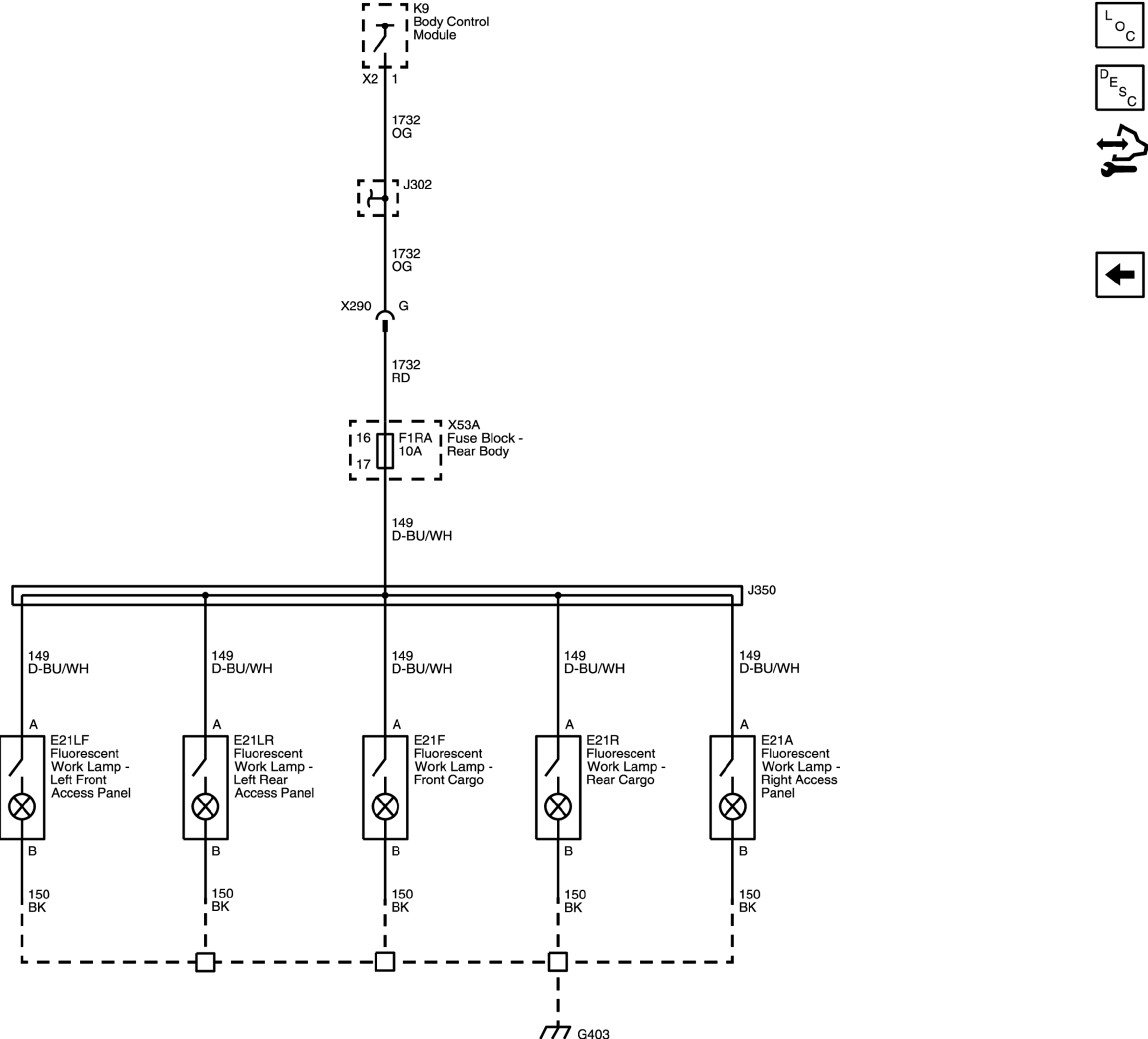

Side Access Panel and Cargo Work Lamps (PRP with UF2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
GM4938602Courtesy of GENERAL MOTORS COMPANY
