Underhood Lamp Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

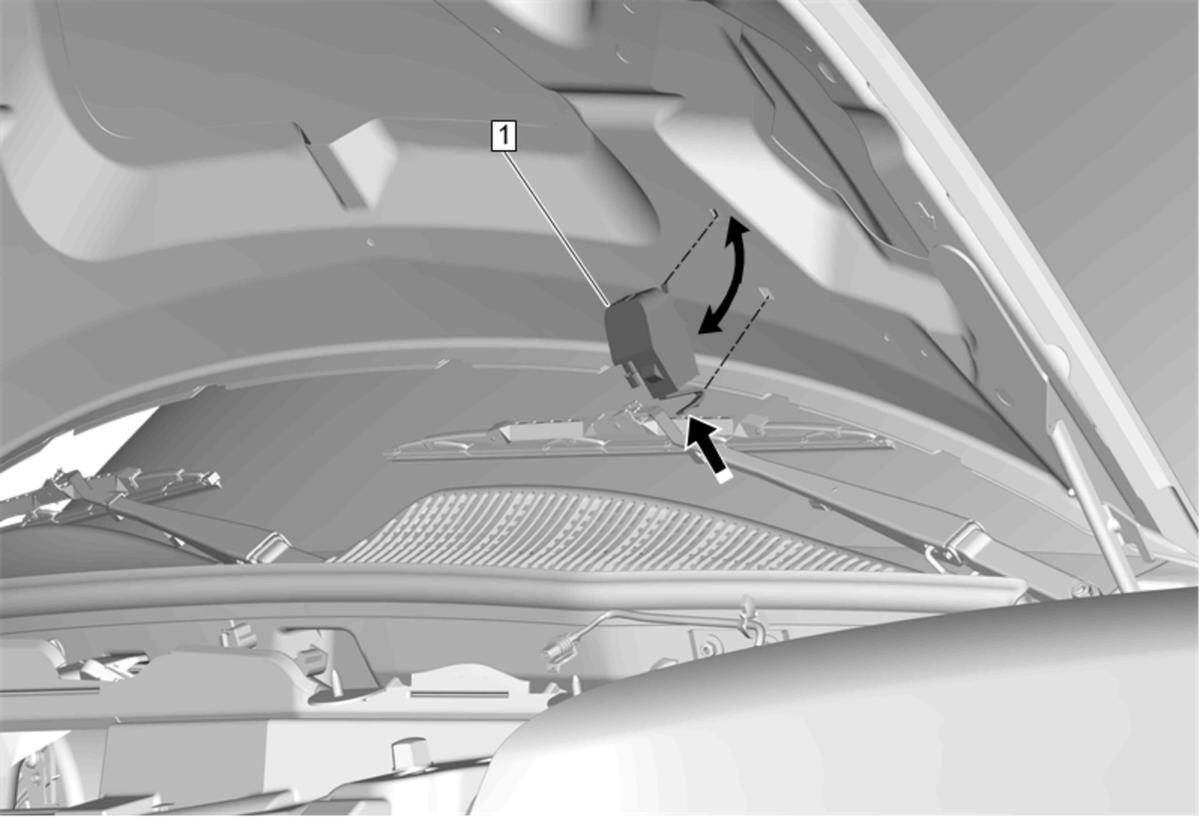

Callout	Component Name
Preliminary Procedure Open and support the hood. Disconnect the electrical connector.
1	Underhood Lamp Procedure Using a trim tool, release the locking tab securing the underhood lamp to the inner hood panel. Pull the lamp down to allow the upper tab to clear the opening in the hood.

Callout

Component Name

Preliminary Procedure

Open and support the hood.
Disconnect the electrical connector.

Underhood Lamp

Procedure

Using a trim tool, release the locking tab securing the underhood lamp to the inner hood panel.
Pull the lamp down to allow the upper tab to clear the opening in the hood.
