High Mount Stop Lamp Bulb Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

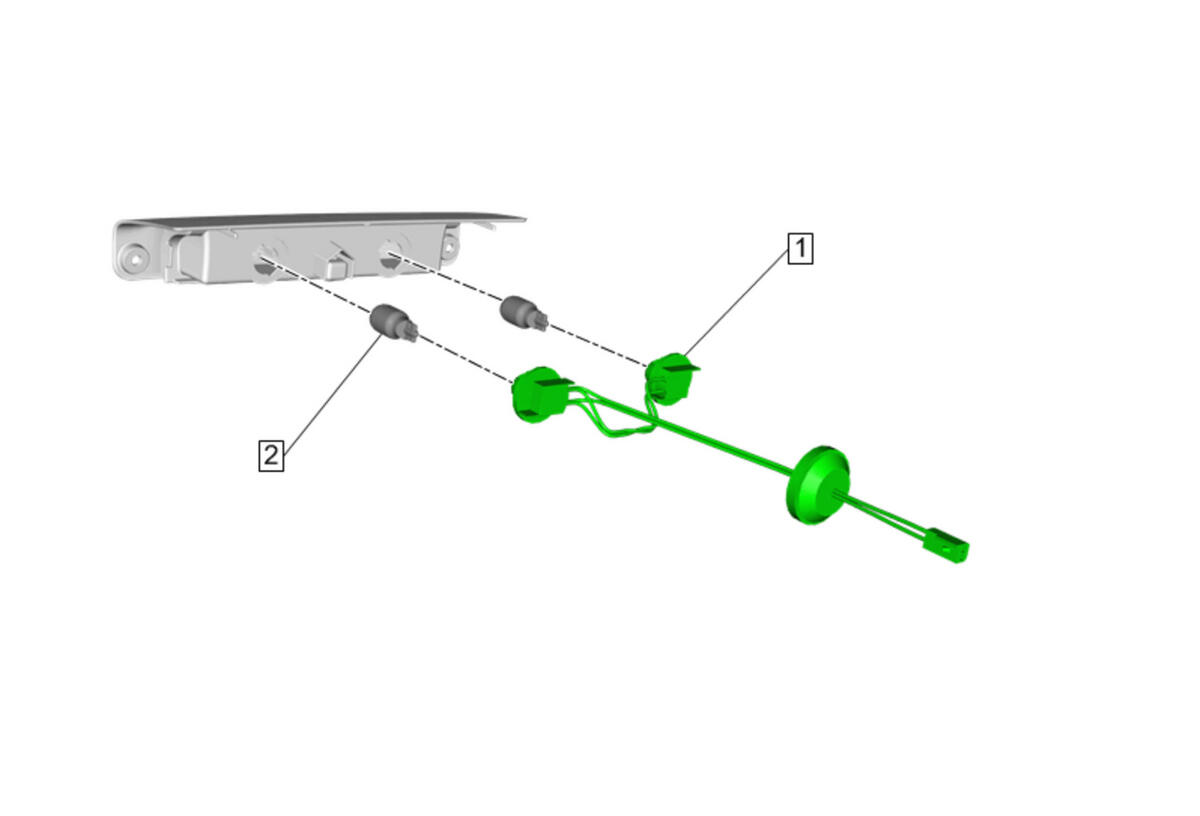

| Callout | Component Name |
|---|---|
| Preliminary Procedure High Mount Stop Lamp Replacement |
|
| 1 | High Mount Stop Lamp Bulb Socket [2x] Procedure Rotate the bulb socket a quarter turn counterclockwise and remove. |
| 2 | High Mount Stop Lamp Bulb [2x] Procedure Pull the bulb straight from the lamp socket. |
