Headlamp Switch Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY


Preliminary Procedure Remove the left side instrument panel knee bolster. Instrument Panel Knee Bolster Replacement (Left Side) , or Instrument Panel Knee Bolster Replacement (Right Side)

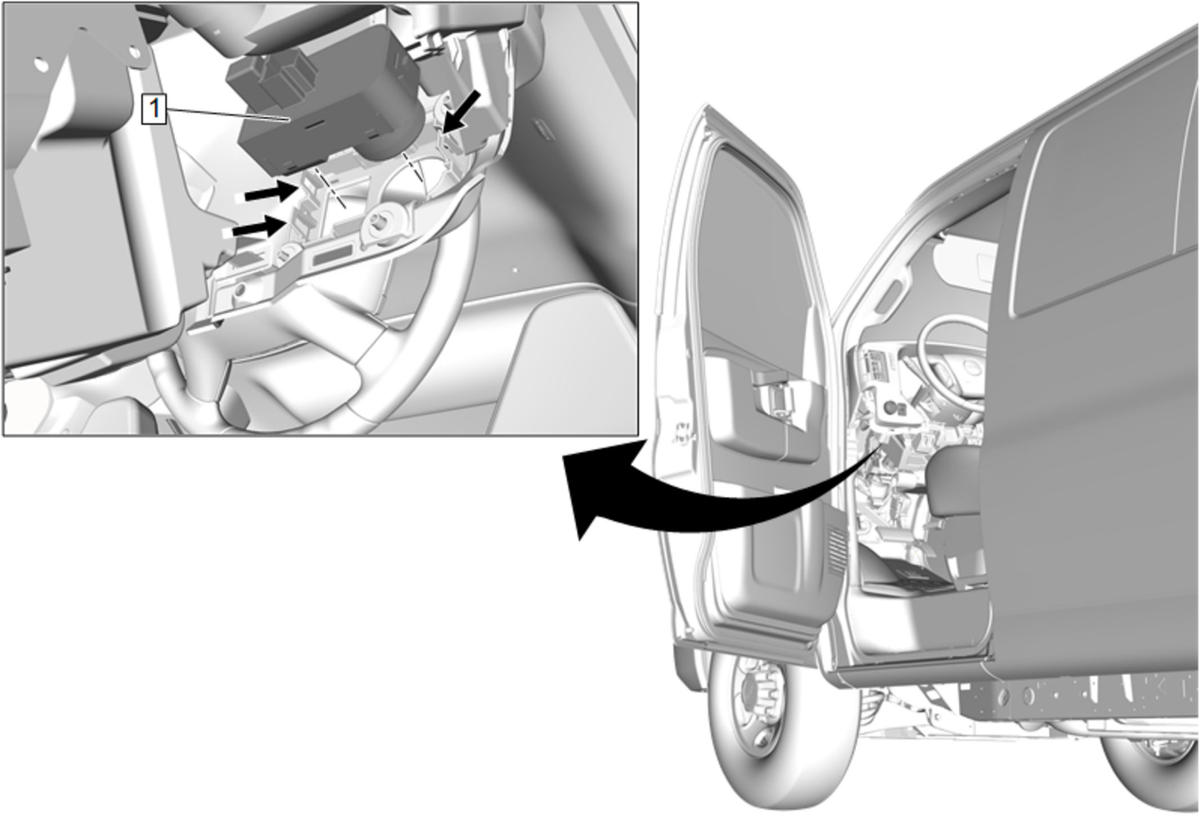

1	Headlamp Switch Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove the left side instrument panel knee bolster. Instrument Panel Knee Bolster Replacement (Left Side) , or Instrument Panel Knee Bolster Replacement (Right Side)

Headlamp Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
