Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition OFF and remove the ignition key.
  2. Electrical Connector @ Brake Pedal Position Sensor - Disconnect

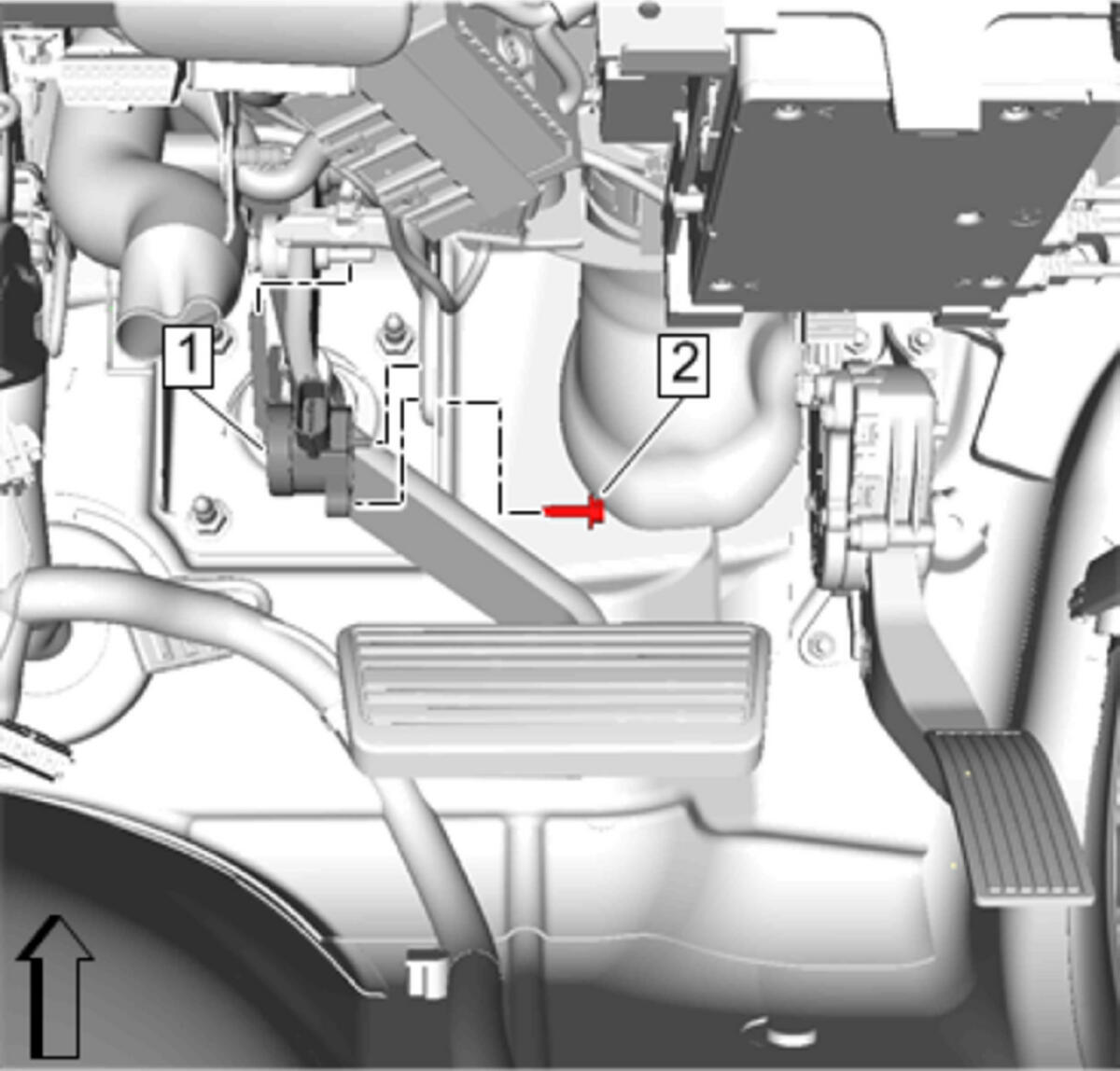

  3. GM4855839Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Position Sensor Bolt (2) - Remove

  4. Brake Pedal Position Sensor (1) - Remove
