Backup Bulb Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

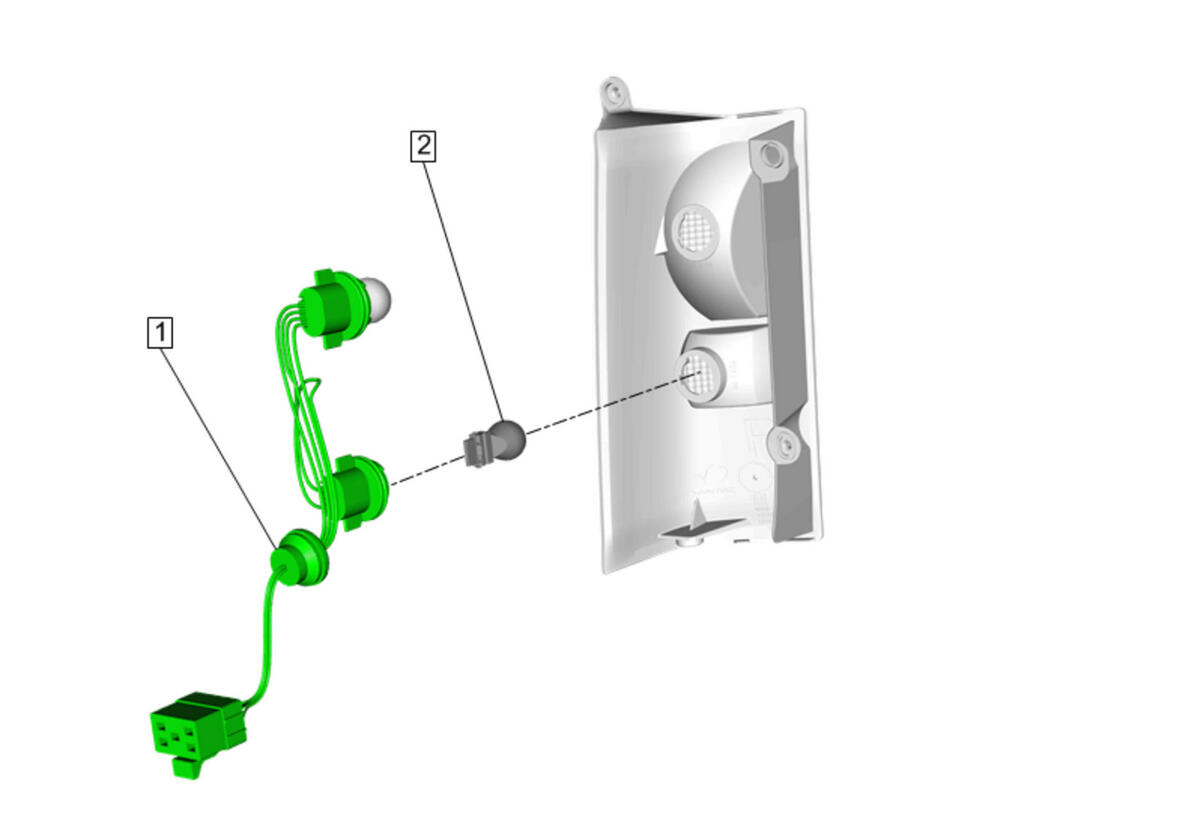

| Callout | Component Name |
|---|---|
| Preliminary Procedure Tail Lamp Replacement |
|
| 1 | Tail Lamp Wiring Harness Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. |
| 2 | Backup Lamp Bulb Procedure Pull the bulb from the bulb socket. |
