Seat Belt Height Adjuster Replacement - Front
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

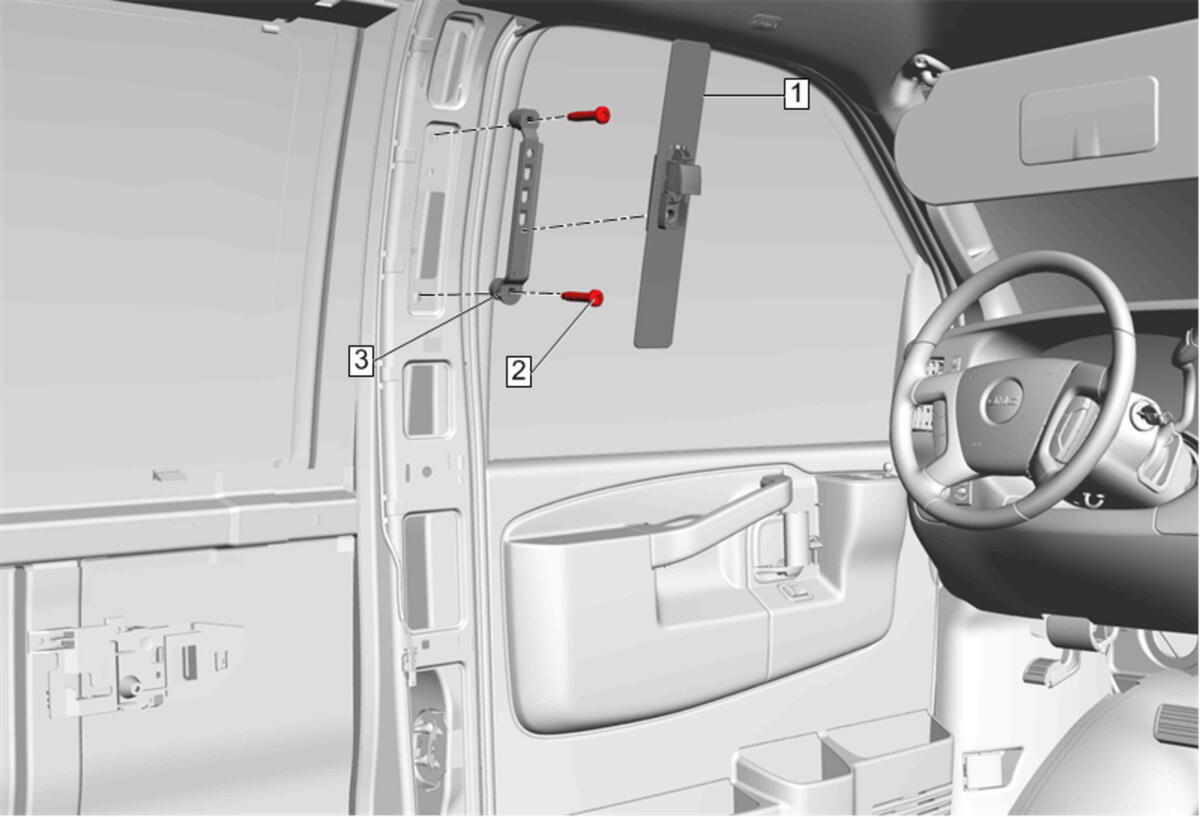

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the appropriate upper pillar garnish molding.
|
|
| 1 | Front Seat Belt Adjuster Cover |
| 2 | Seat Belt Height Adjuster Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 3 | Seat Belt Height Adjuster |
