Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Bench Seat - Remove - Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)

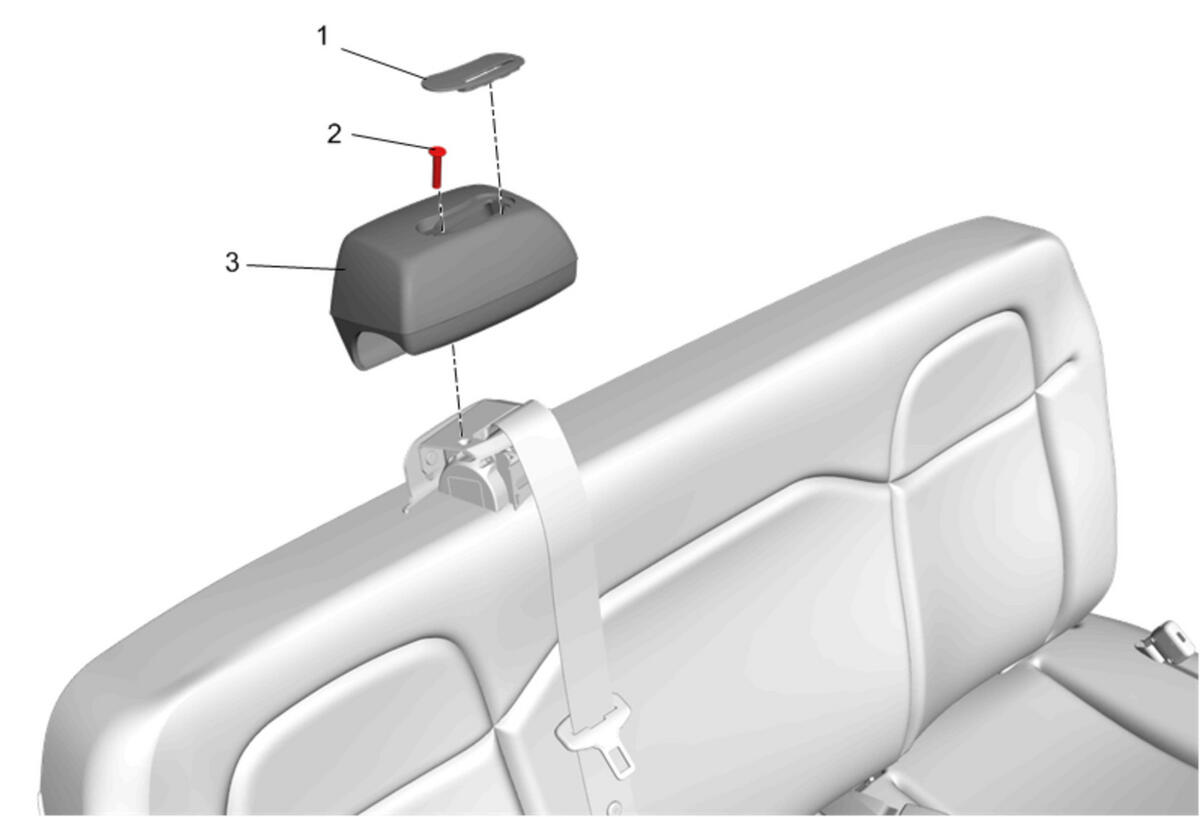

  2. GM4854873Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Retractor Housing Bezel (1) - Remove

  3. Rear Seat Retractor Housing Screw (2) - Remove
  4. Rear Seat Retractor Housing (3) - Remove

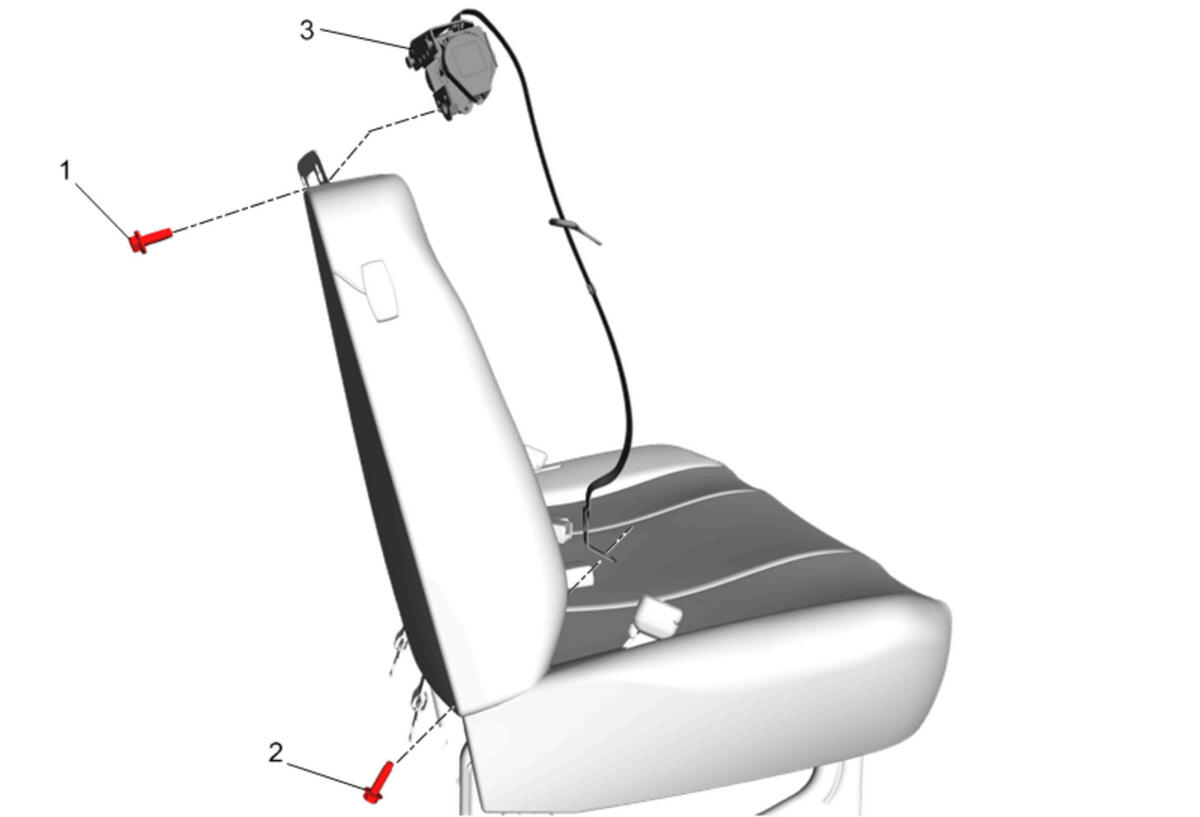

  5. GM4854874Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Retractor Bolt - Upper (1) - Remove

  6. Rear Seat Retractor Bolt - Lower (2) - Remove
  7. Rear Seat Center Retractor Side Belt (3) - Remove
