Rear Seat Buckle Side Belt Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

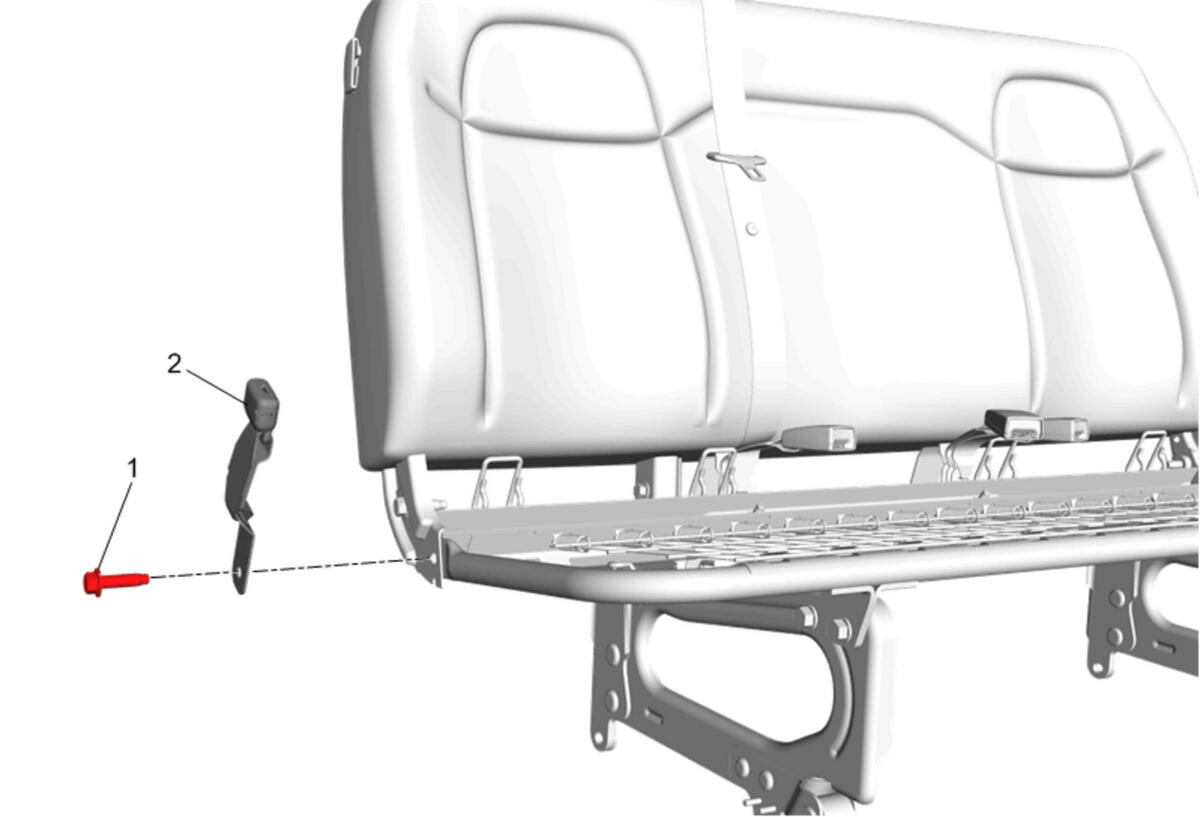

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the rear seat cushion cover and pad. Rear Seat Cushion Cover and Pad Replacement |
|
| 1 | Rear Seat Cushion Frame Bolt
CAUTION:
Refer to Fastener Caution . Tighten 75 N.m (55 lb ft) |
| 2 | Rear Seat Buckle Side Belt |
