Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

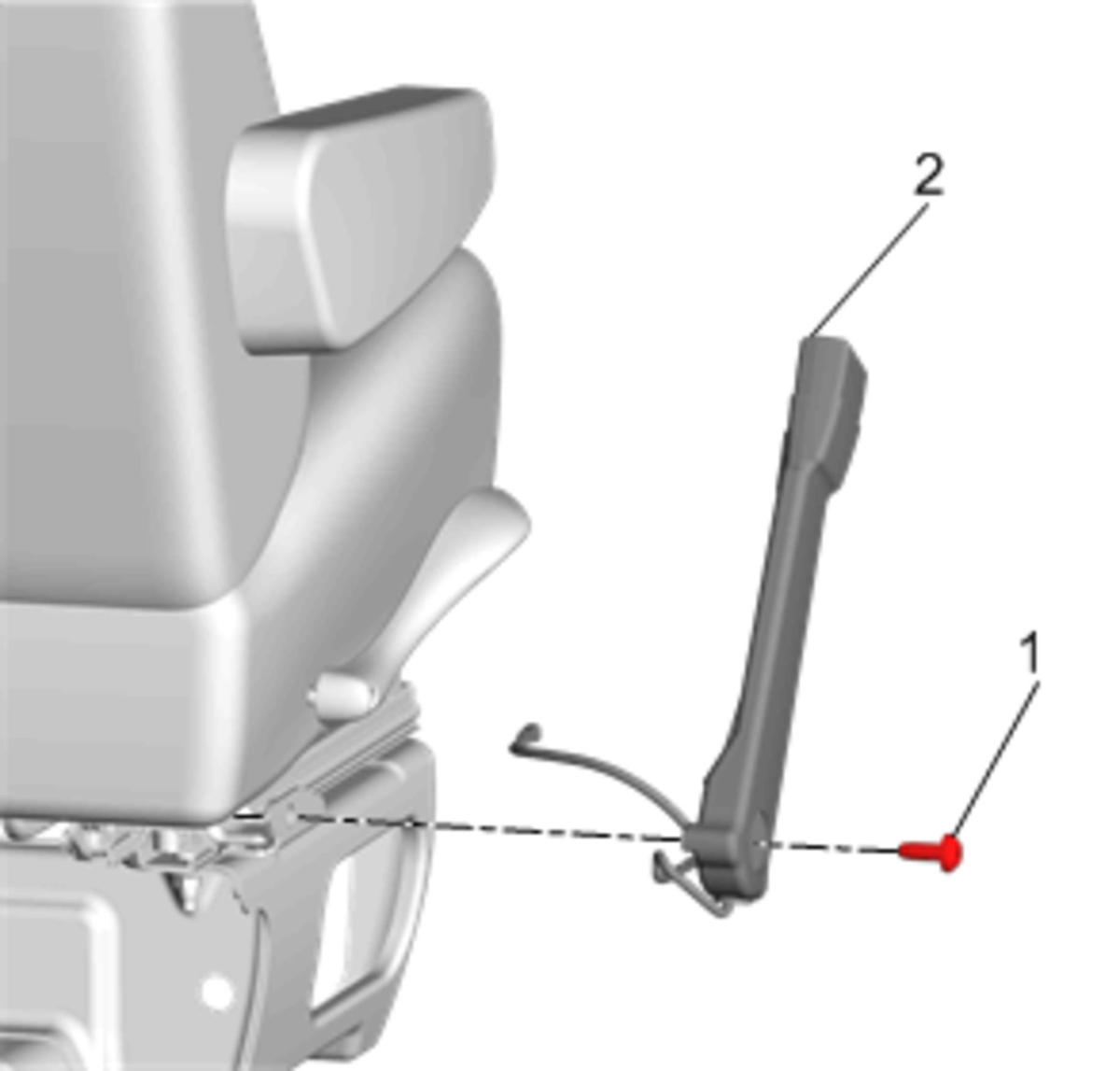

  1. GM4182580Courtesy of GENERAL MOTORS COMPANY

    Remove seat belt bolt cover.

  2. Remove the seat belt buckle retaining bolt (1) from the seat.
  3. Disconnect the electrical connector from the seat belt buckle, if equipped.
  4. Remove the seat belt buckle (2) from the seat.
