Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Install the seat belt buckle (2) to the seat.

CAUTION:

Refer to Fastener Caution .

Install the seat belt buckle retaining bolt to the seat and tighten to 52 N.m (38 lb ft).
Install seat belt bolt cover.
Courtesy of GENERAL MOTORS COMPANY

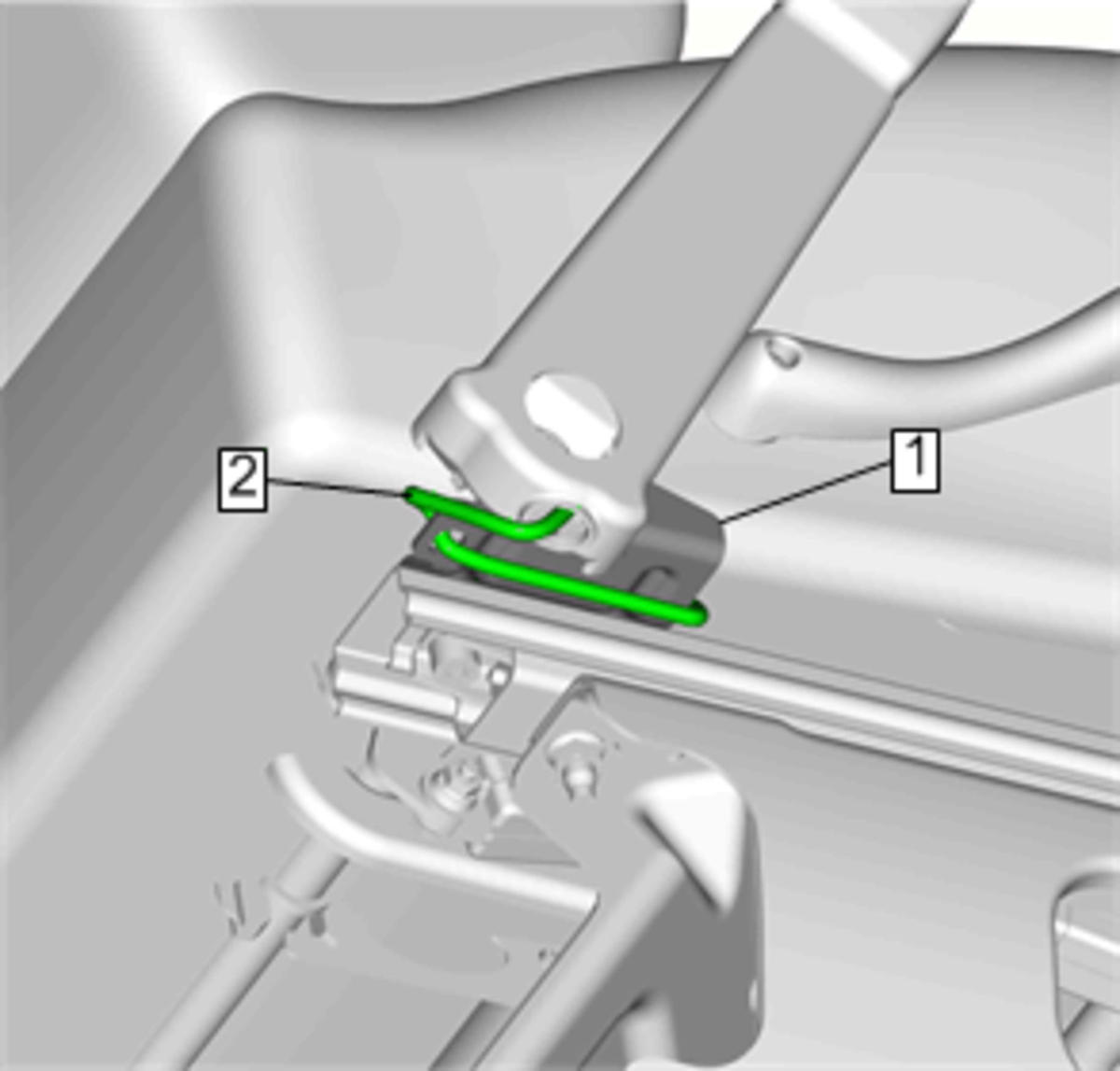

Route the wiring harness (2) through the hole in the mounting bracket (1) from top to bottom. The harness will run parallel to the adjuster track, and in front of the mounting bracket (1).
Connect the electrical connector to the seat harness.
