Radio Rear Speaker Replacement - Upper
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

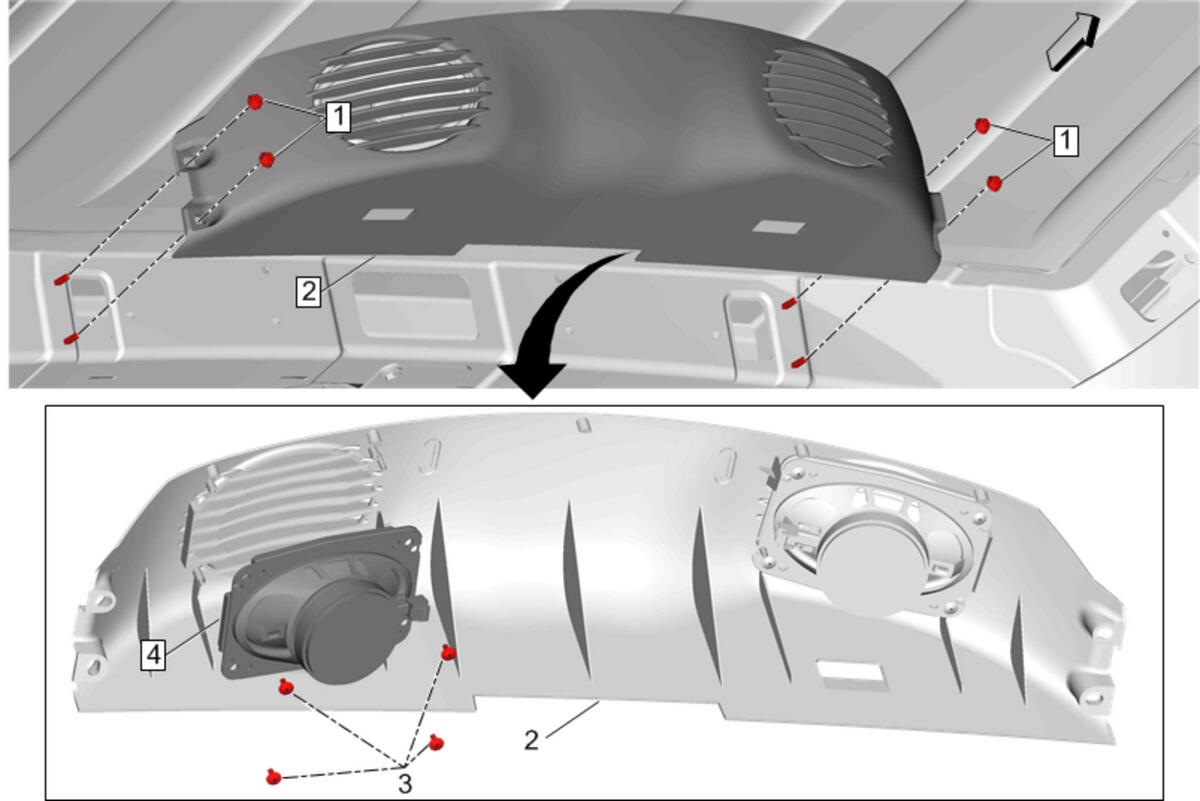

| Callout | Component Name |
|---|---|
| Preliminary Procedure Back Body Opening Garnish Molding Replacement |
|
| 1 | Radio Rear Speaker Housing Nut [4x]
CAUTION:
Tighten 6N.m (53 lb in) |
| 2 | Radio Rear Speaker Housing Procedure Disconnect the electrical connectors. |
| 3 | Radio Rear Speaker Bolt [4x] Tighten 2N.m (18 lb in) |
| 4 | Radio Rear Speaker |
