Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Attach the mechanics wire to the new radio antenna cable and guide in.

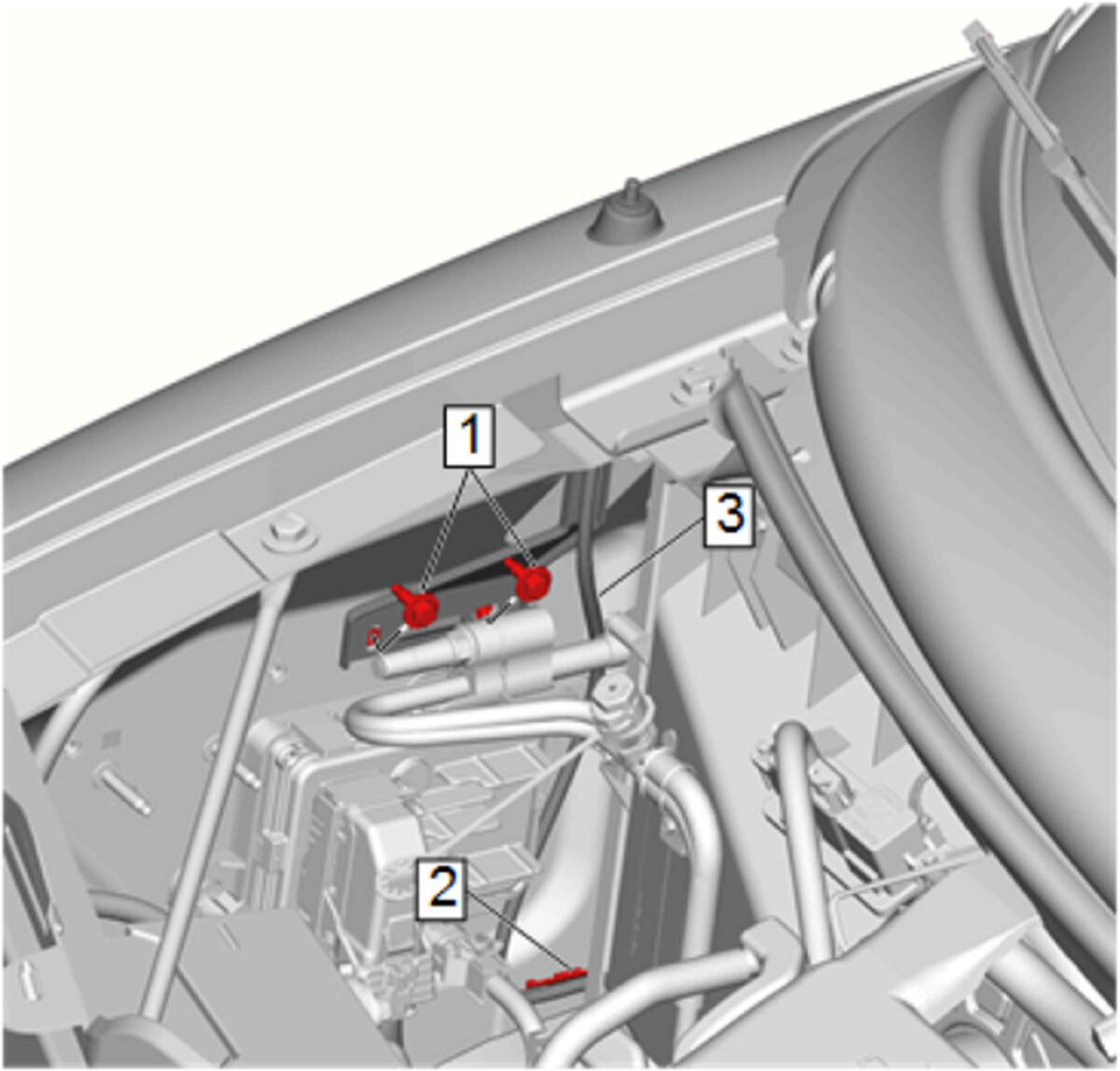

- Retainer (3) Install
- Radio Antenna Base Bolt (2) - Install and tighten [2x] 9N.m (80 lb in)
- Radio Antenna Bezel (1) - Install

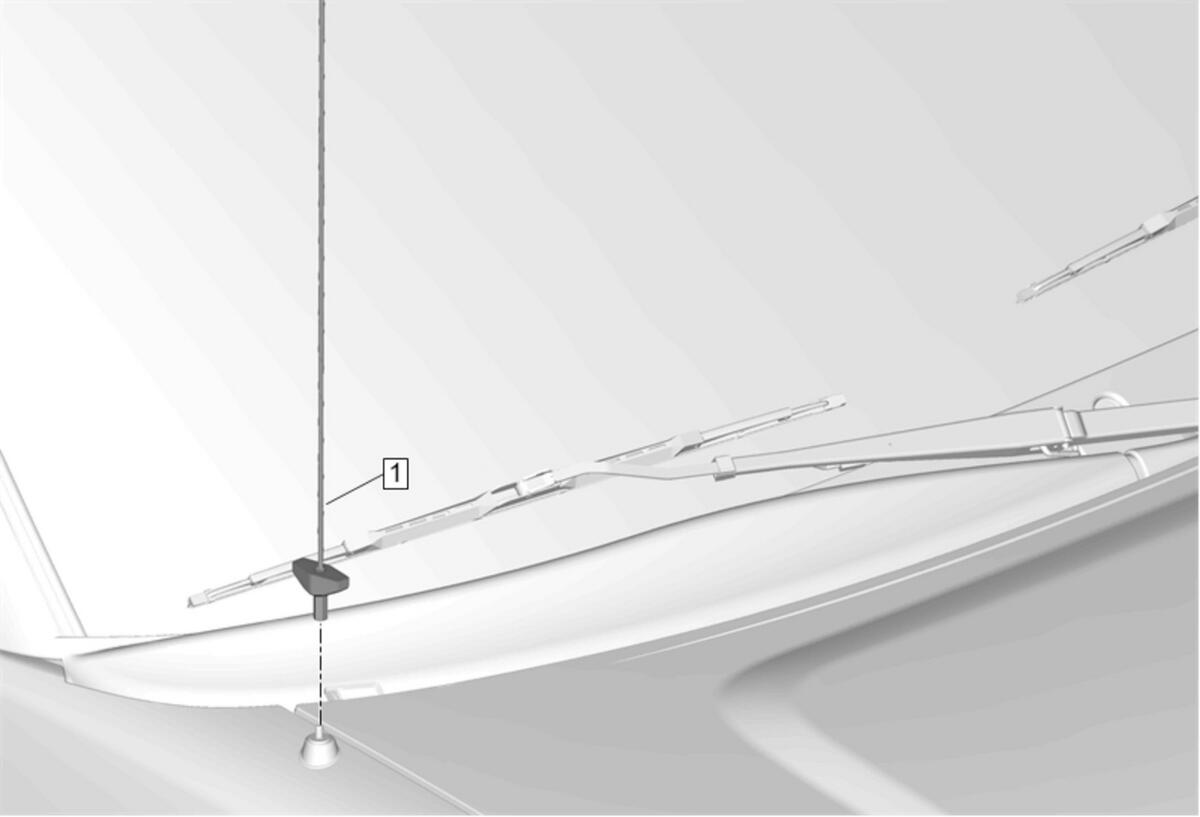

Radio Antenna (1) - Install - Radio Antenna Replacement

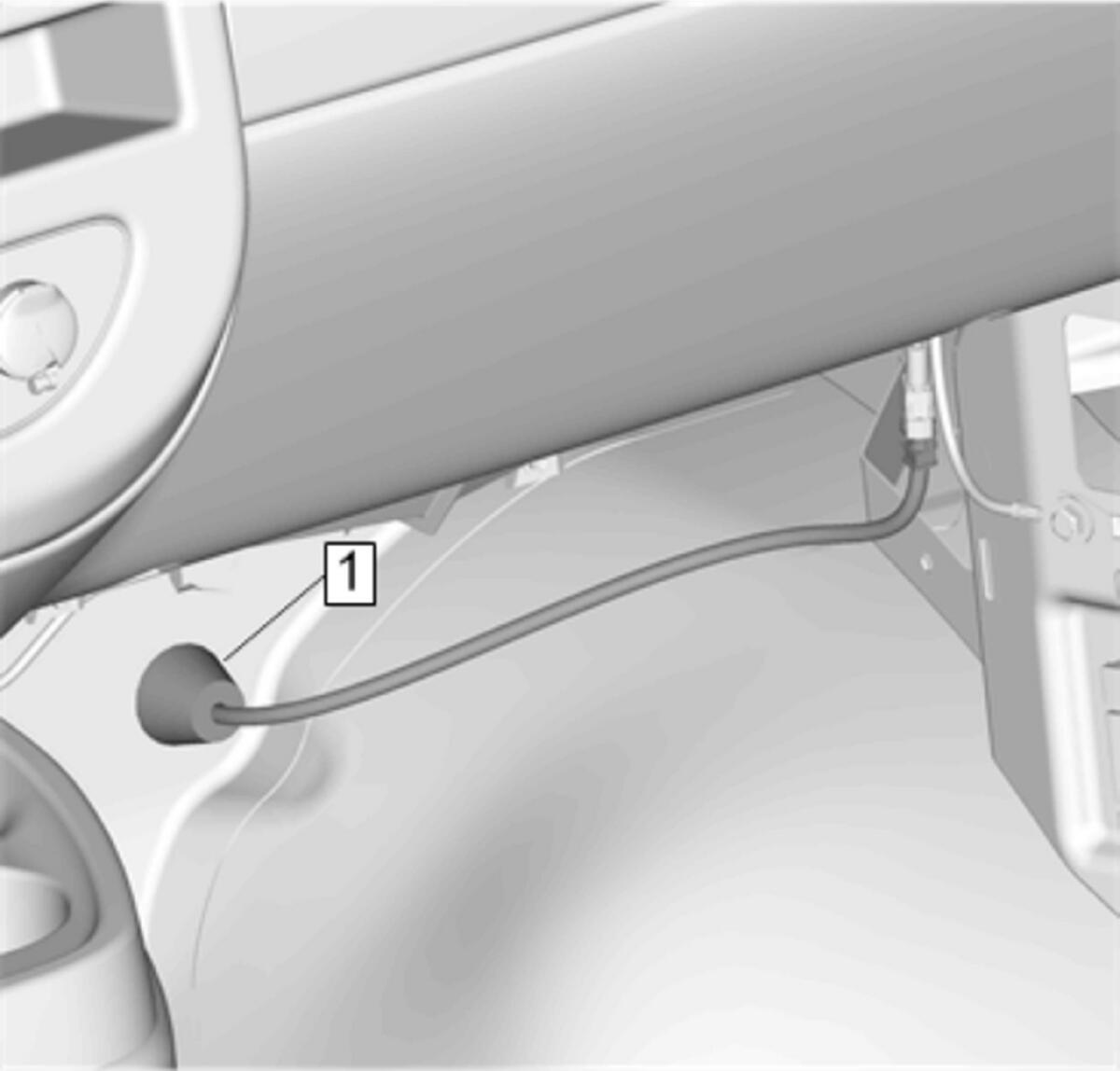

Radio Antenna Cable Grommet (1) - Install
- Connect the electrical connector.
- Front Floor Panel Carpet - Install
Body Hinge Pillar Garnish Molding-Right Side (1) - Install - Body Hinge Pillar Trim Panel Replacement
