Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

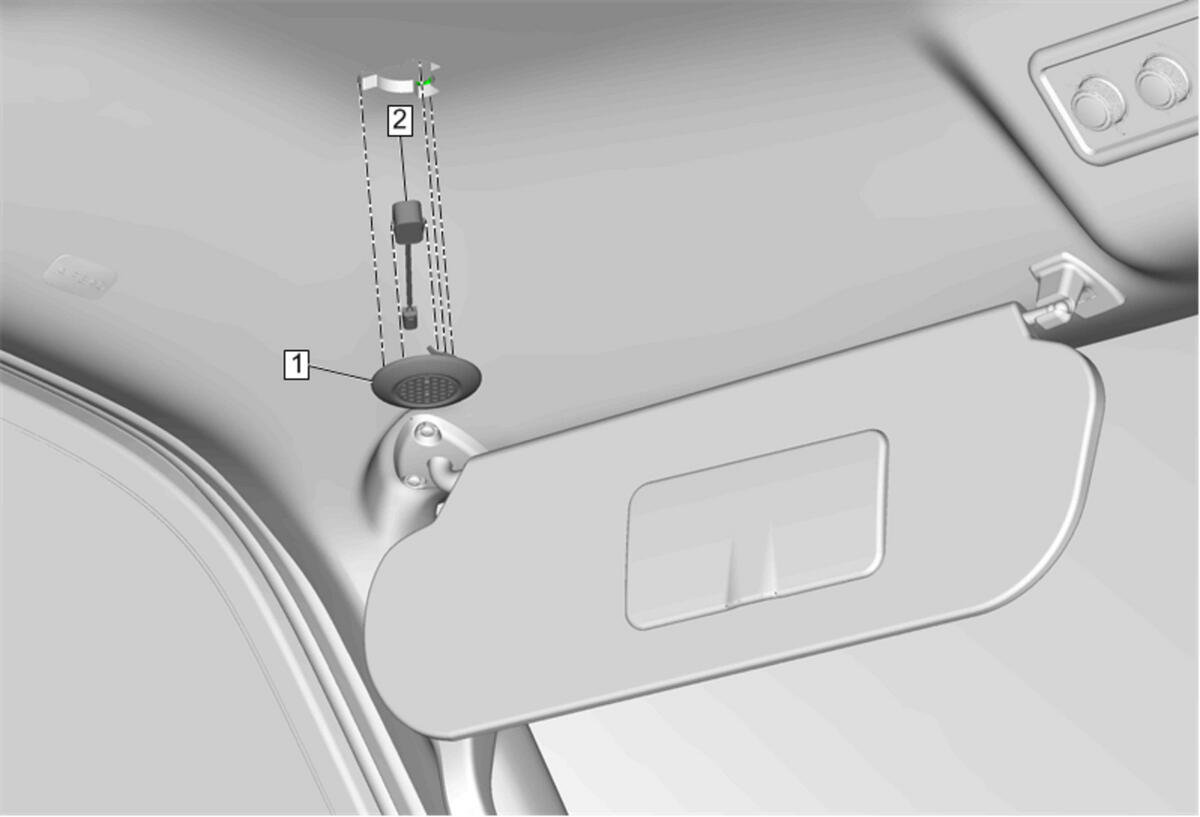

GM4842024Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mobile Telephone Microphone Bezel

Procedure

  1. Unlock the retaining tabs.
  2. Use a suitable tool.
2 Mobile Telephone Microphone

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
