Digital Radio, Mobile Telephone, and Vehicle Location Antenna Cable Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Radio Replacement Instrument Panel Upper Trim Panel Replacement It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Front Trim Panel Replacement

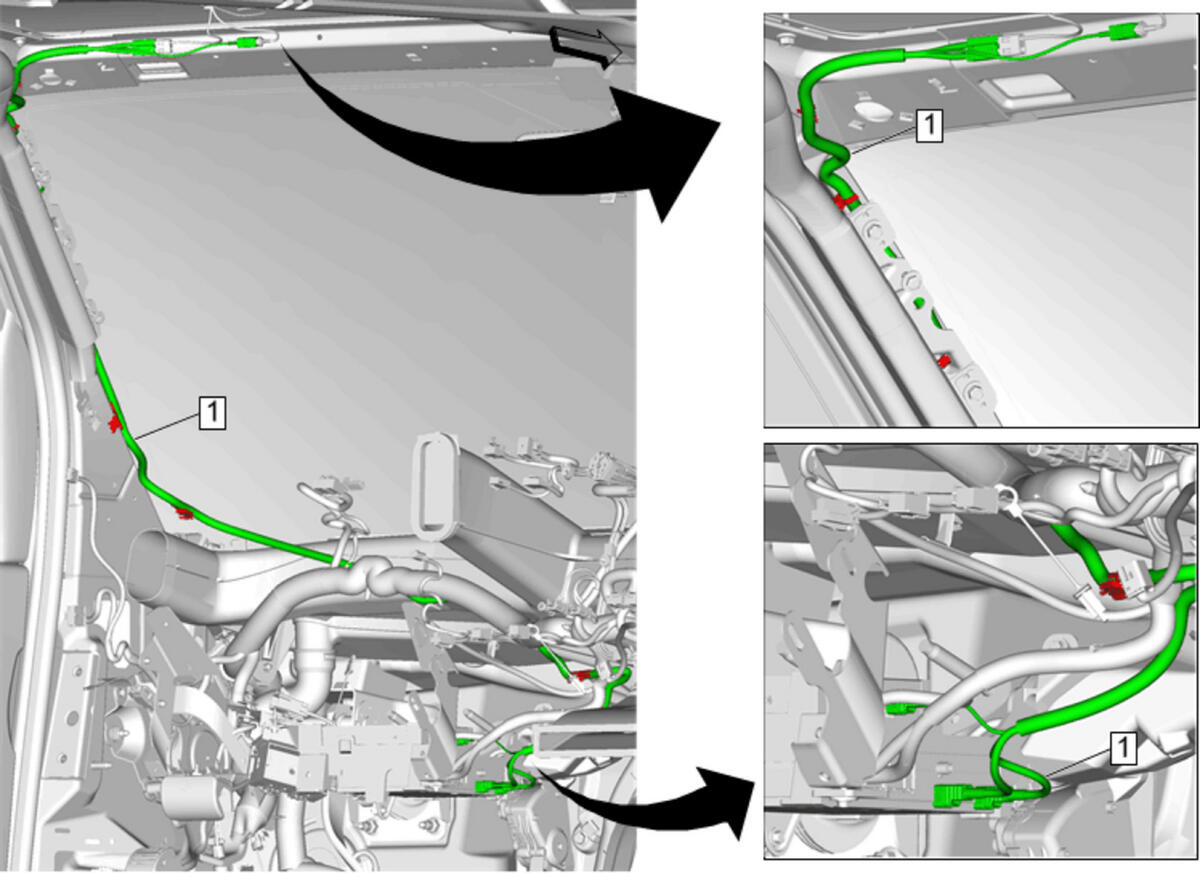

1	Digital Radio and Mobile Telephone and Vehicle Location Antenna Cable NOTE: Prior to removal, note the routing of the antenna cable to aid in reassembly and ensure proper installation. Procedure Disconnect the electrical connectors. Release the cable.

Callout

Component Name

Preliminary Procedures

Radio Replacement
Instrument Panel Upper Trim Panel Replacement
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Front Trim Panel Replacement

Digital Radio and Mobile Telephone and Vehicle Location Antenna Cable

NOTE:

Prior to removal, note the routing of the antenna cable to aid in reassembly and ensure proper installation.

Procedure

Disconnect the electrical connectors.
Release the cable.
