Communication Center Call Switch Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

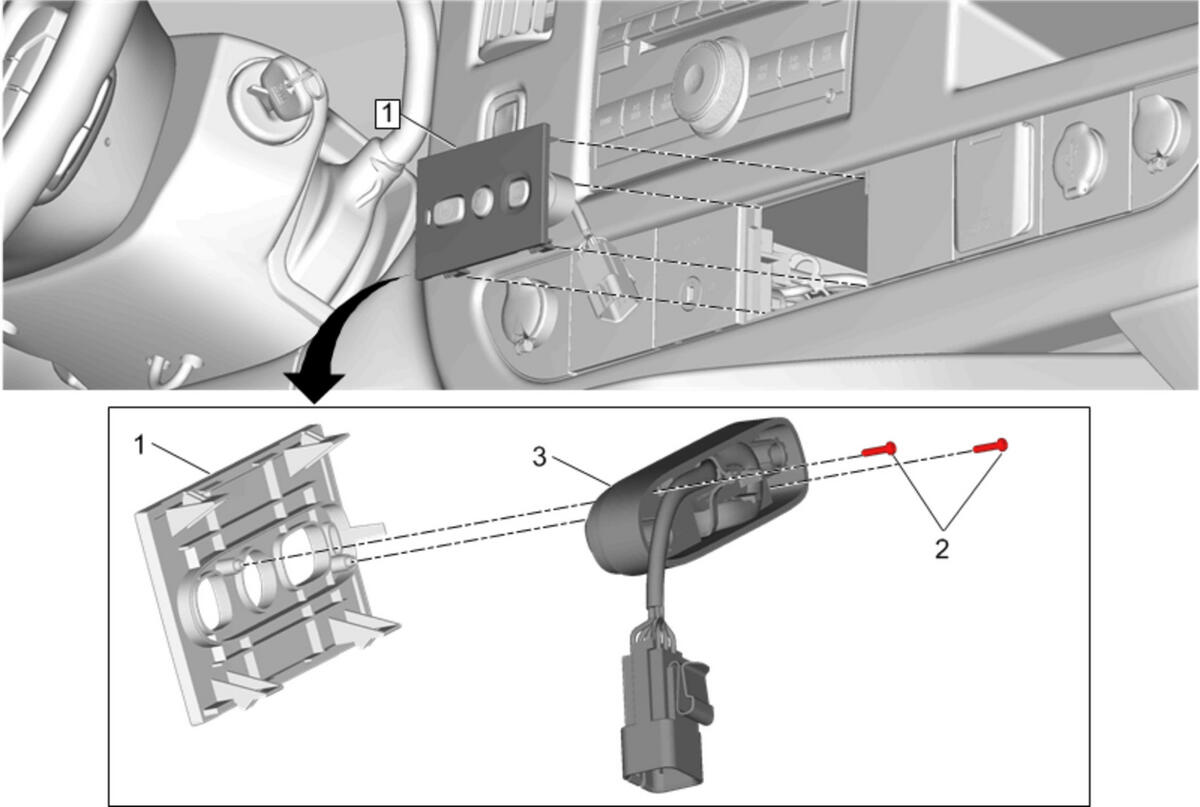

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Cover Replacement |
|
| 1 | Communication Center Call Switch Bezel |
| 2 | Communication Center Call Switch Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5N.m (22 lb in) |
| 3 | Communication Center Call Switch Procedure Disconnect the electrical connector. |
