Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)

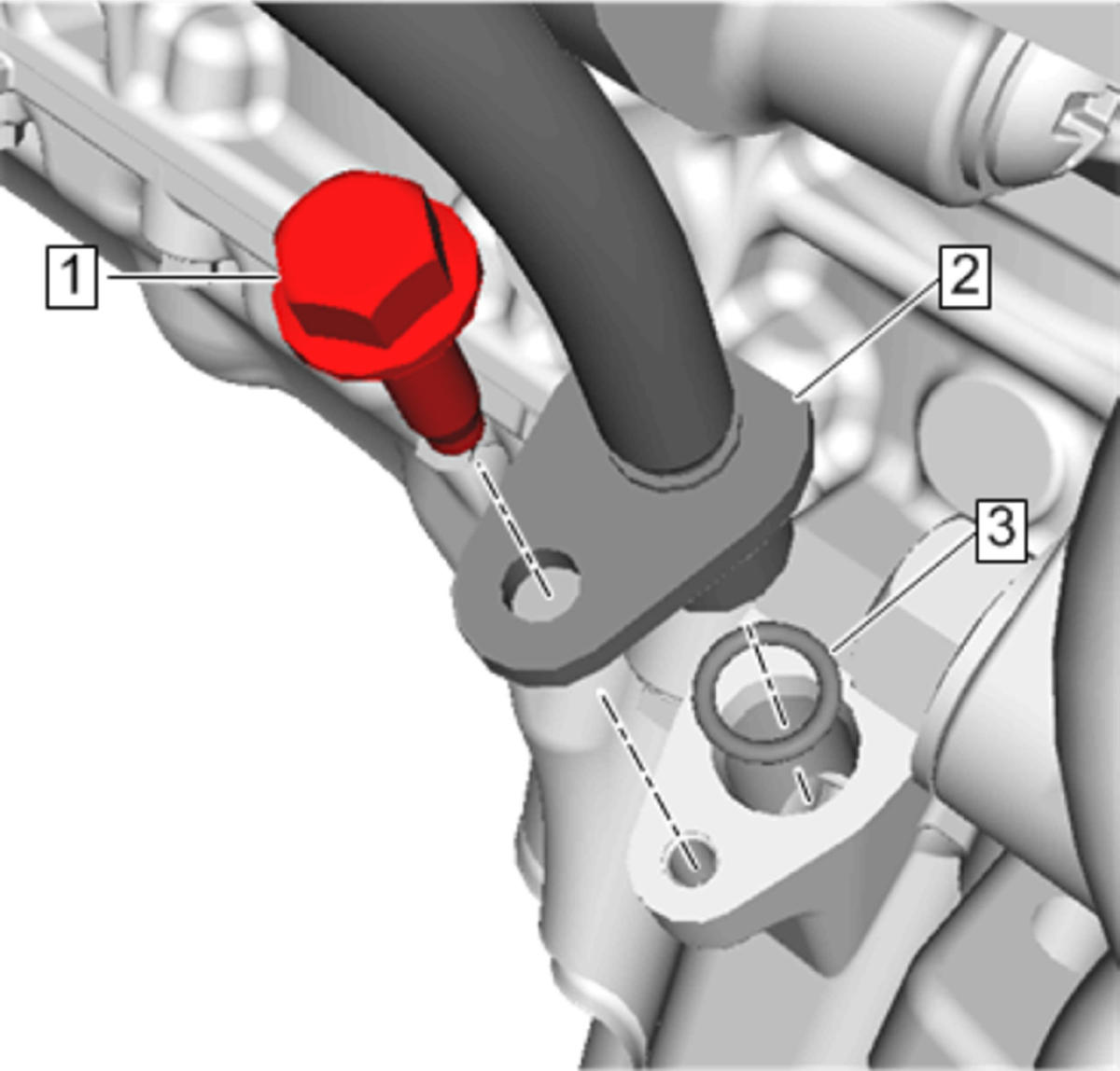

  2. GM4606700Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube(2) - Remove - Oil Level Indicator Tube Replacement

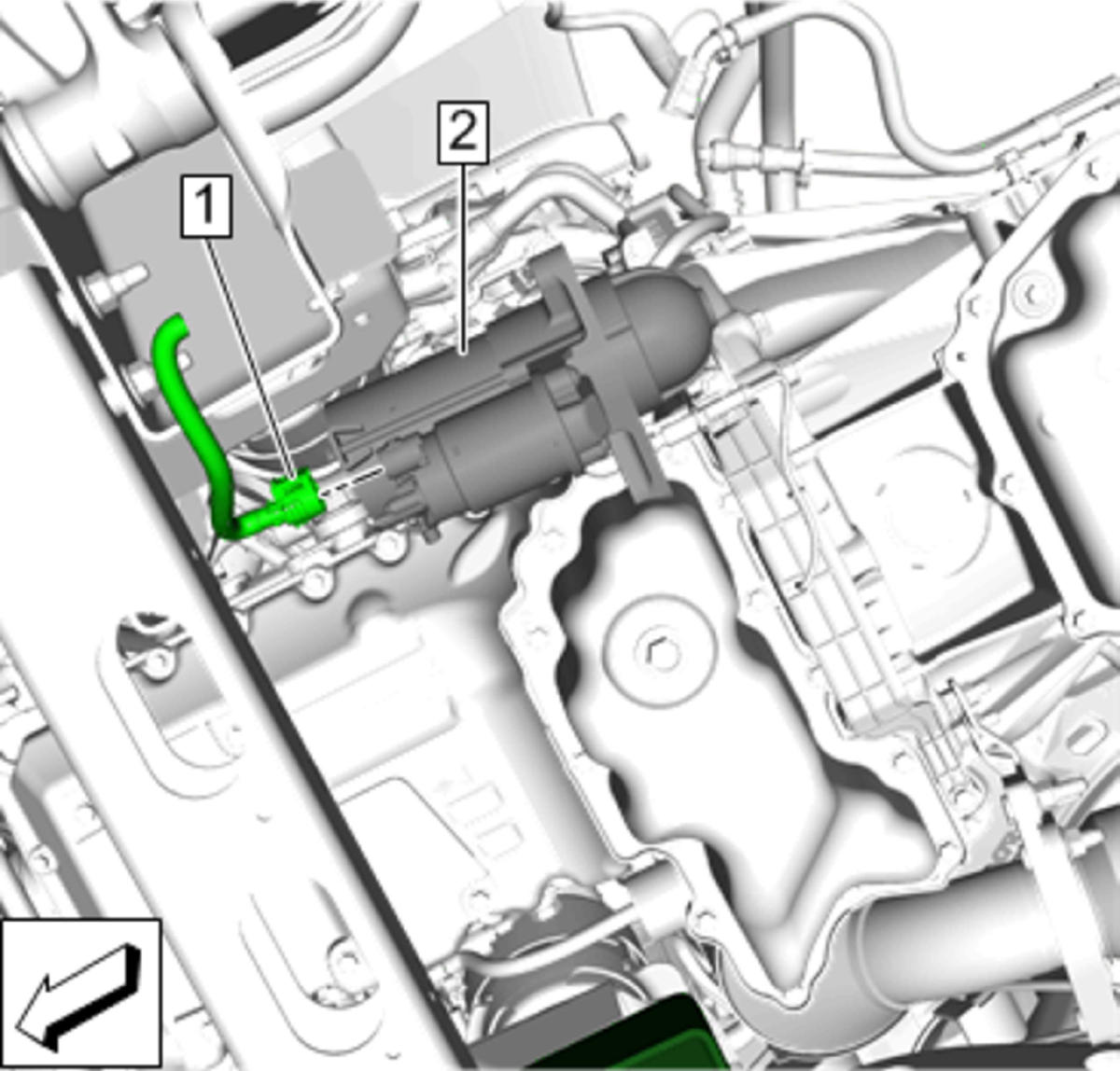

  3. GM4601985Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Disconnect

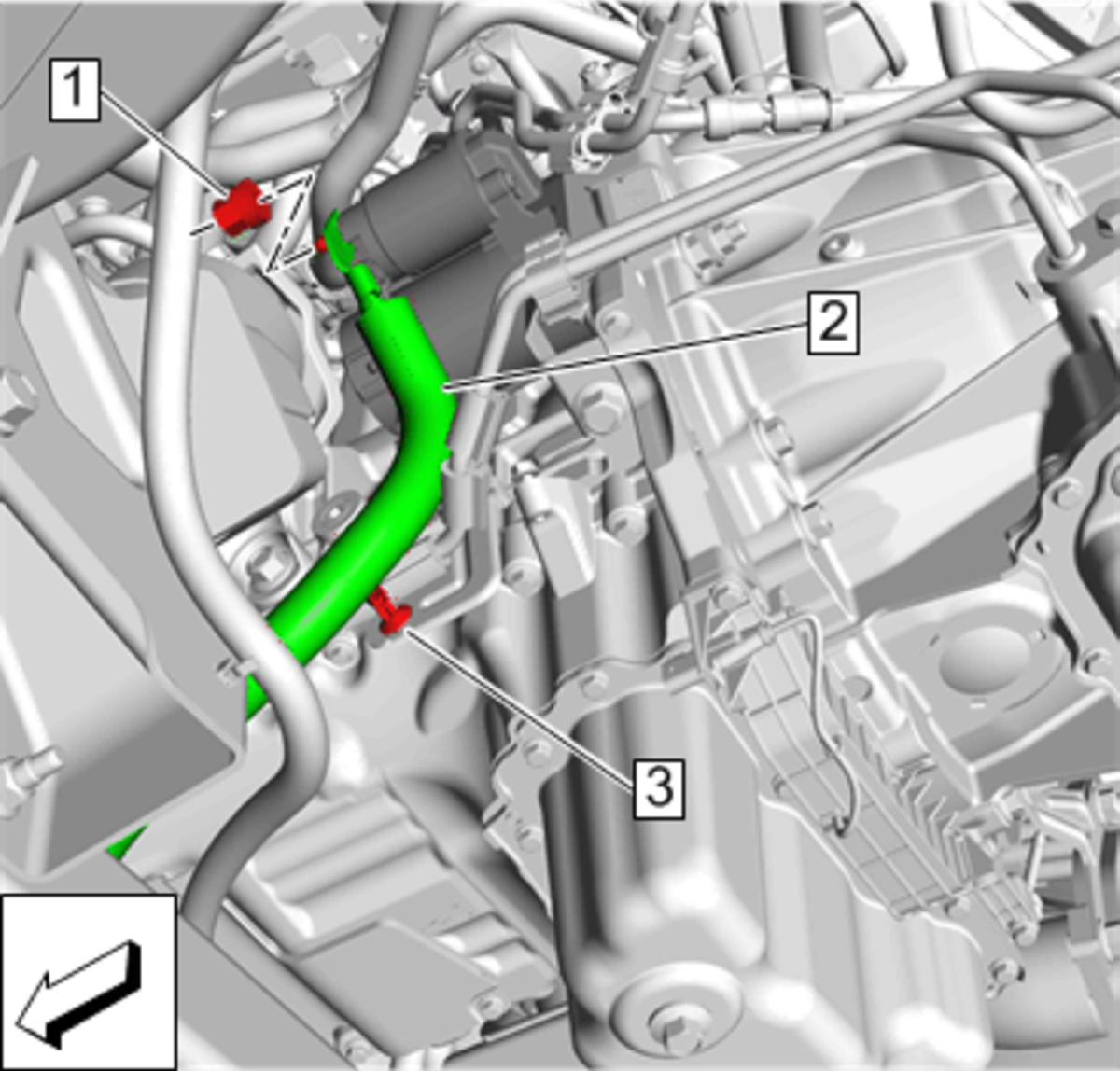

  4. GM4601976Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut(1) - Remove

  5. Retainer(3) - Disengage
  6. Battery Positive Cable(2) - Remove

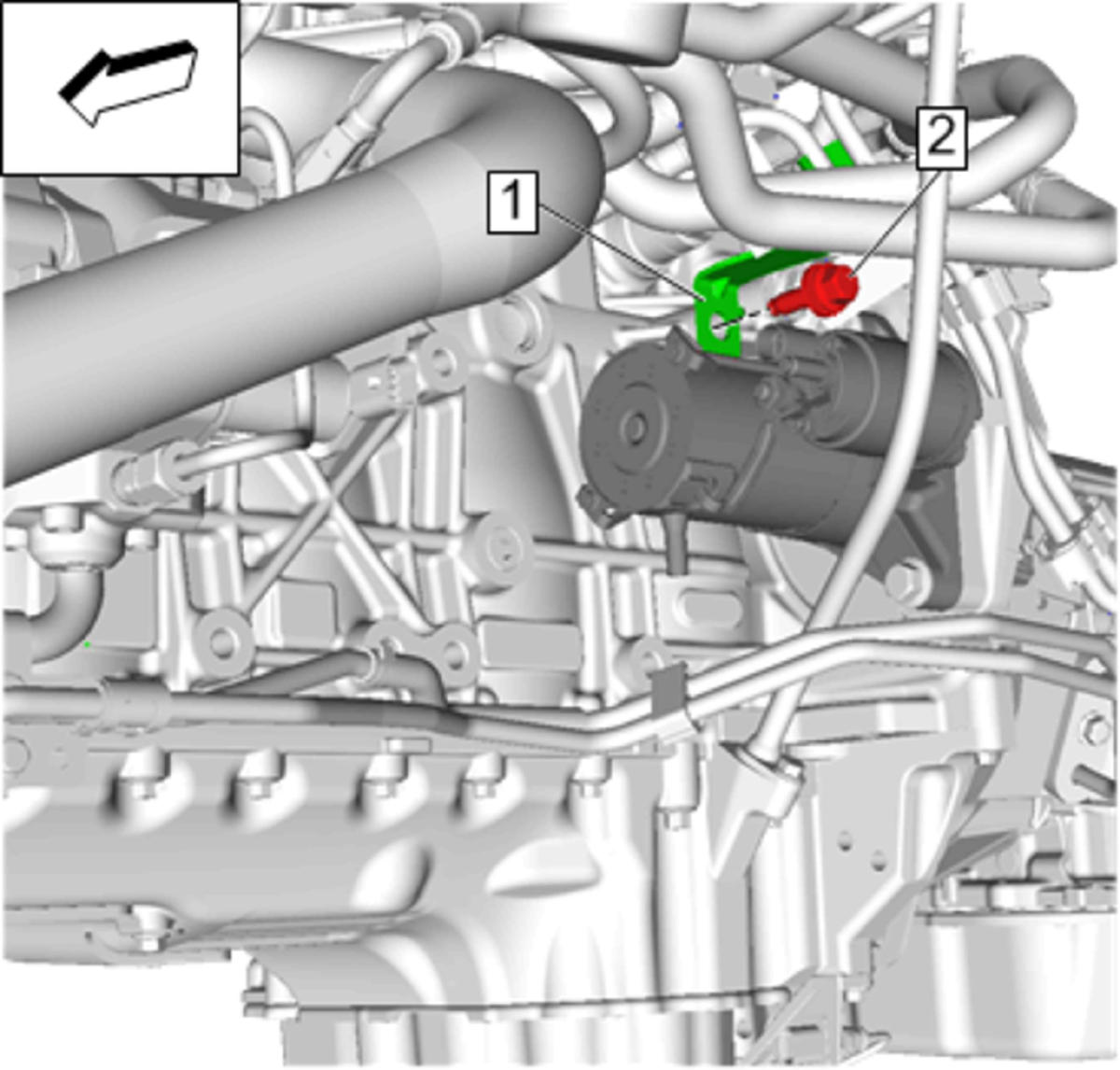

  7. GM4339363Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Pipe Bracket Bolt (2) - Remove

  8. Fuel Pump Fuel Feed Pipe Bracket (1) - Reposition away

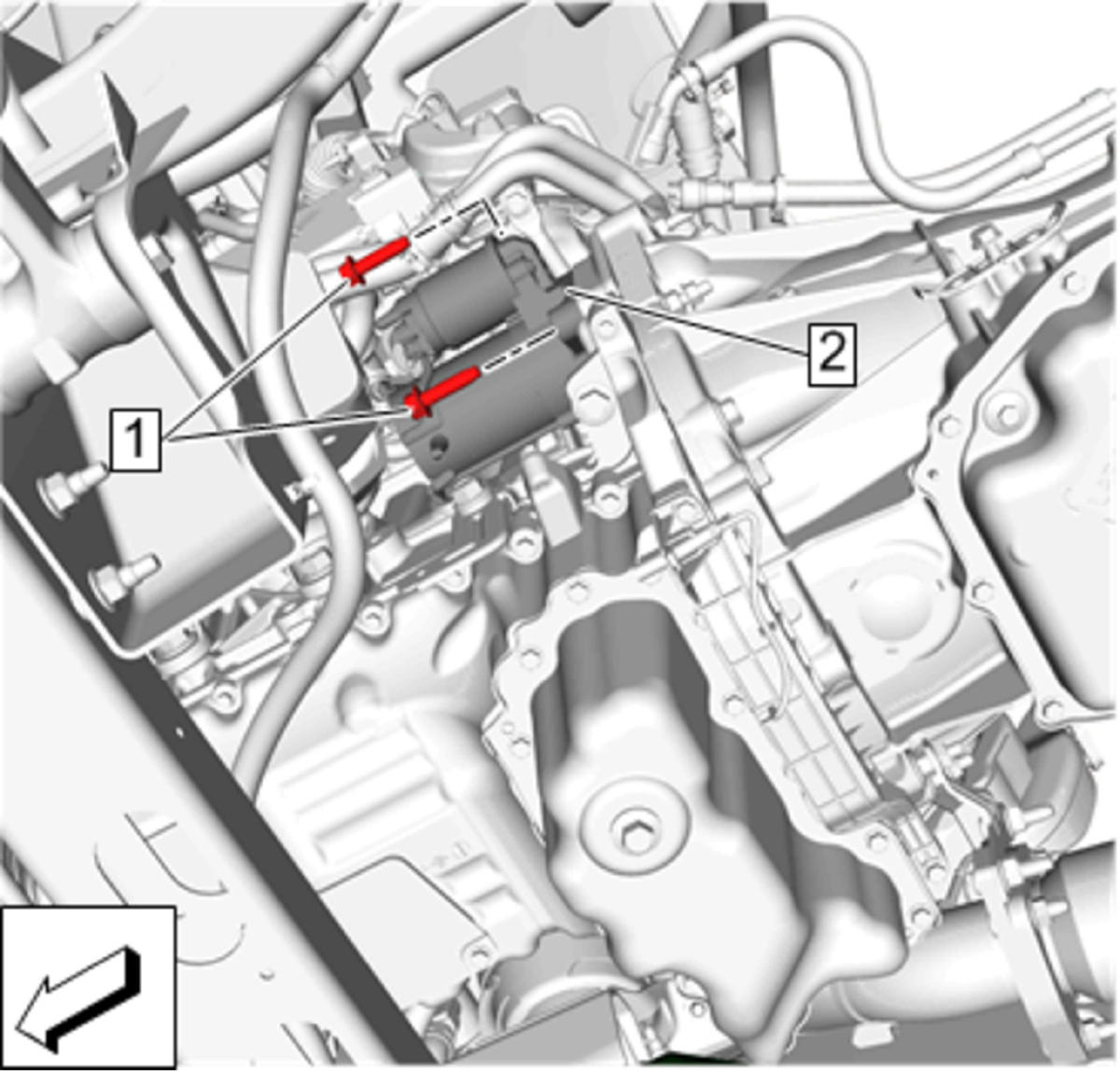

  9. GM4601983Courtesy of GENERAL MOTORS COMPANY

    Starter Bolt(1) - Remove[2x]

  10. Starter(2) - Remove
