Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

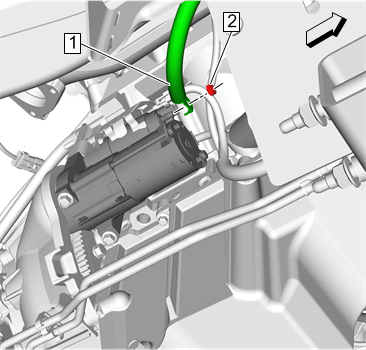

Battery Positive Cable Nut(2) - Remove
- Battery Positive Cable(1) - Remove
Electrical Connector(2) - Disconnect

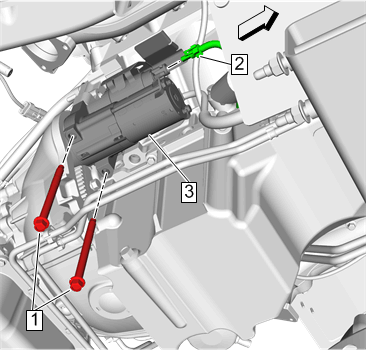

- Starter Bolt(1) - Remove[2x]
- Starter(3) - Remove

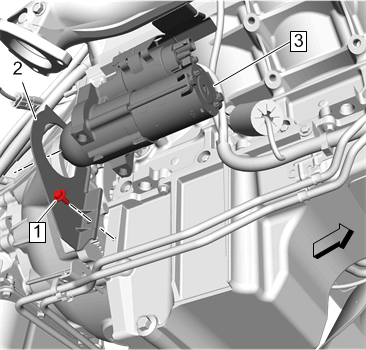

{ If equipped }Transmission Cover Bolt(1) - Remove
- Remove the starter (3) and the transmission cover (2), from the engine.
If necessary, remove the starter heat shield (2) from the starter solenoid (1).
