Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
Courtesy of GENERAL MOTORS COMPANY

Remove the accessory drive belt (1) from the generator pulley only. Drive Belt Replacement - Accessory
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir(1) - Remove - Coolant Recovery Reservoir Replacement (LV1)Coolant Recovery Reservoir Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Terminal Boot (1) - Remove
Battery Positive Cable Nut(2) - Remove
Battery Positive Cable(3) - Remove
Courtesy of GENERAL MOTORS COMPANY

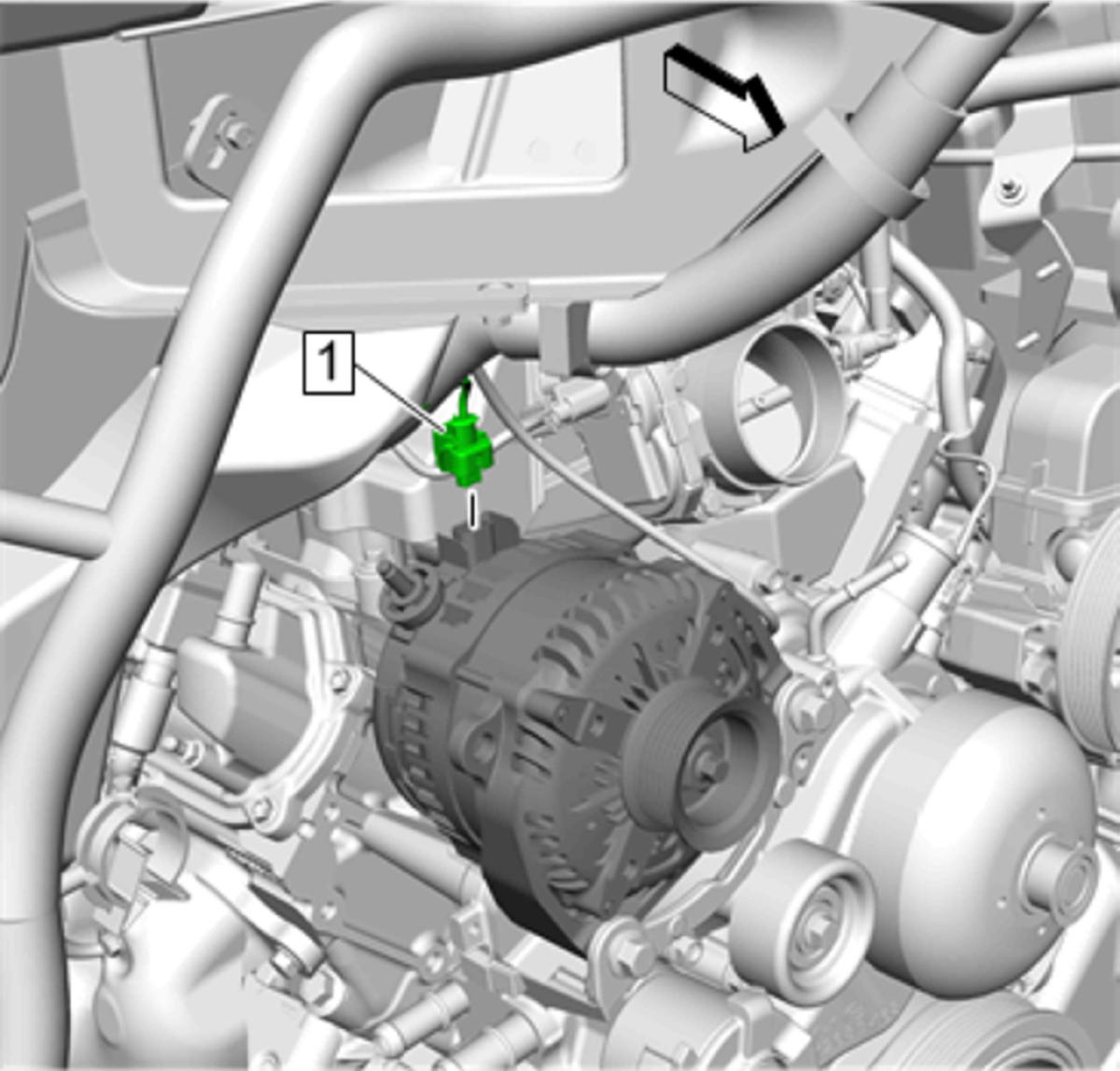

Electrical Connector(1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Radiator shroud is removed for graphic clarity.

Generator Mounting Bolt(2) - Remove[2x]
Generator(1) - Remove
