Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

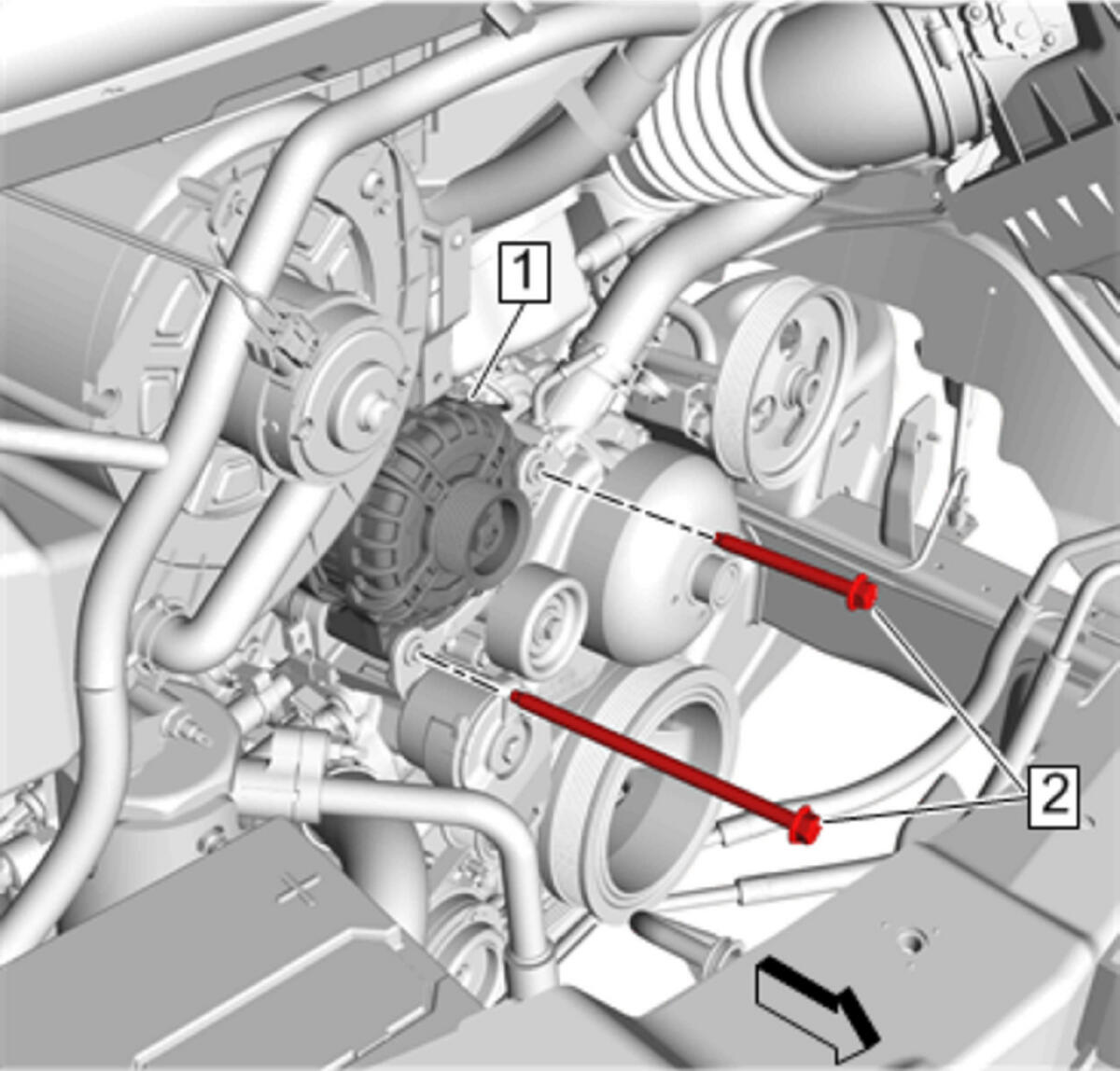

Generator(1) - Install
- Generator Mounting Bolt(2) - Install and tighten[2x] 58 N.m (43 lb ft)

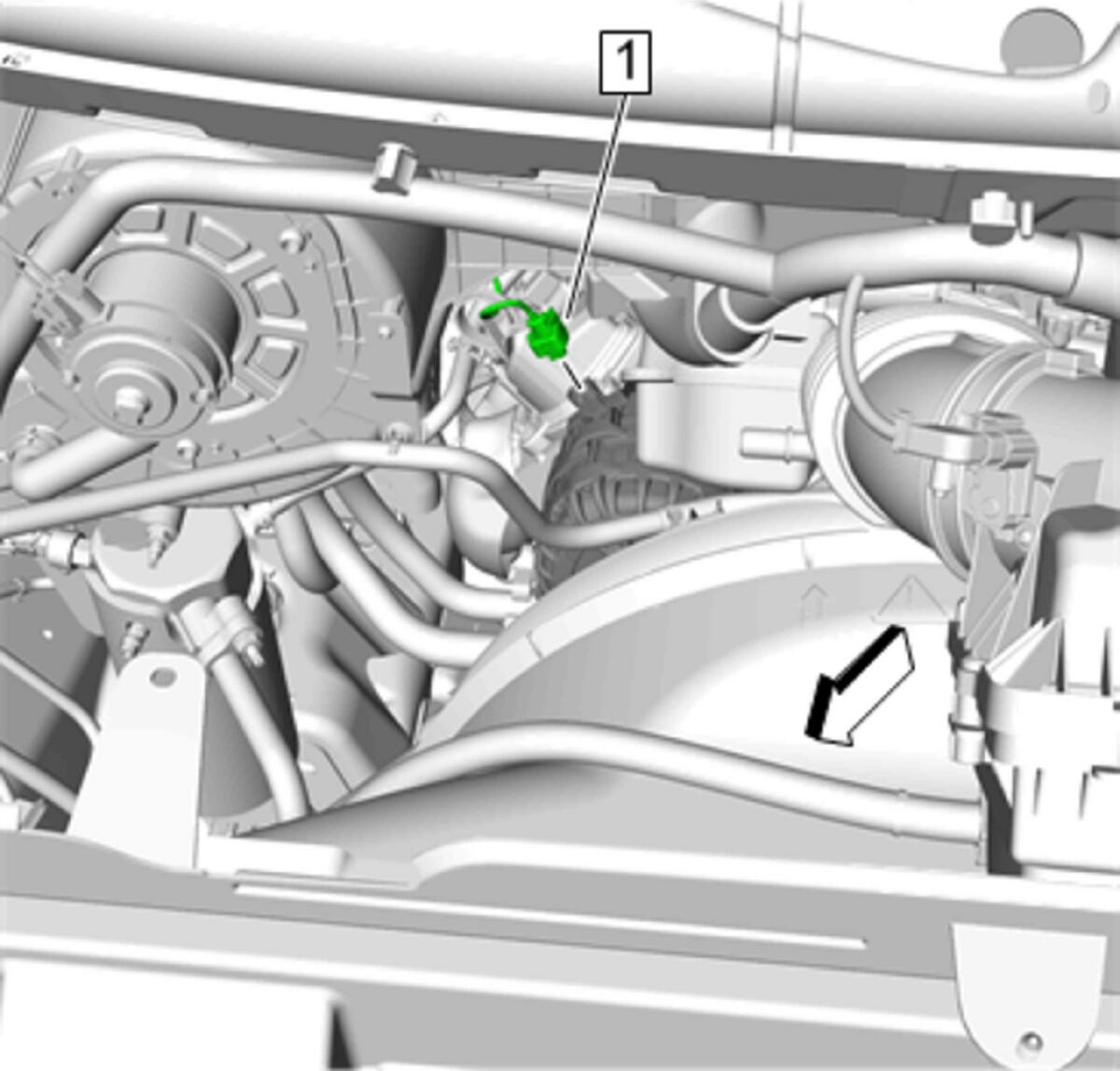

Electrical Connector(1) - Connect

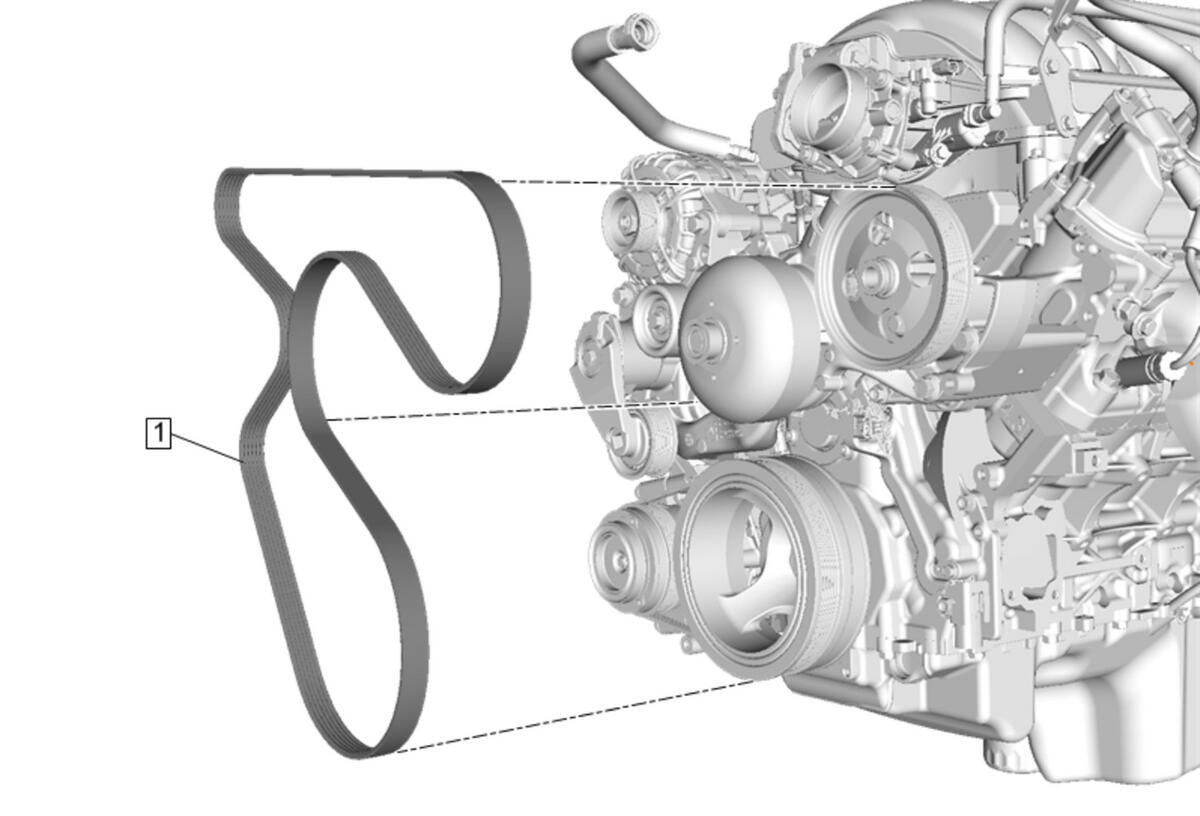

Install the accessory drive belt (1) to the generator pulley. Drive Belt Replacement - Accessory

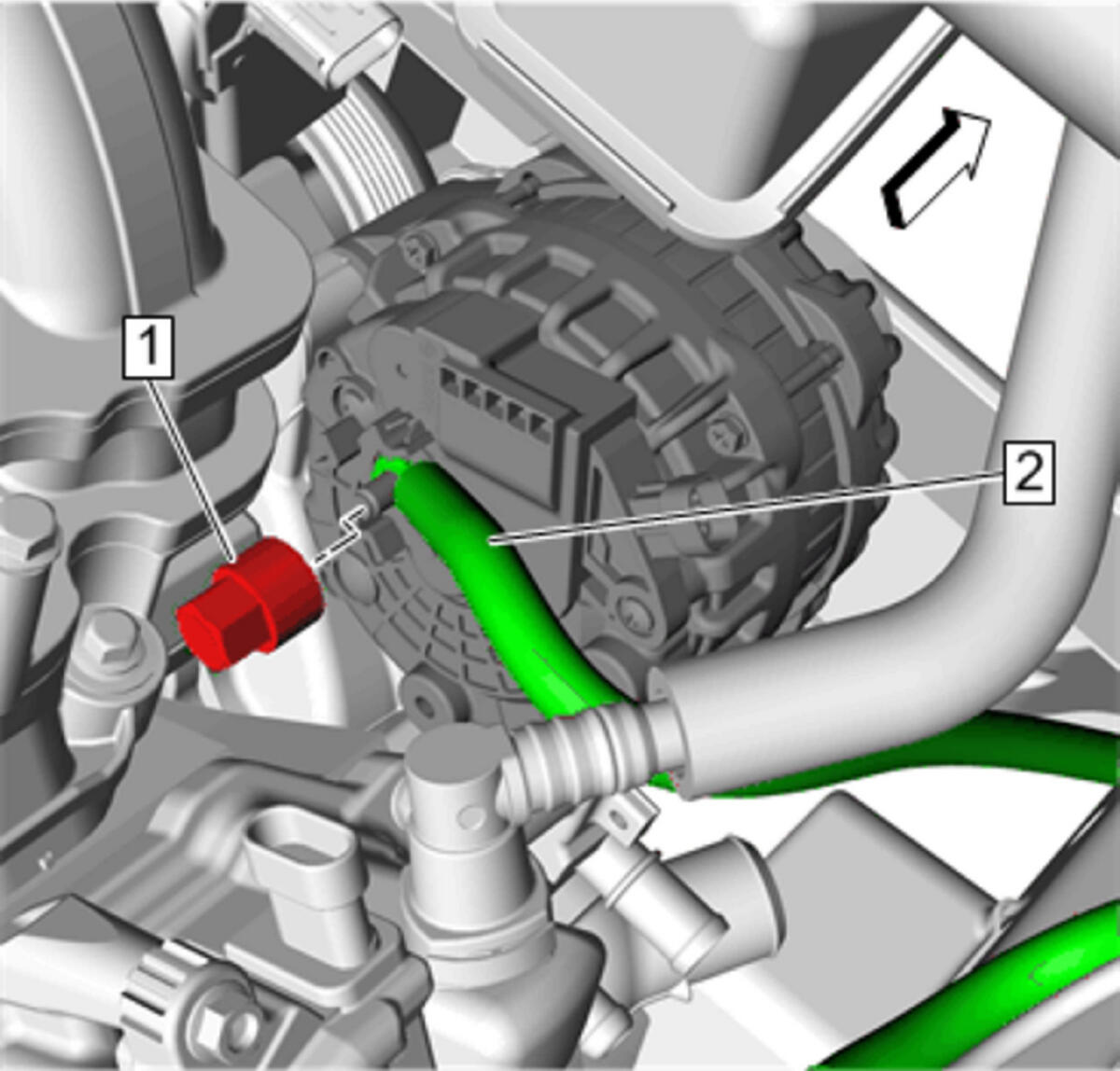

Battery Positive Cable(2) - Install
- Battery Positive Cable Nut(1) - Install and tighten15 N.m (11 lb ft)
Install the engine cover (1). Engine Cover Replacement

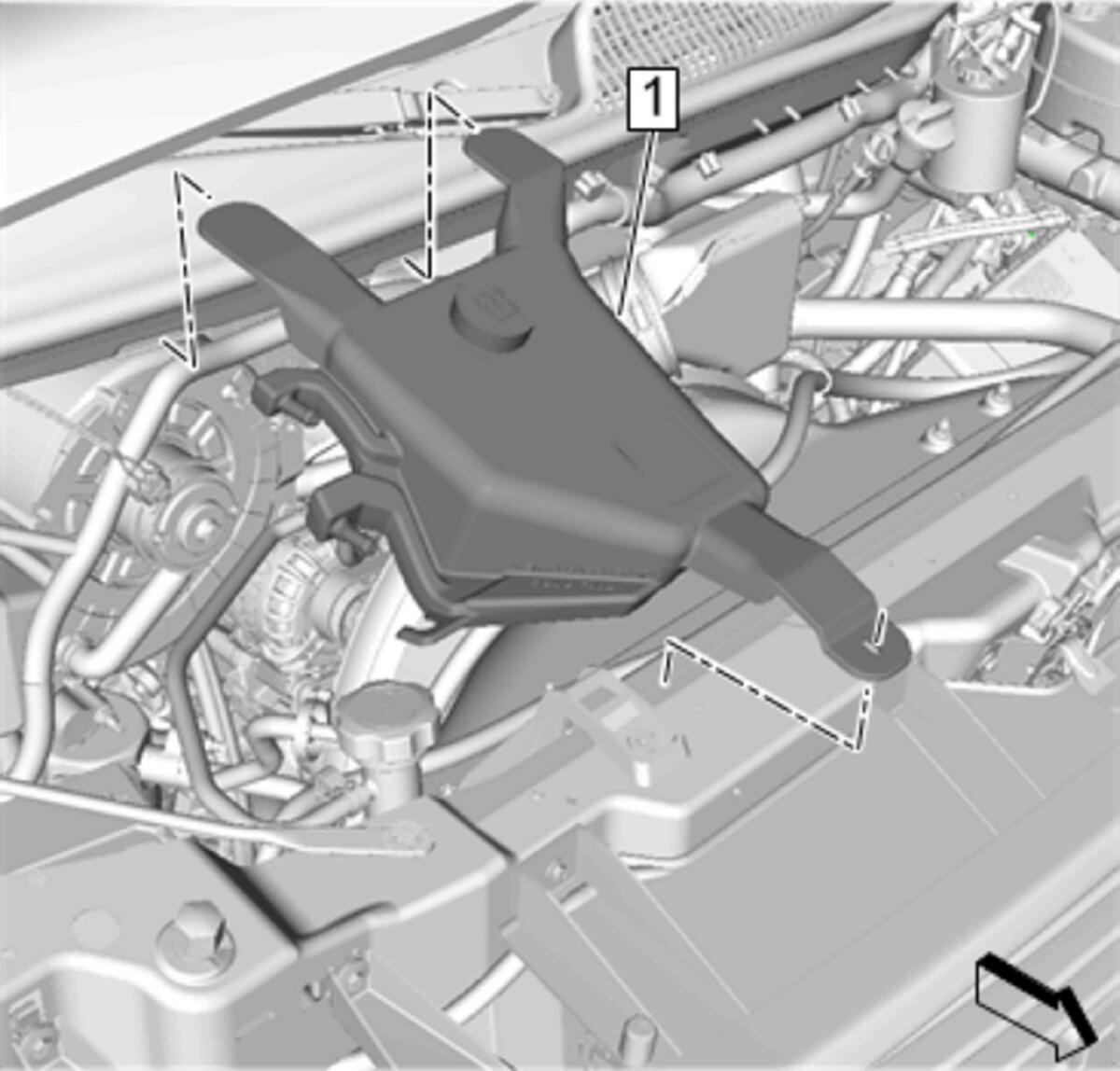

Coolant Recovery Reservoir(1) - Install - Coolant Recovery Reservoir Replacement (LV1)Coolant Recovery Reservoir Replacement (L96, LC8)
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
CAUTION:
Refer to Fastener Caution
