Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir(1) - Reposition - Coolant Recovery Reservoir Replacement (LV1)Coolant Recovery Reservoir Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

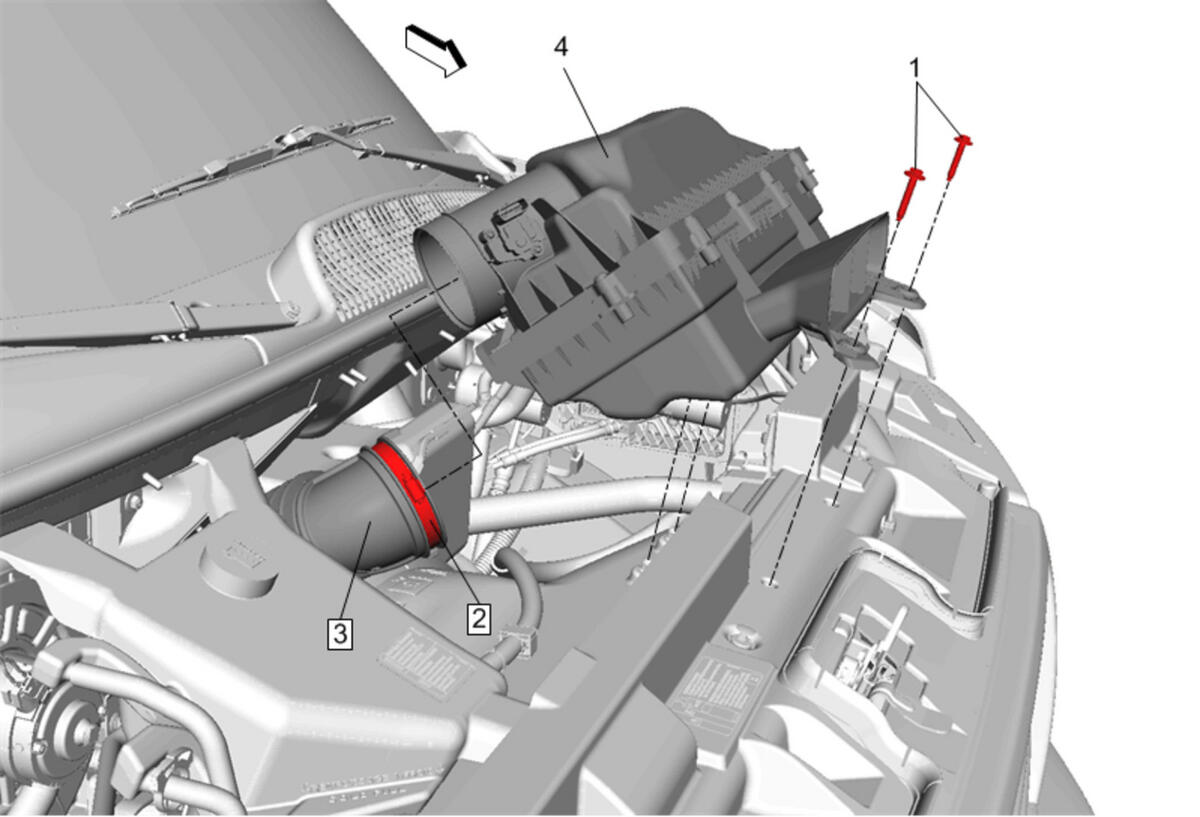

Air Cleaner Assembly(4) - Remove - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

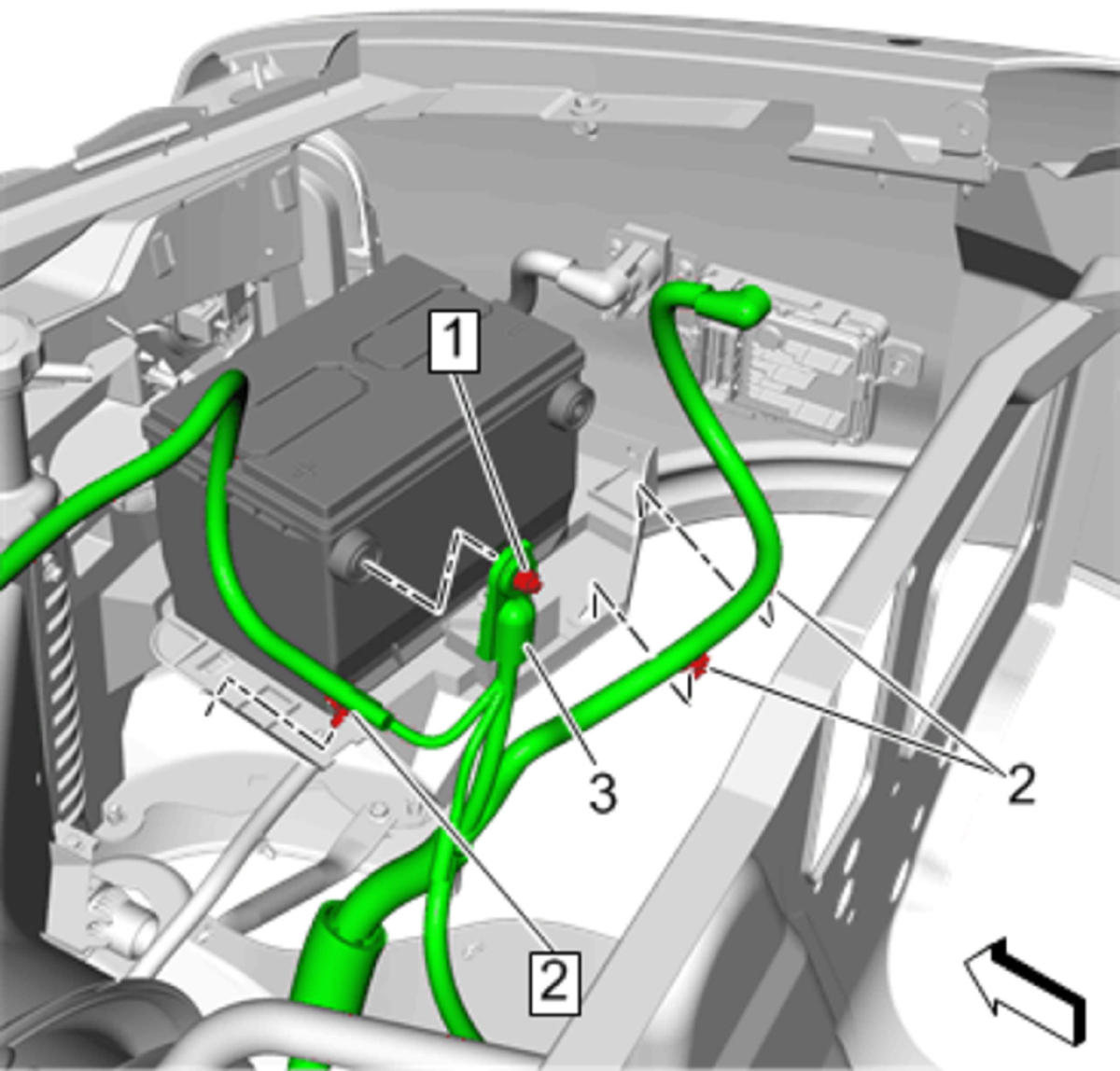

Battery Positive Cable Fastener(1) - Loosen
Battery Positive Cable Retainer(2) - Disengage[3x]
Battery Positive Cable(3) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Terminal Boot (1) - Remove
Battery Positive Cable Nut(4) - Remove
Battery Positive Cable(3)@Relay(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

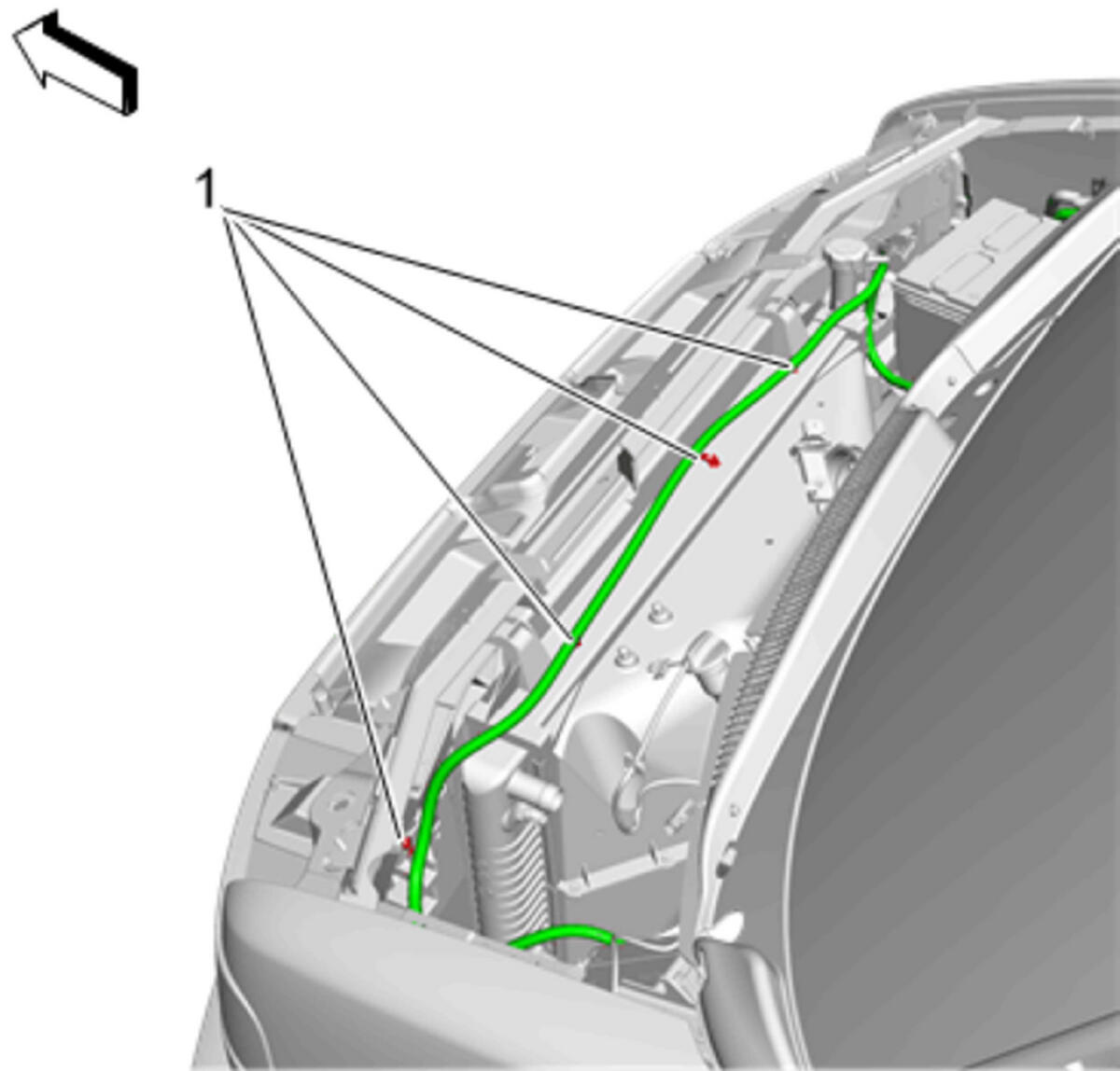

Battery Positive Cable Retainer(1) - Disengage[4x]
Courtesy of GENERAL MOTORS COMPANY

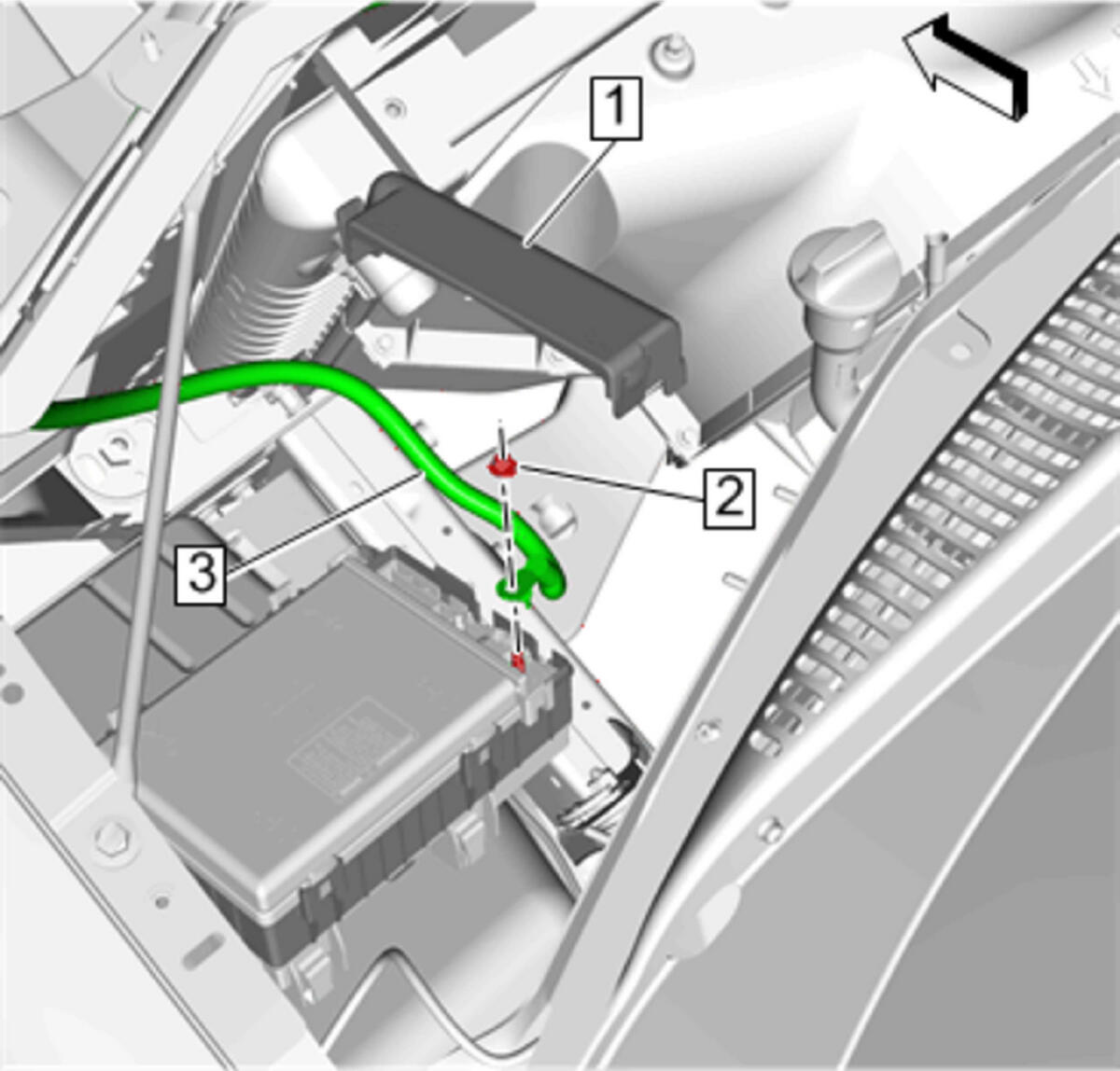

Accessory Wiring Junction Block Cover(1) - Remove
Battery Positive Cable Nut(2) - Remove
Battery Positive Cable(3) - Remove
Courtesy of GENERAL MOTORS COMPANY

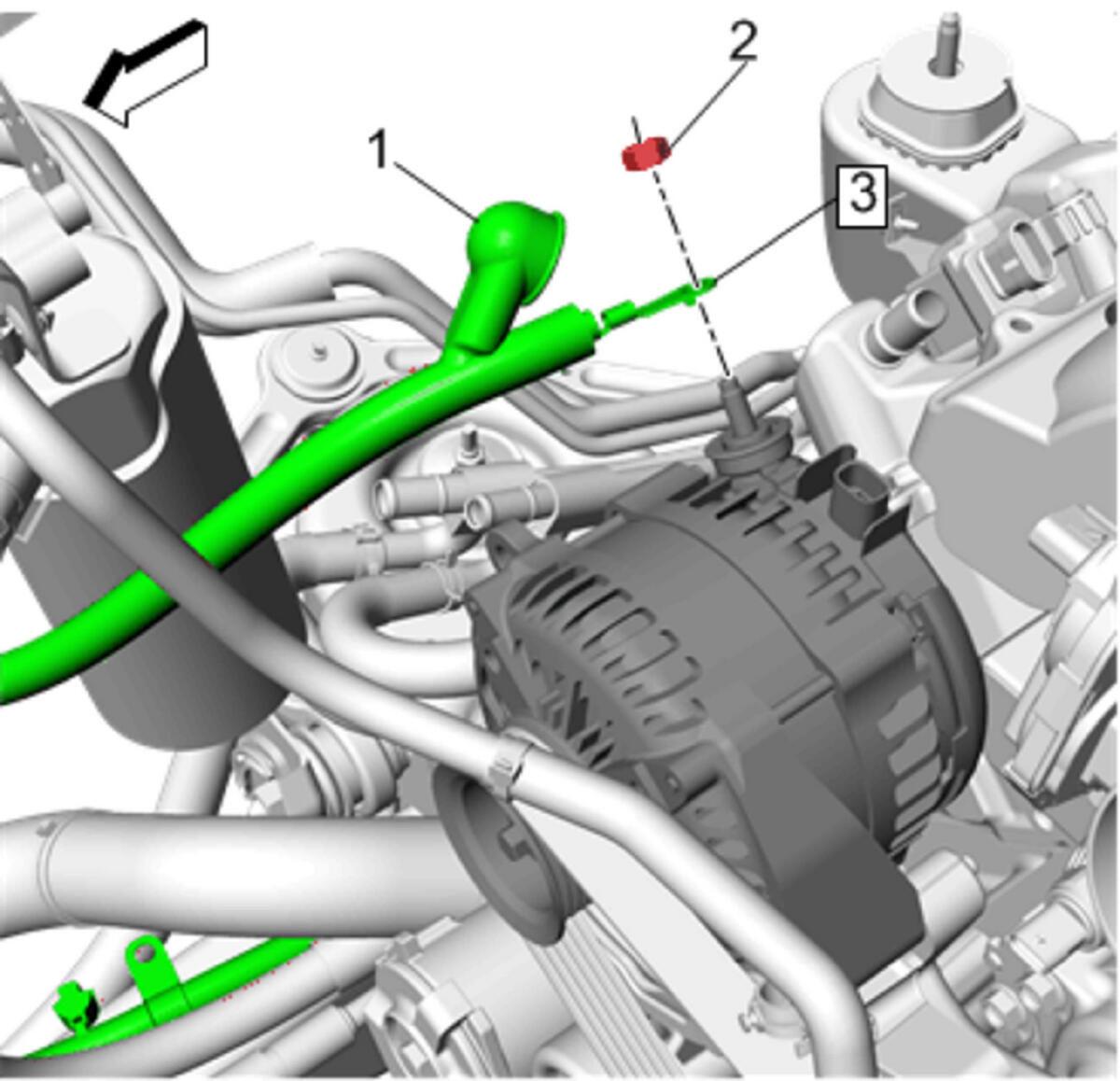

Battery Positive Cable Terminal Boot (1) - Remove
Battery Positive Cable Nut(2) - Remove
Battery Positive Cable(3) - Remove
Courtesy of GENERAL MOTORS COMPANY

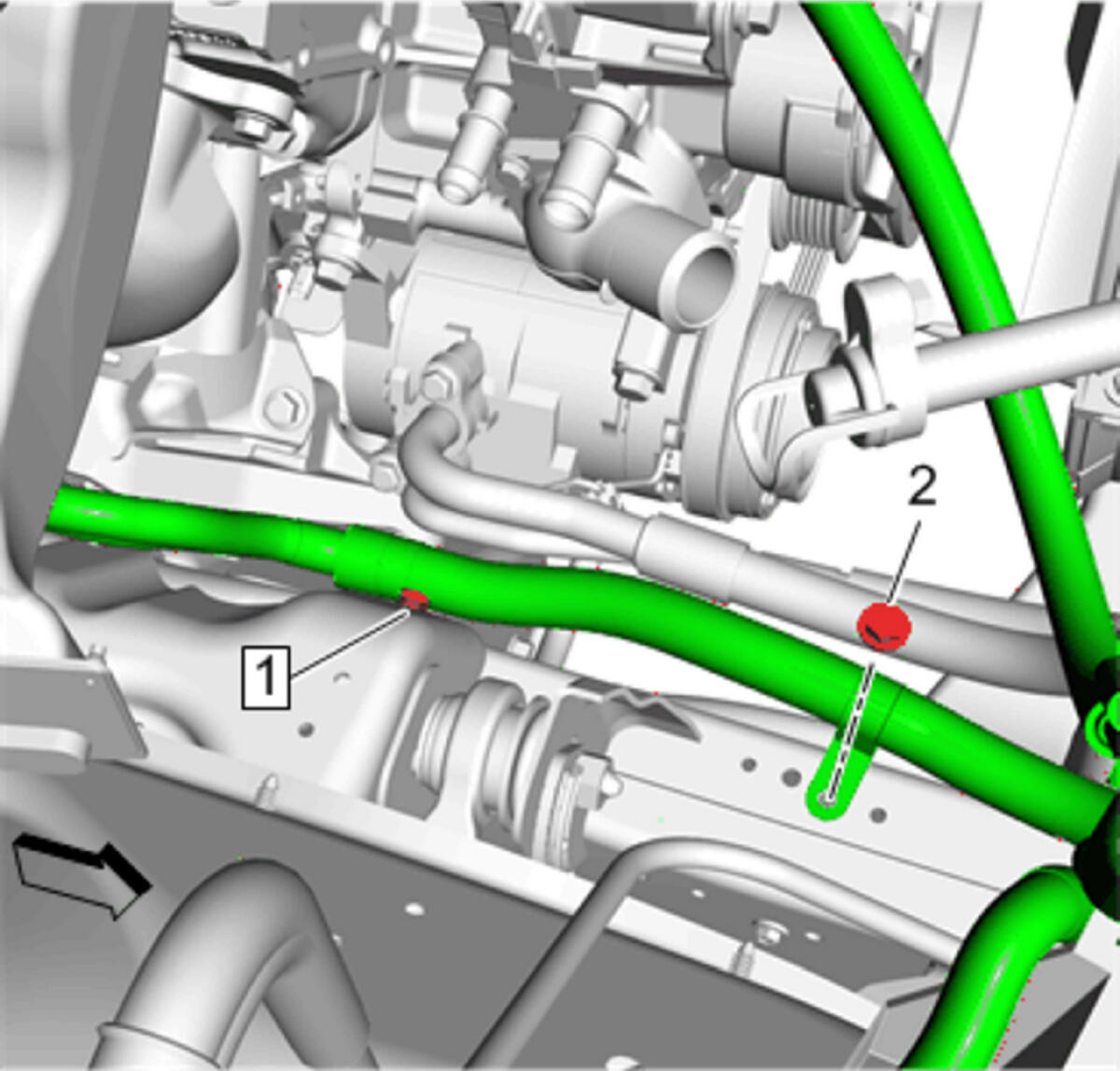

Battery Positive Cable Retainer Bolt (2) - Remove
Battery Positive Cable Retainer(1) - Disengage
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

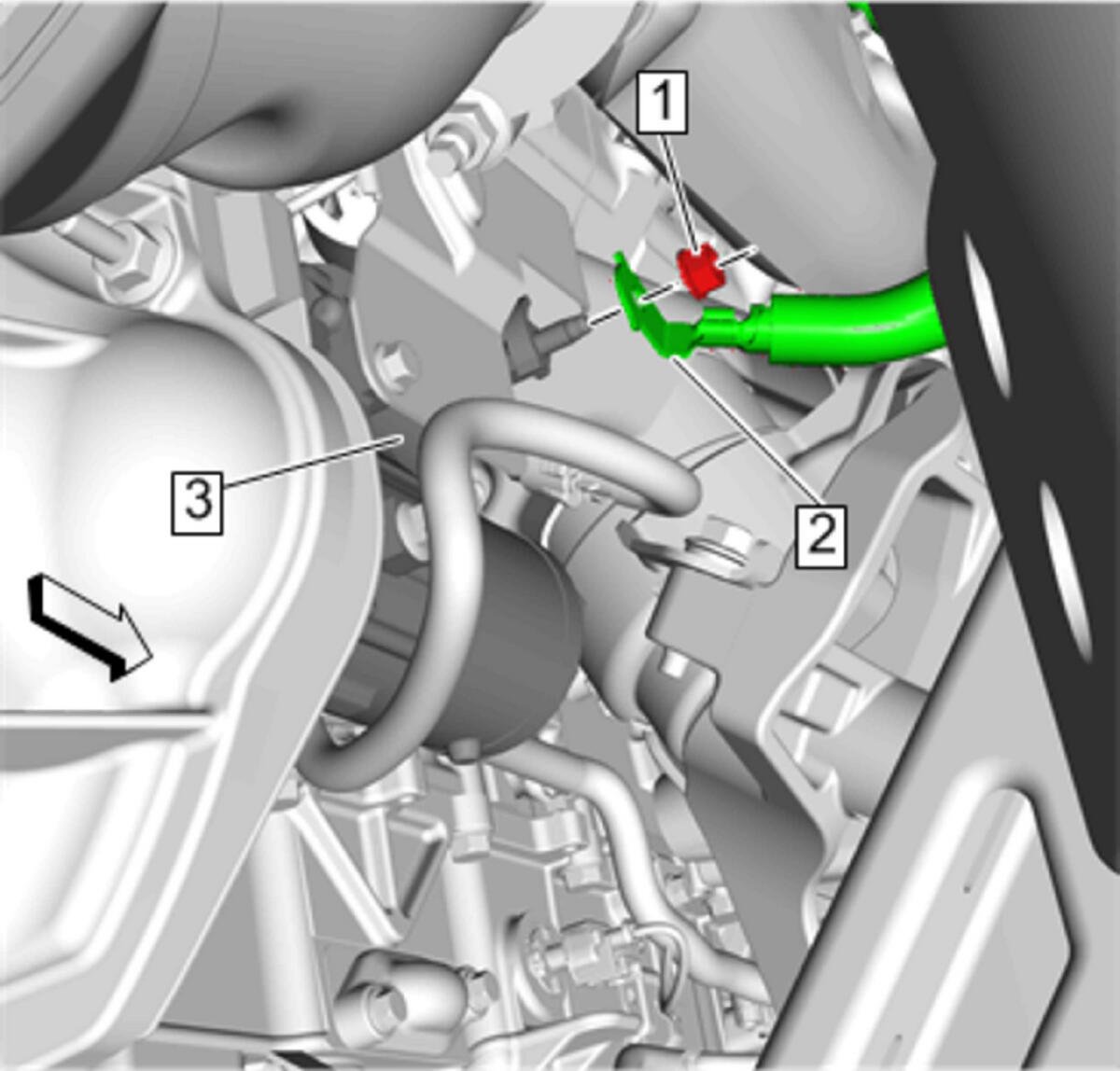

Battery Positive Cable Nut(1)@Starter Solenoid(3) - Remove
Battery Positive Cable(2) - Remove
Lower the vehicle.
Remove the battery positive cable from the vehicle.
