Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

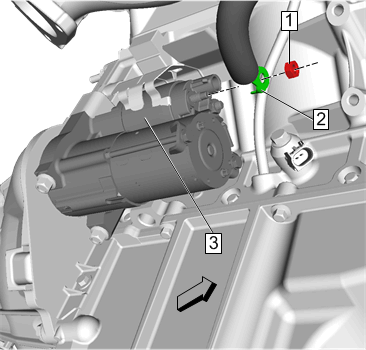

Battery Positive Cable(2) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Nut(1)@Starter Solenoid(3) - Install and tighten10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

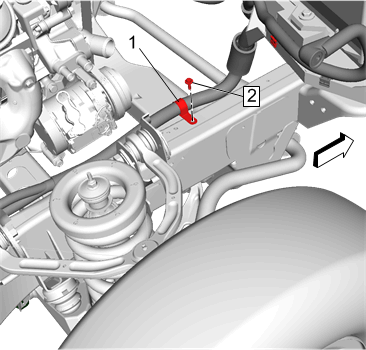

Battery Positive Cable(1) - Install
Battery Positive Cable Retainer Bolt (2) - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Retainer Clip(1) - Engage

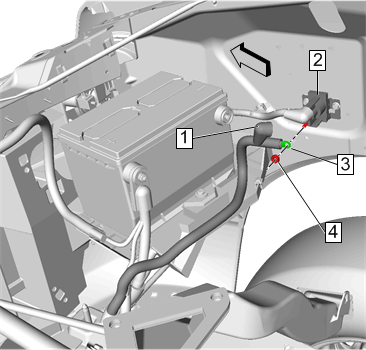

Battery Positive Cable(4) - Install
Battery Positive Cable Nut(3) - Install and tighten15 N.m (11 lb ft)
Battery Positive Cable Terminal Boot (2) - Install
Install the engine cover. Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

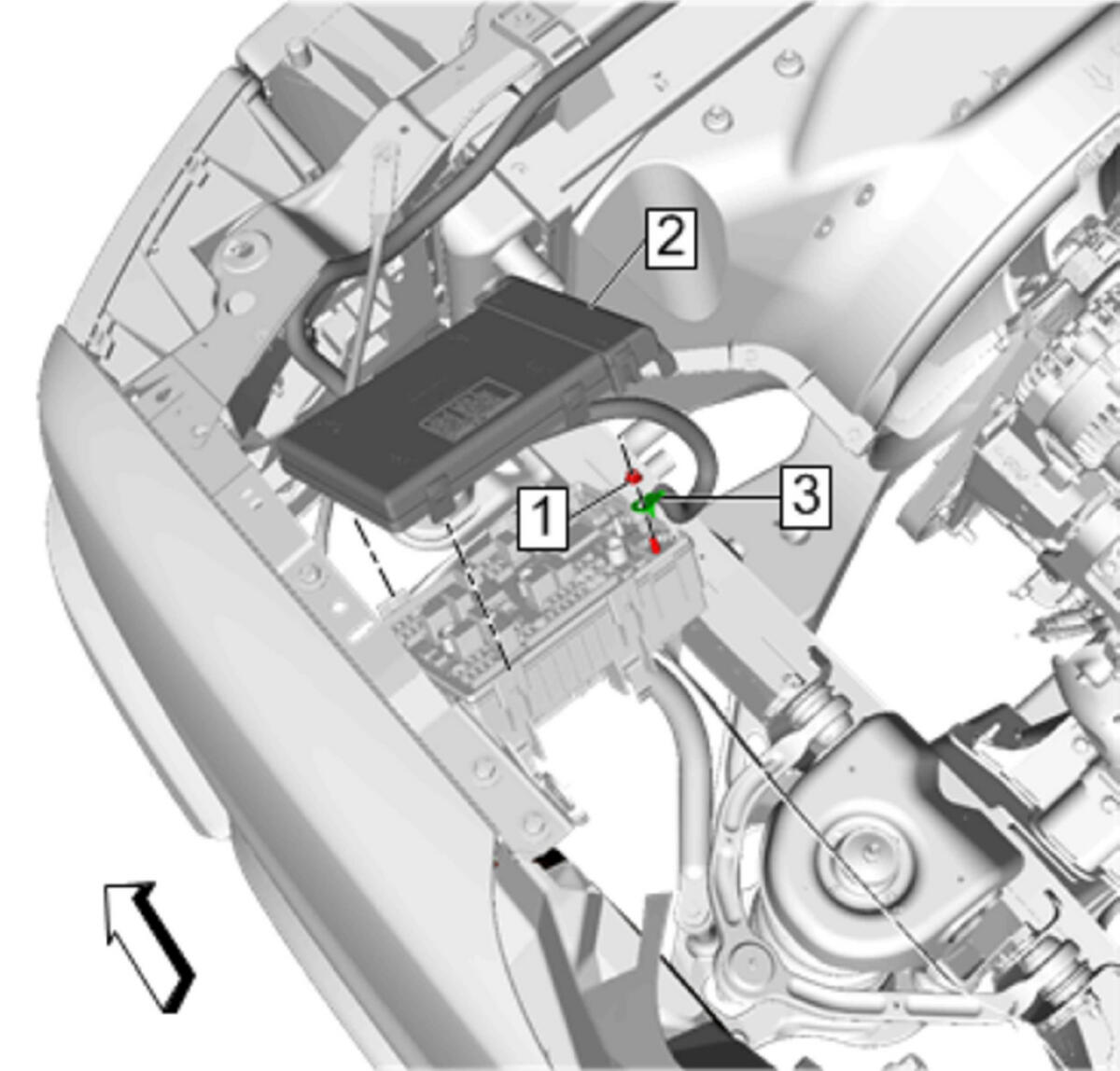

Battery Positive Cable(3) - Install
Battery Positive Cable Nut(1) - Install and tighten10 N.m (89 lb in)
Junction Block Cover (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer(1) - Engage[5x]
Courtesy of GENERAL MOTORS COMPANY

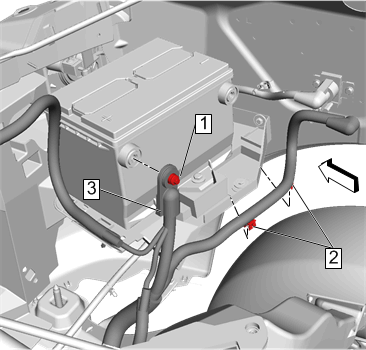

Battery Positive Cable(3)@Relay(2) - Install
Battery Positive Cable Nut(4) - Install and tighten9 N.m (80 lb in)
Battery Positive Cable Terminal Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

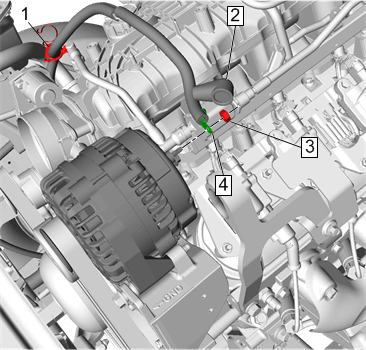

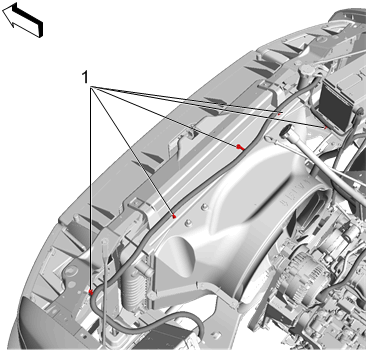

Battery Positive Cable(3) - Install
Battery Positive Cable Fastener(1) - Tighten13 N.m (115 lb in)
Battery Positive Cable Retainer(2) - Engage[2x]
Courtesy of GENERAL MOTORS COMPANY

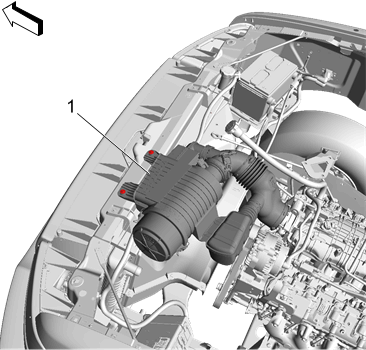

Air Cleaner Assembly(1) - Install - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

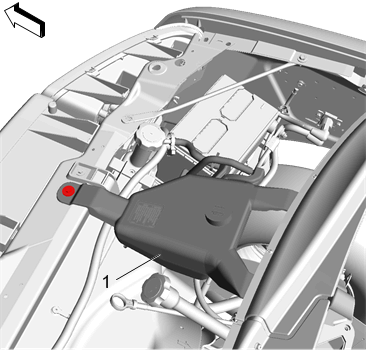

Radiator Surge Tank(1) - Install - Radiator Surge Tank Replacement (LWN)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
