Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)

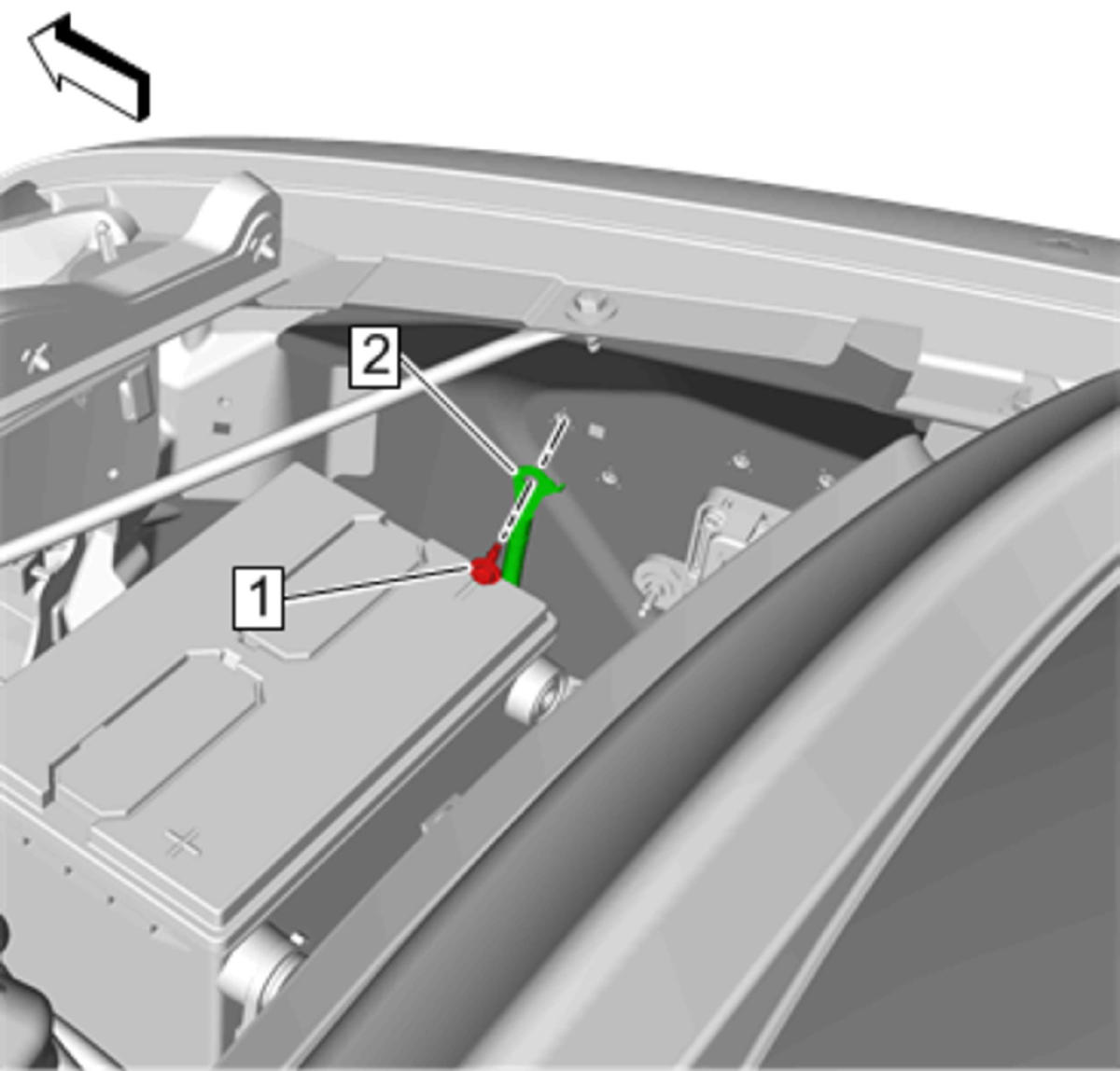

  2. GM4592747Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Fastener(1) - Remove

  3. Battery Negative Cable(2) - Remove

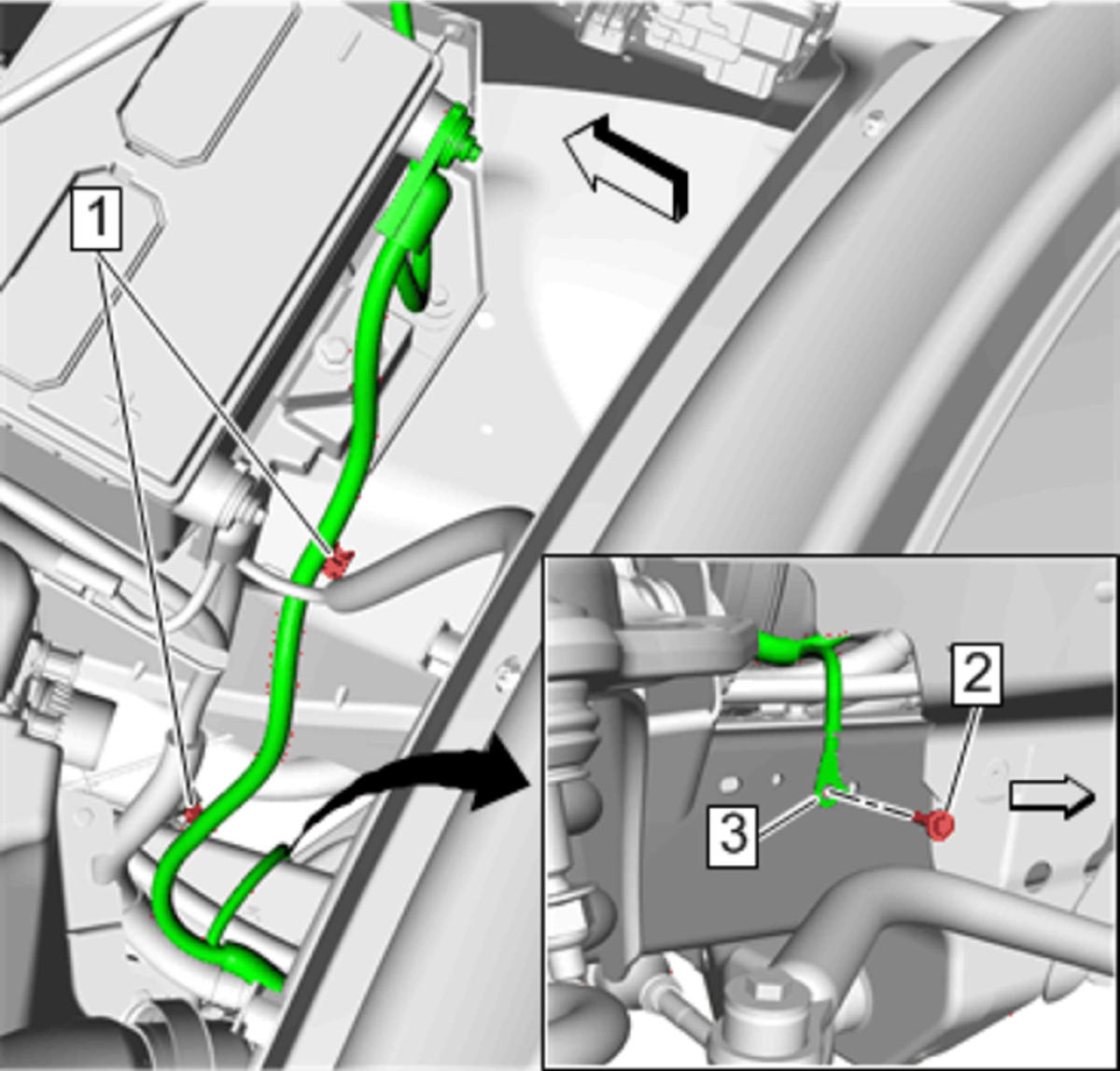

  4. GM4592748Courtesy of GENERAL MOTORS COMPANY

    Retainer(1) - Disengage[2x]

  5. Raise and support the vehicle. Lifting and Jacking the Vehicle
  6. Battery Negative Cable Frame Ground Fastener(2) - Remove
  7. Battery Negative Cable(3) - Remove

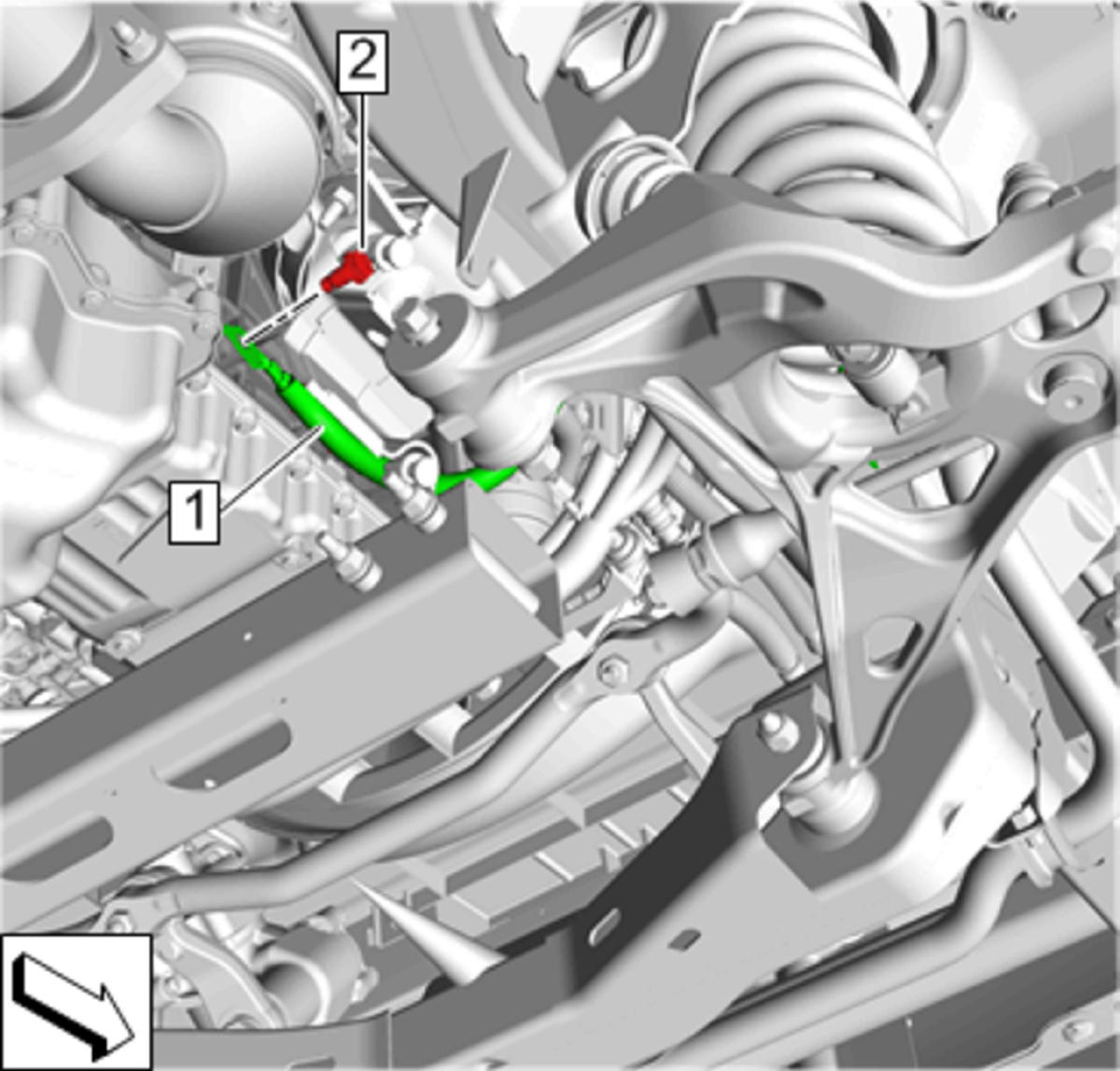

  8. GM4592749Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Fastener(2) - Remove

  9. Battery Negative Cable(1) - Remove
