Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

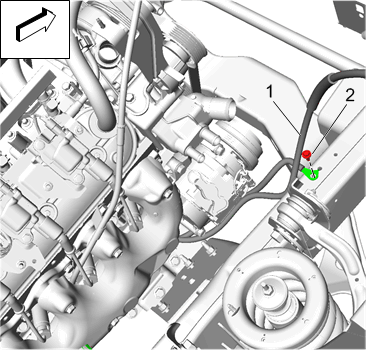

Battery Negative Cable(2) - Install
- Battery Negative Cable Ground Fastener(1) - Install and tighten40 N.m (30 lb ft)
- { If equipped }Air Conditioning Compressor Bracket - Install - Air Conditioning Compressor Bracket Replacement (LWN)Air Conditioning Compressor Bracket Replacement (L96, LC8)Air Conditioning Compressor Bracket Replacement (LV1)

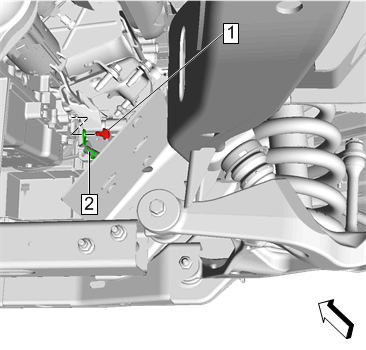

Battery Negative Cable(1) - Install
- Battery Negative Cable Frame Ground Fastener(2) - Install and tighten9 N.m (80 lb in)
- Lower the vehicle.

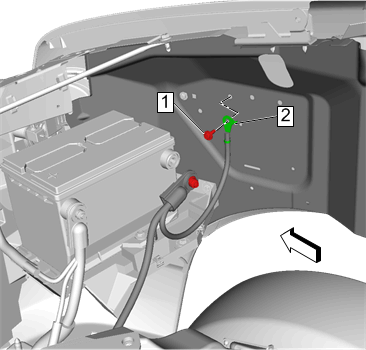

Battery Negative Cable(2) - Install
- Battery Negative Cable Ground Fastener(1) - Install and tighten9 N.m (80 lb in)

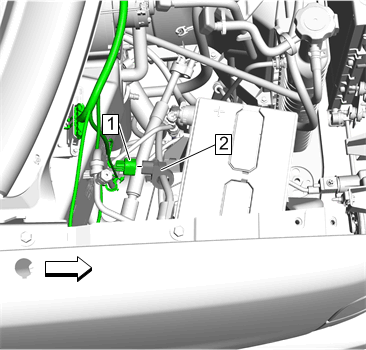

Electrical Connector(1)@Battery Current Sensor(2) - Connect
- Connect the negative cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
