Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    The battery current sensor is a part of the battery negative cable.

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
  2. GM5128767Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt(1) - Remove

  3. Retainer(2) - Disengage
  4. Electrical Connector(3) - Disconnect
  5. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels)Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  6. GM5128775Courtesy of GENERAL MOTORS COMPANY

    Retainer(1) - Disengage

  7. Battery Negative Cable Ground Bolt(2) - Remove
  8. GM5128780Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt(2) - Remove

  9. Retainer(1) - Disengage[3x]
  10. Battery Negative Cable(3) - Remove

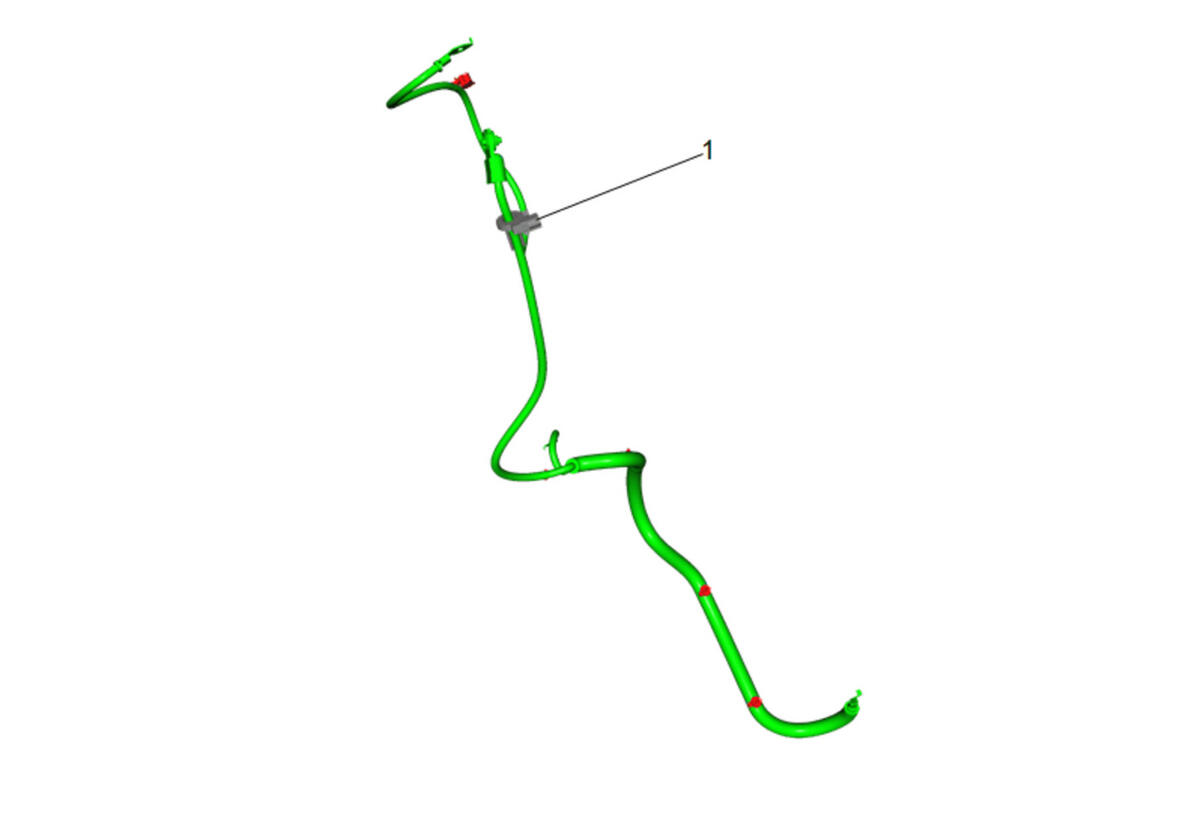

  11. GM5128851Courtesy of GENERAL MOTORS COMPANY

    The battery current sensor (1) is a part of the battery negative cable.
