Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

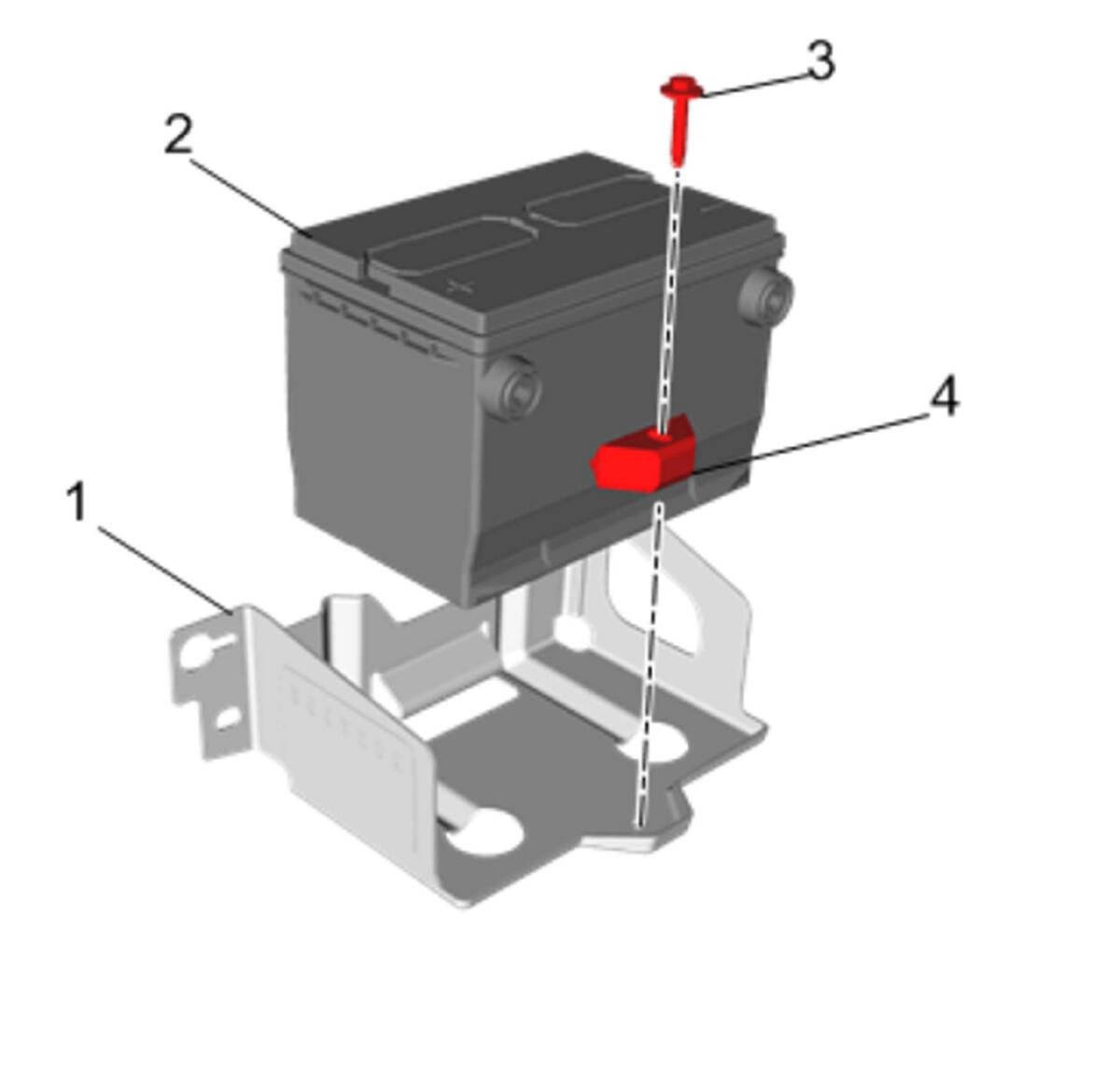

Auxiliary Battery(2) - Install
- Auxiliary Battery Hold Down Retainer (4) - Install
- Auxiliary Battery Hold Down Bolt(3) - Install and tighten25 N.m (18 lb ft)

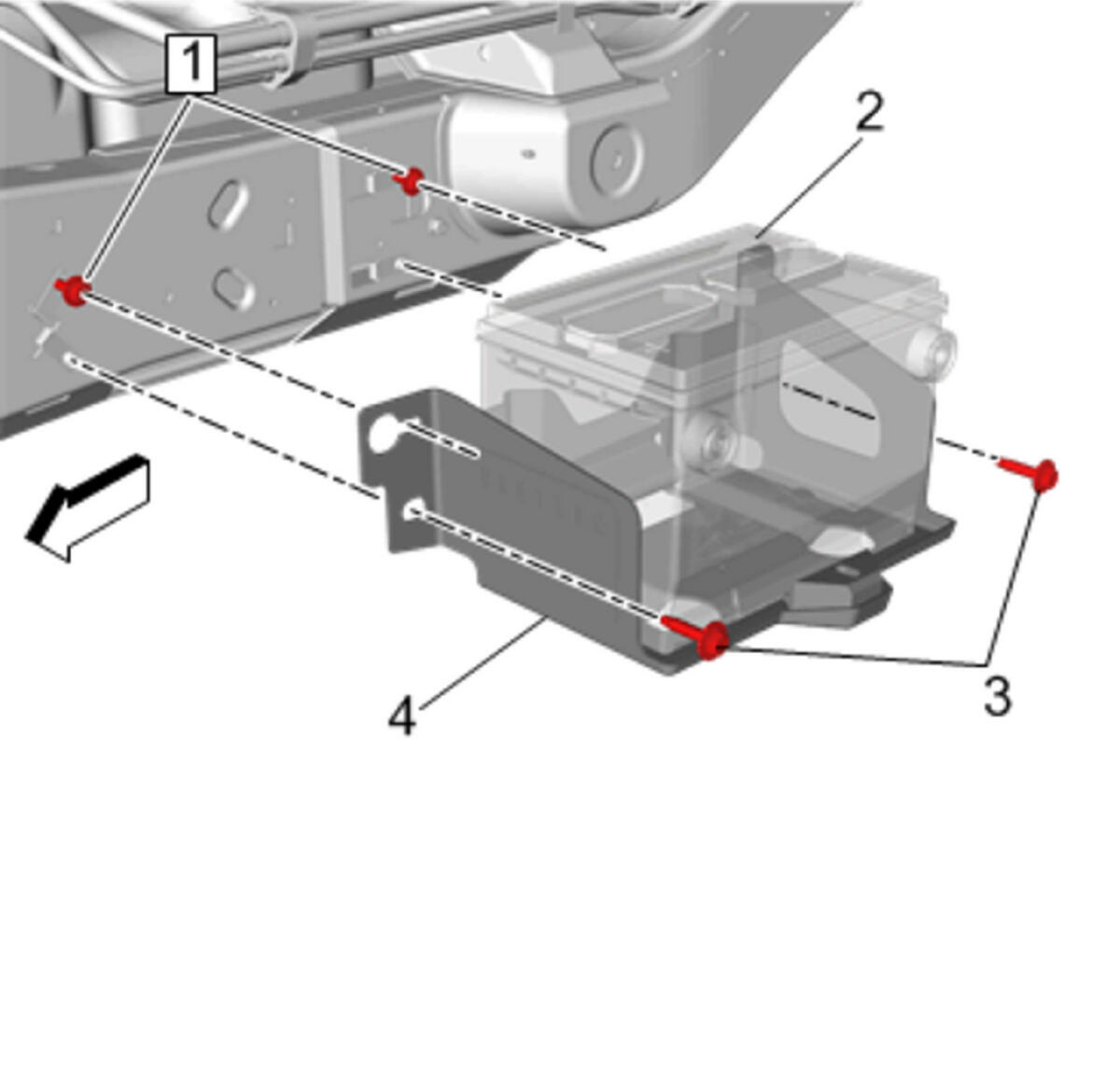

Install the auxiliary battery (2) and the auxiliary battery tray (4), onto the loosened bolts (1) on the frame rail.
- Auxiliary Battery Tray Mounting Bolt (3) - Install and tighten[2x]25 N.m (18 lb ft)
- Auxiliary Battery Tray Mounting Bolt (1) - Tighten[2x]25 N.m (18 lb ft)
- Connect the auxiliary battery positive cable. Auxiliary Battery Positive Cable Replacement (L96, LC8, LV1 - Long Wheelbase) Auxiliary Battery Positive Cable Replacement (L96, Lc8, LV1 - Short Wheelbase) Auxiliary Battery Positive Cable Replacement (LWN - Short Wheelbase) Auxiliary Battery Positive Cable Replacement (LWN - Long Wheelbase)
- Connect the primary and auxiliary battery negative cables. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery) .
CAUTION:
Refer to Fastener Caution
