Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the primary battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle

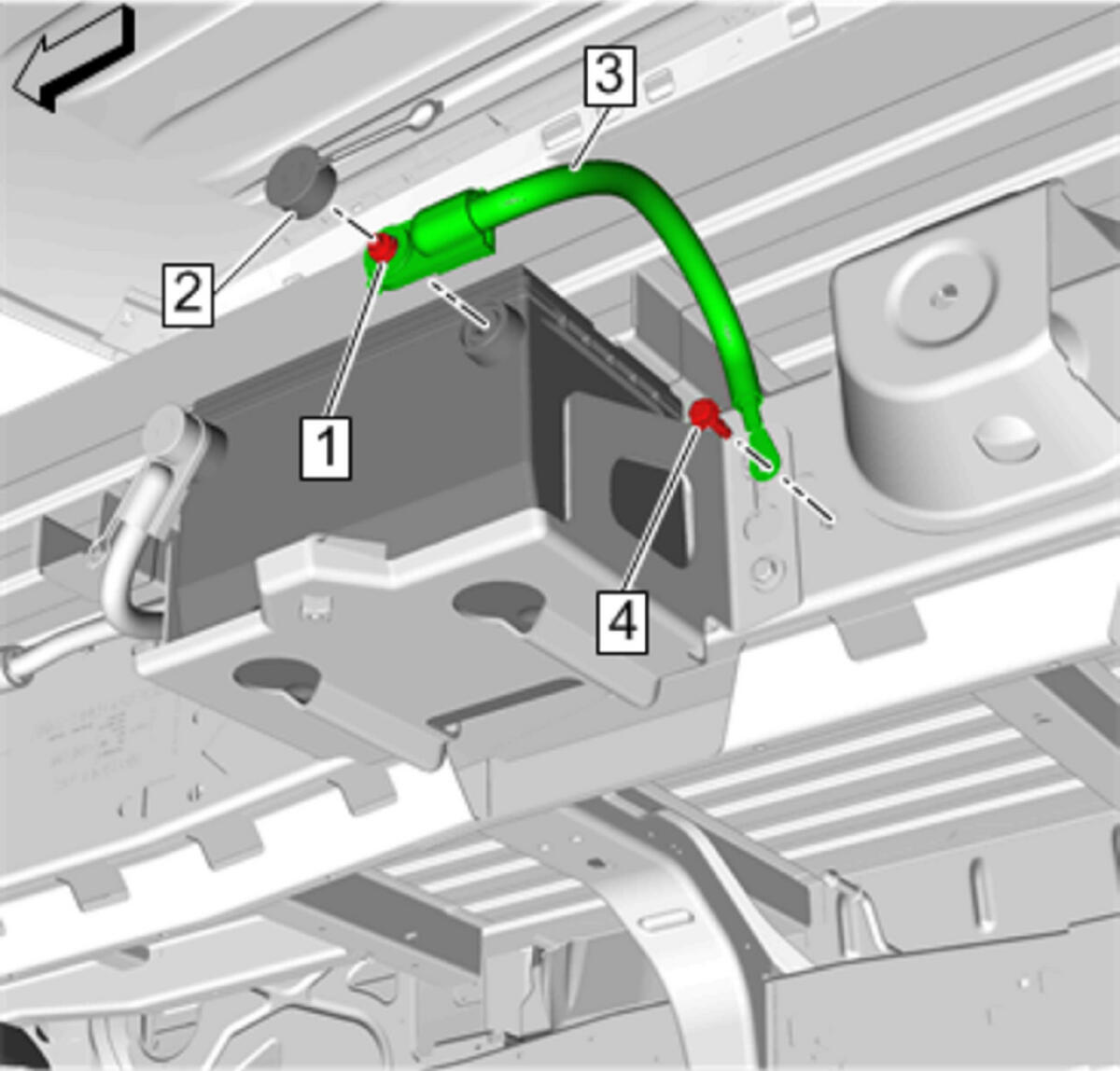

  3. GM4595994Courtesy of GENERAL MOTORS COMPANY

    Protective Cap(2) - Reposition

  4. Auxiliary Battery Negative Cable Fastener(1) - Remove
  5. Auxiliary Battery Negative Cable Bolt(4) - Remove
  6. Auxiliary Battery Negative Cable(3) - Remove
