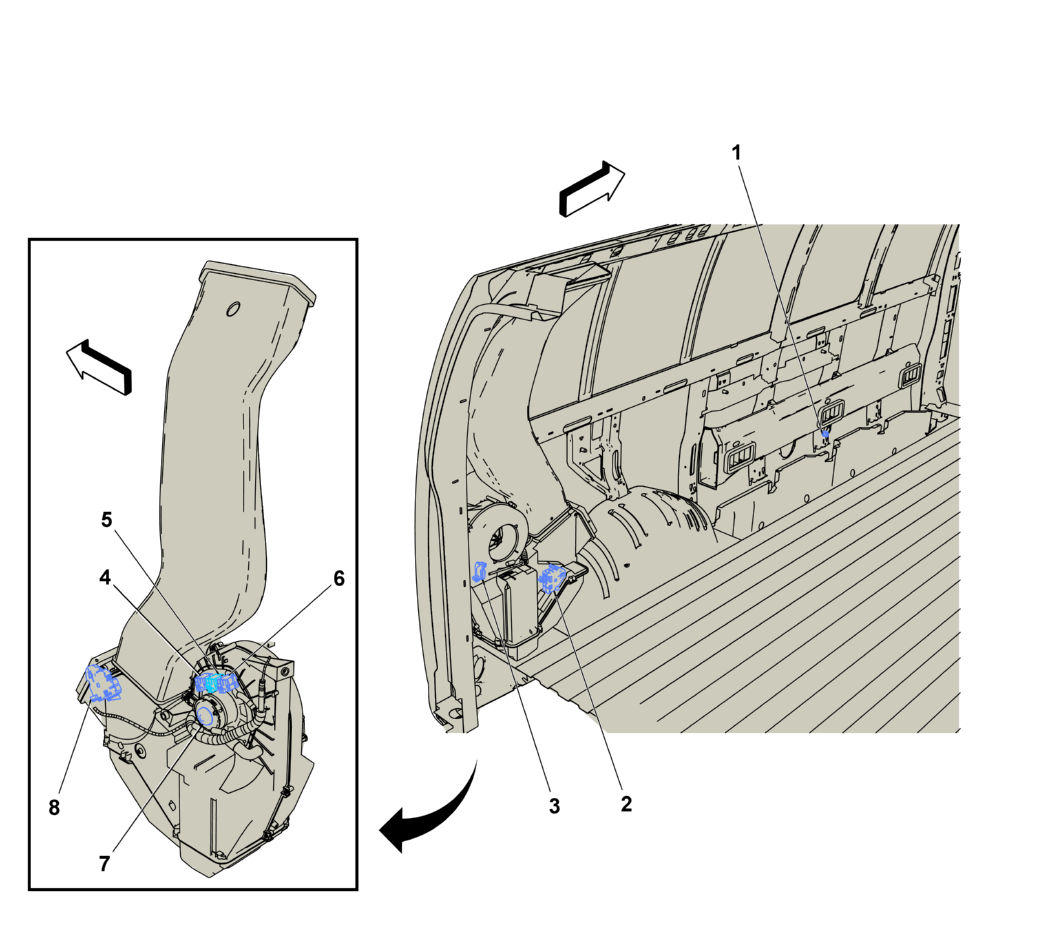

Left Rear Cargo Area Components (Passenger or Cargo)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Left Rear Cargo Area Components (Passenger or Cargo)
| Items |
|---|
| 1. B63LR Side Impact Sensor - Left Rear (ASF) B63LR Side Impact Sensor - Left Rear (ASF) |
| 2. M6B Air Temperature Door Actuator - Auxiliary (C69) M6B Air Temperature Door Actuator - Auxiliary (C69) |
| 3. R3B Blower Motor Resistor - Auxiliary (C36 or C69) R3B Blower Motor Resistor - Auxiliary (C36 or C69) |
| 4. KR32B Blower Motor High Speed Relay - Auxiliary KR32B Blower Motor High Speed Relay - Auxiliary |
| 5. KR32D Blower Motor Medium Speed Relay - Auxiliary KR32D Blower Motor Medium Speed Relay - Auxiliary |
| 6. KR32C Blower Motor Low Speed Relay - Auxiliary KR32C Blower Motor Low Speed Relay - Auxiliary |
| 7. M8B Blower Motor - Auxiliary (C36 or C69) M8B Blower Motor - Auxiliary (C36 or C69) |
| 8. M37B Mode Door Actuator - Auxiliary (C69) M37B Mode Door Actuator - Auxiliary (C69) |
