Front of Engine Compartment Components (2 of 2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

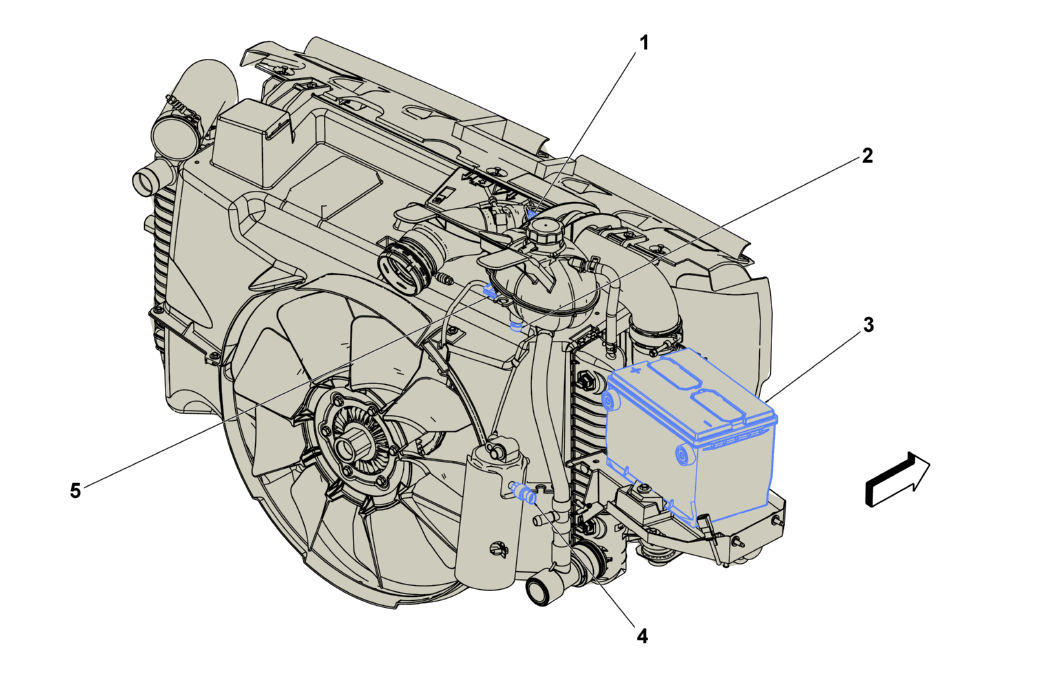

GM4702520Courtesy of GENERAL MOTORS COMPANY
Front of Engine Compartment Components (2 of 2)

Items
1. B193B Charge Air Cooler Outlet Temperature Sensor (LWN) B193B Charge Air Cooler Outlet Temperature Sensor
2. B33 Engine Coolant Level Switch (LWN) B33 Engine Coolant Level Switch (LWN)
3. C1 Battery C1 Battery ((+)) , or C1 Battery ((-))
4. B1B A/C Low Side Pressure Switch (C60) B1B A/C Low Side Pressure Switch (C60)
5. X142 Engine Harness to Cooling Fan Jumper Harness (LWN) X142 Engine Harness to Cooling Fan Jumper Harness
