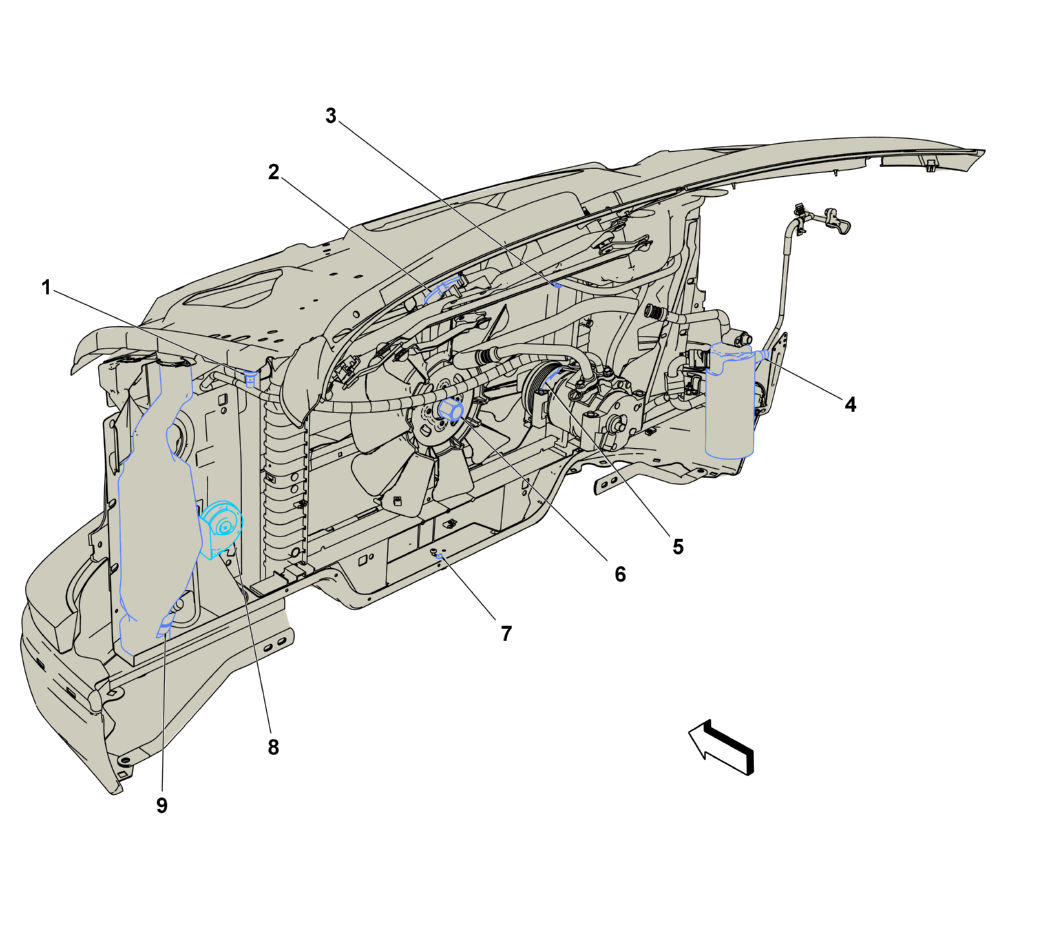

Front of Engine Compartment Components (1 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Front of Engine Compartment Components (1 of 2)
| Items |
|---|
| 1. B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor(C60) |
| 2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 3. B33 Engine Coolant Level Switch (LWN) B33 Engine Coolant Level Switch (LWN) |
| 4. B1B A/C Low Side Pressure Switch (C60) B1B A/C Low Side Pressure Switch (C60) |
| 5. Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch (L96/LC8) , or Q2 A/C Compressor Clutch (LV1) , or Q2 A/C Compressor Clutch (LWN) |
| 6. Q85 Cooling Fan Clutch (LWN) Q85 Cooling Fan Clutch (LWN) |
| 7. B59 Front Impact Sensor B59 Front Impact Sensor |
| 8. P13 Horn Assembly P13 Horn Assembly |
| 9. G24 Windshield Washer Pump G24 Windshield Washer Pump |
