Front Exterior Lighting (Uplevel)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

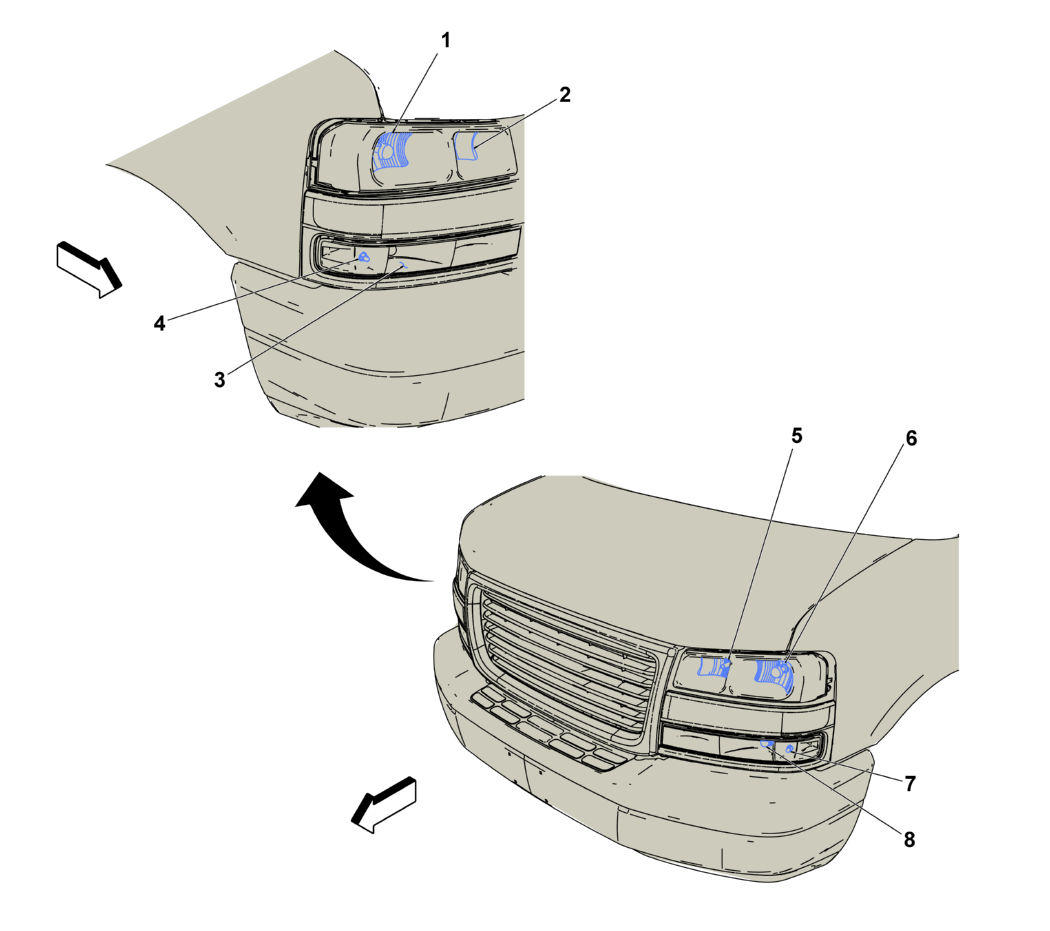

Front Exterior Lighting (Uplevel)
| Items |
|---|
| 1. E4H Headlamp - Right Low Beam (V22) E4H Headlamp - Right Low Beam (V22) |
| 2. E4F Headlamp - Right High Beam (V22) E4F Headlamp - Right High Beam (V22) |
| 3. E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right |
| 4. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front |
| 5. E4E Headlamp - Left High Beam (V22) E4E Headlamp - Left High Beam (V22) |
| 6. E4G Headlamp - Left Low Beam (V22) E4G Headlamp - Left Low Beam (V22) |
| 7. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front |
| 8. E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left |
