Front Exterior Lighting (Base)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

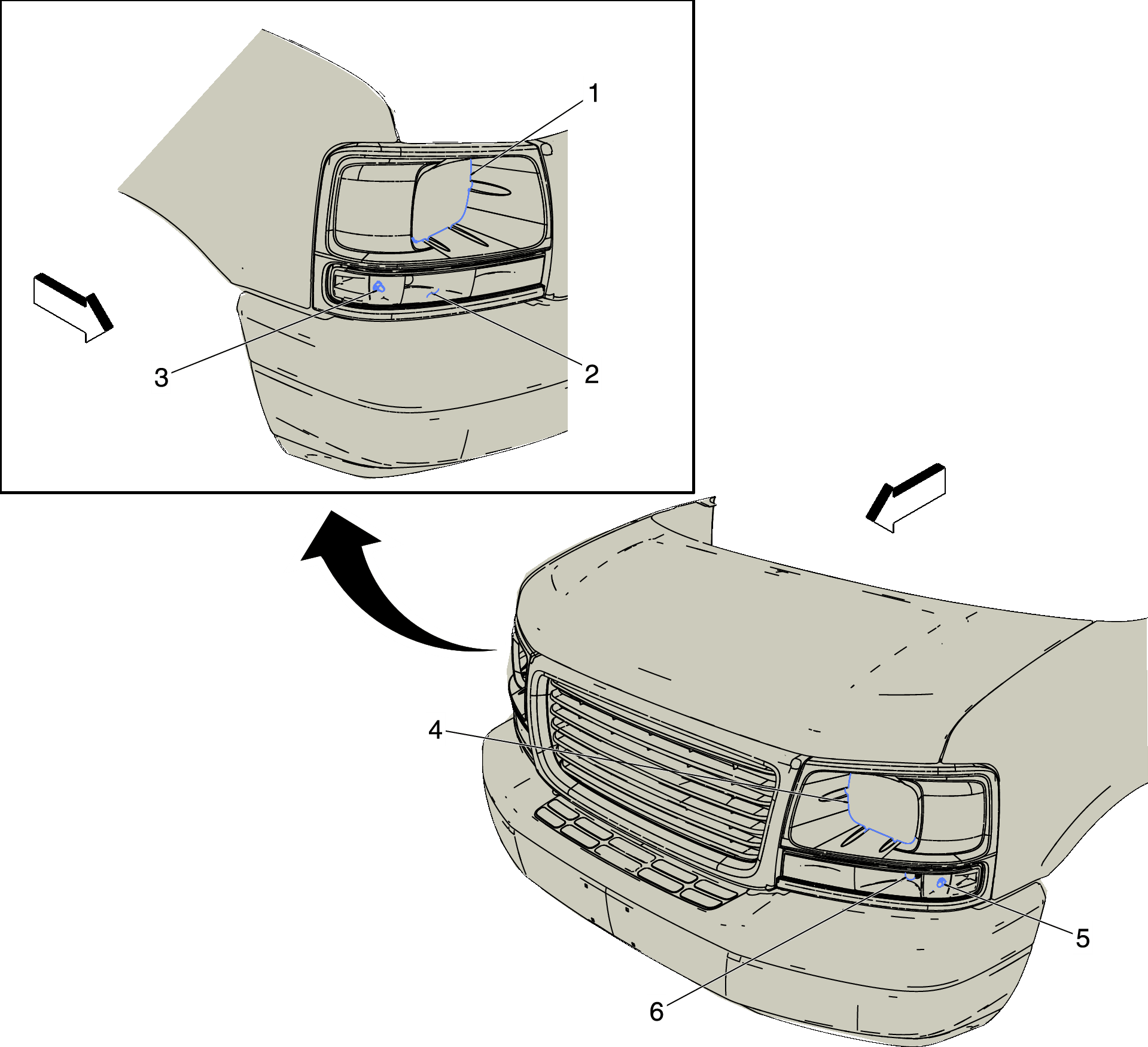

GM2831196Courtesy of GENERAL MOTORS COMPANY
Front Exterior Lighting (Base)

Items
1. E13R Headlamp - Right (Without V22) E13R Headlamp - Right (-V22)
2. E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right
3. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front
4. E13L Headlamp - Left (Without V22) E13L Headlamp - Left (-V22)
5. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front
6. E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left
