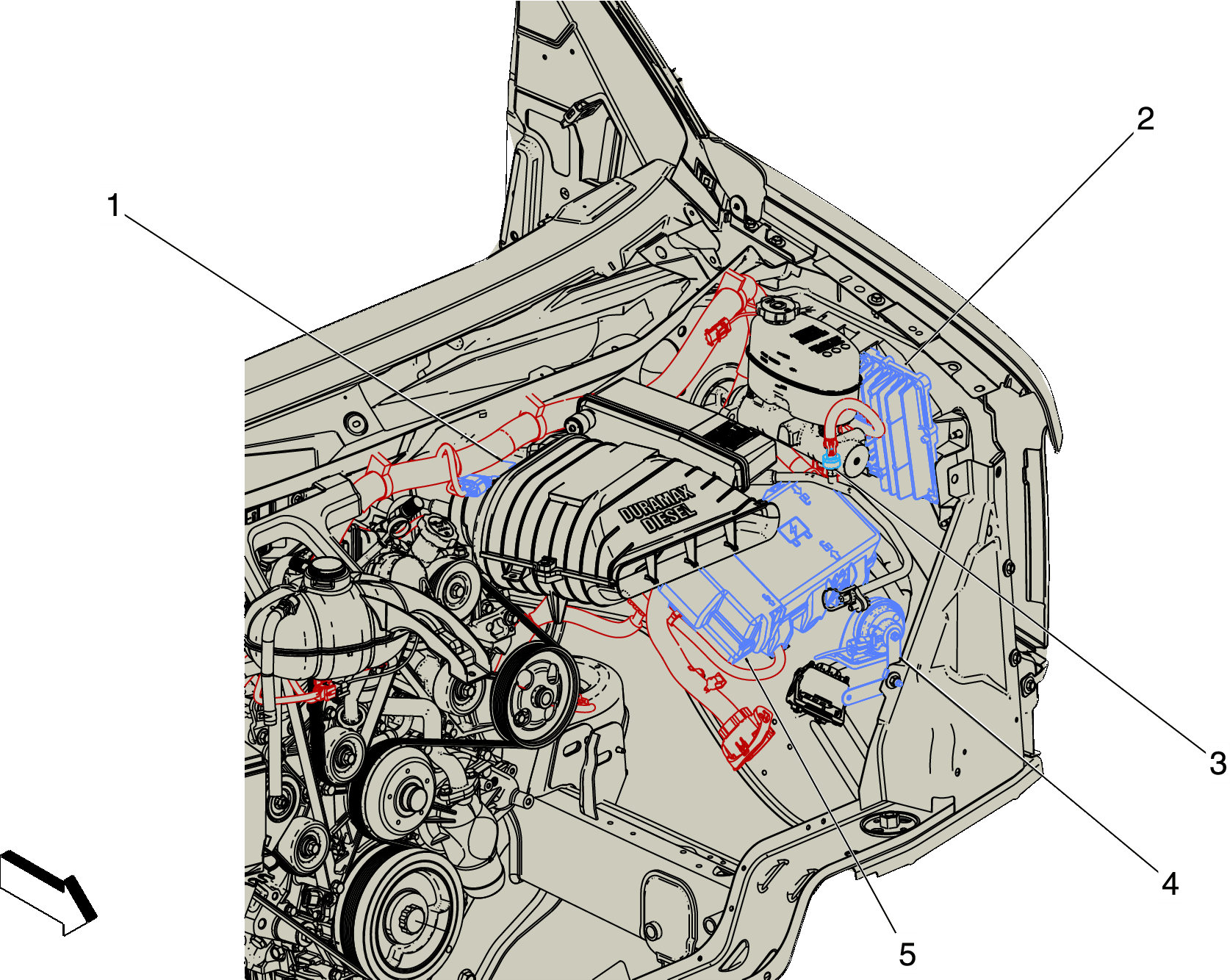

Engine Compartment Components (2 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Compartment Components (2 of 2)
| Items |
|---|
| 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2. K20 Engine Control Module K20 Engine Control Module X1 (L96/LC8) , or K20 Engine Control Module X1 (LV1) , or K20 Engine Control Module X1 (LWN) , or K20 Engine Control Module X2 (L96/LC8) , or K20 Engine Control Module X2 (LV1) , or K20 Engine Control Module X2 (LWN) , or K20 Engine Control Module X3 (L96/LC8) , or K20 Engine Control Module X3 (LV1) , or K20 Engine Control Module X3 (LWN) |
| 3. B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor |
| 4. P13 Horn Assembly P13 Horn Assembly |
| 5. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 , or X50A Fuse Block - Underhood X6 |
