Engine Compartment Components (1 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

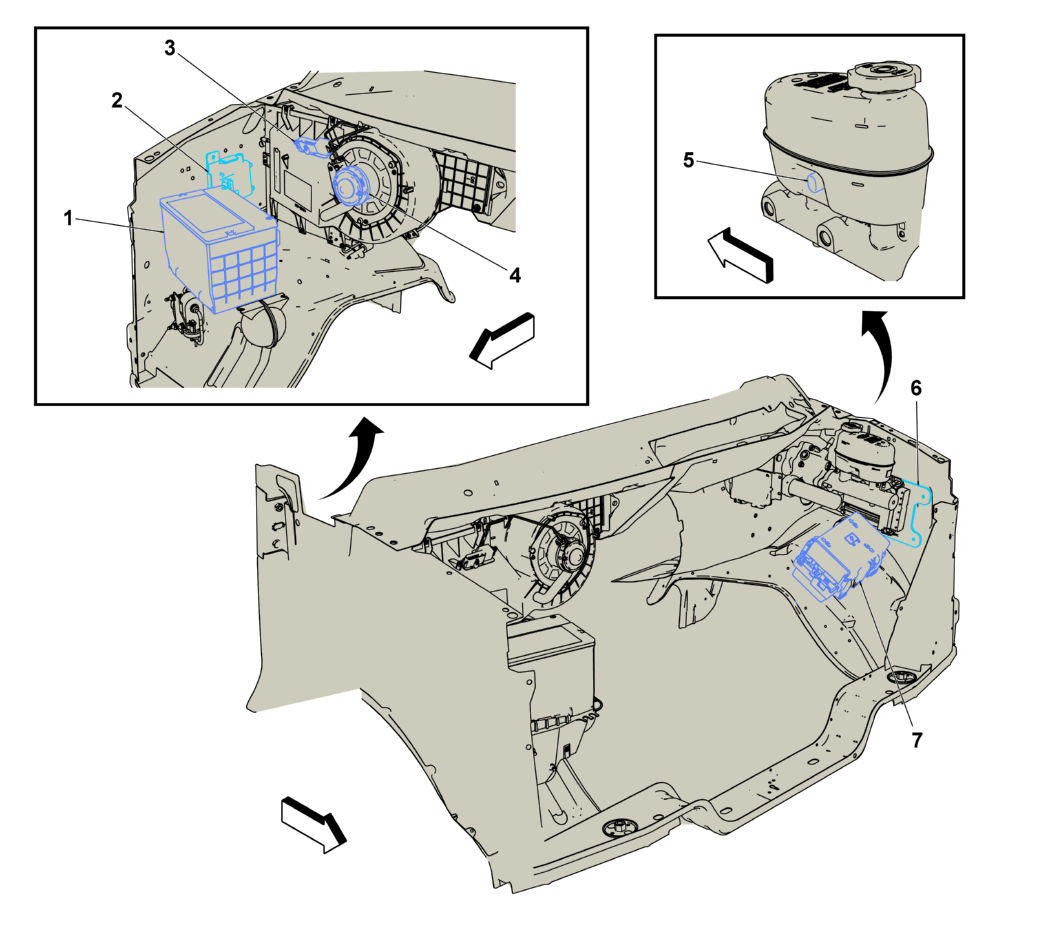

Engine Compartment Components (1 of 2)
| Items |
|---|
| C1 Battery C1 Battery ((+)) , or C1 Battery ((-)) |
| 1. K71 Transmission Control Module (M5U) K71 Transmission Control Module (LV1) , or K71 Transmission Control Module (LWN) |
| 2. R3 Blower Motor Resistor R3 Blower Motor Resistor |
| 3. M8 Blower Motor M8 Blower Motor |
| 4. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 5. K20 Engine Control Module K20 Engine Control Module X1 (L96/LC8) , or K20 Engine Control Module X1 (LV1) , or K20 Engine Control Module X1 (LWN) , or K20 Engine Control Module X2 (L96/LC8) , or K20 Engine Control Module X2 (LV1) , or K20 Engine Control Module X2 (LWN) , or K20 Engine Control Module X3 (L96/LC8) , or K20 Engine Control Module X3 (LV1) , or K20 Engine Control Module X3 (LWN) |
| 6. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 , or X50A Fuse Block - Underhood X6 |
