Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Cover (1) - Remove - Engine Cover Replacement
- Remove the auxiliary power outlet fuse from the fuse block.

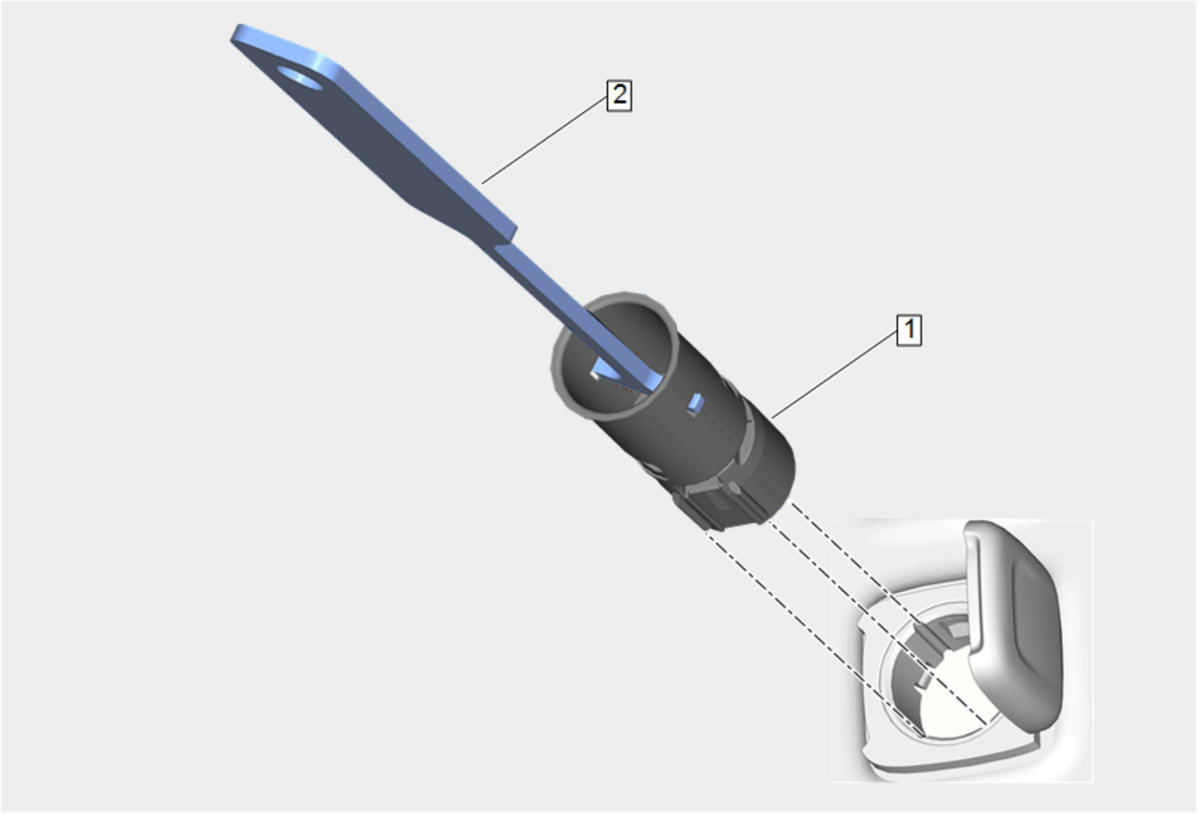

Remove the accessory power receptacle (1):
- Look into the receptacle (1). There are two 3 mm (0.11 in) tab windows 12 mm (0.47 in) from the front of the receptacle. The EL-42059 Cigar Lighter Socket Remover (2) pushes the plastic latches from these tab windows and the receptacle can be pulled straight out.
- Place one side of the "T" portion of the EL-42059 Cigar Lighter Socket Remover (2) into the tab window. The EL-42059 Cigar Lighter Socket Remover will not fit straight into the receptacle (1). Angle the EL-42059 Cigar Lighter Socket Remover slightly for insertion into the receptacle.
- Insert the other side of the "T" into the opposite tab window.
You must move the EL-42059 Cigar Lighter Socket Remover (2) handle toward horizontal to engage the other tab window.
- Use the EL-42059 Cigar Lighter Socket Remover (2) to pull the receptacle (1) straight out.
- If EL-42059
Cigar Lighter Socket Remover (2) fails to release the receptacle (1) from the retainer, perform the following alternate method:
- Insert a small grinding tool with a cutoff wheel into the socket.
- Remove the plastic latches in the 3 mm (0.11 in) square windows.
- Use the EL-42059 Cigar Lighter Socket Remover (2) as directed above to remove the socket.
