Accessory AC and DC Power Control Module Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

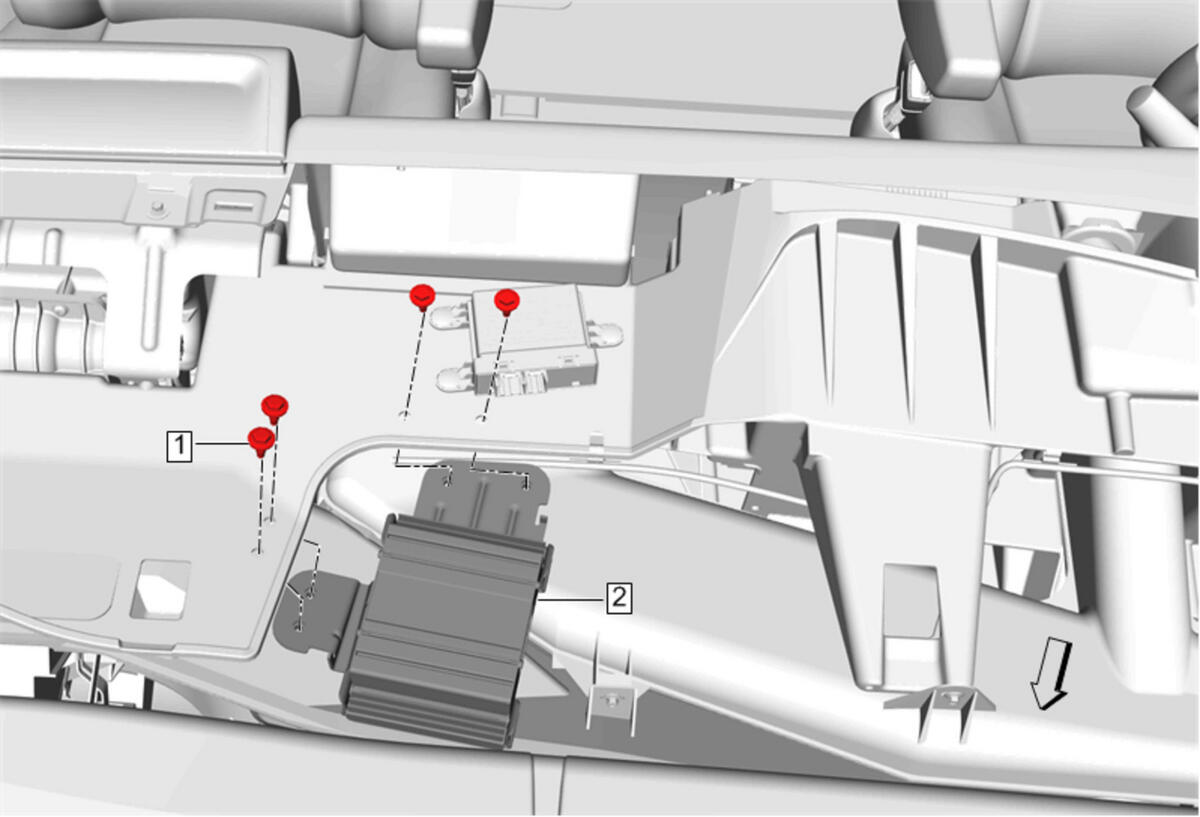

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Upper Trim Panel Replacement |
|
| 1 | Accessory AC and DC Power Control Module Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 9N.m (80 lb in) |
| 2 | Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. |
