G302 and G347

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

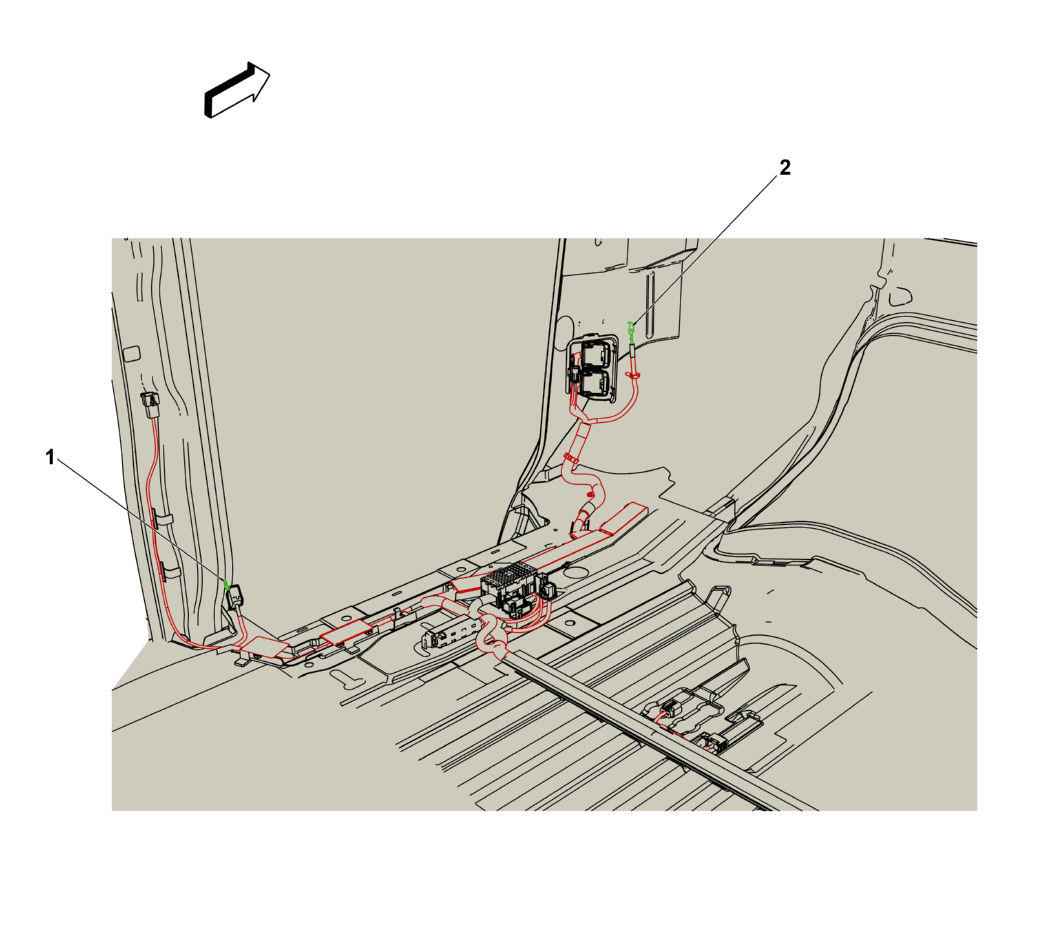

GM4004327Courtesy of GENERAL MOTORS COMPANY
G302 and G347

Items
1. G347 Body Harness
2. G302 Instrument Panel
