G300, G400, G404 and G405

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

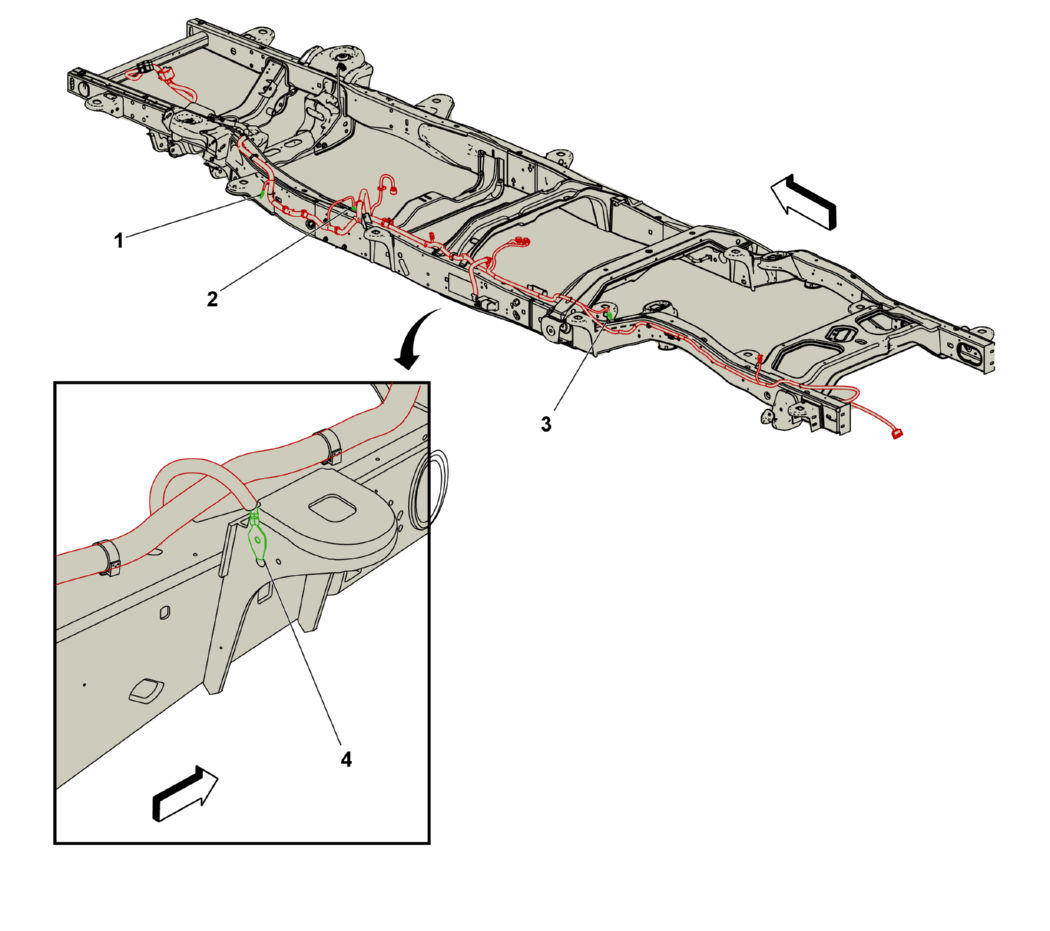

GM4584379Courtesy of GENERAL MOTORS COMPANY
G300, G400, G404 and G405

Items
1. G405 Chassis Harness (LWN)
2. G400 Chassis Harness (LWN)
3. G300 Chassis Harness
4. G404 Chassis Harness
