Front Seat Wiring Harness Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

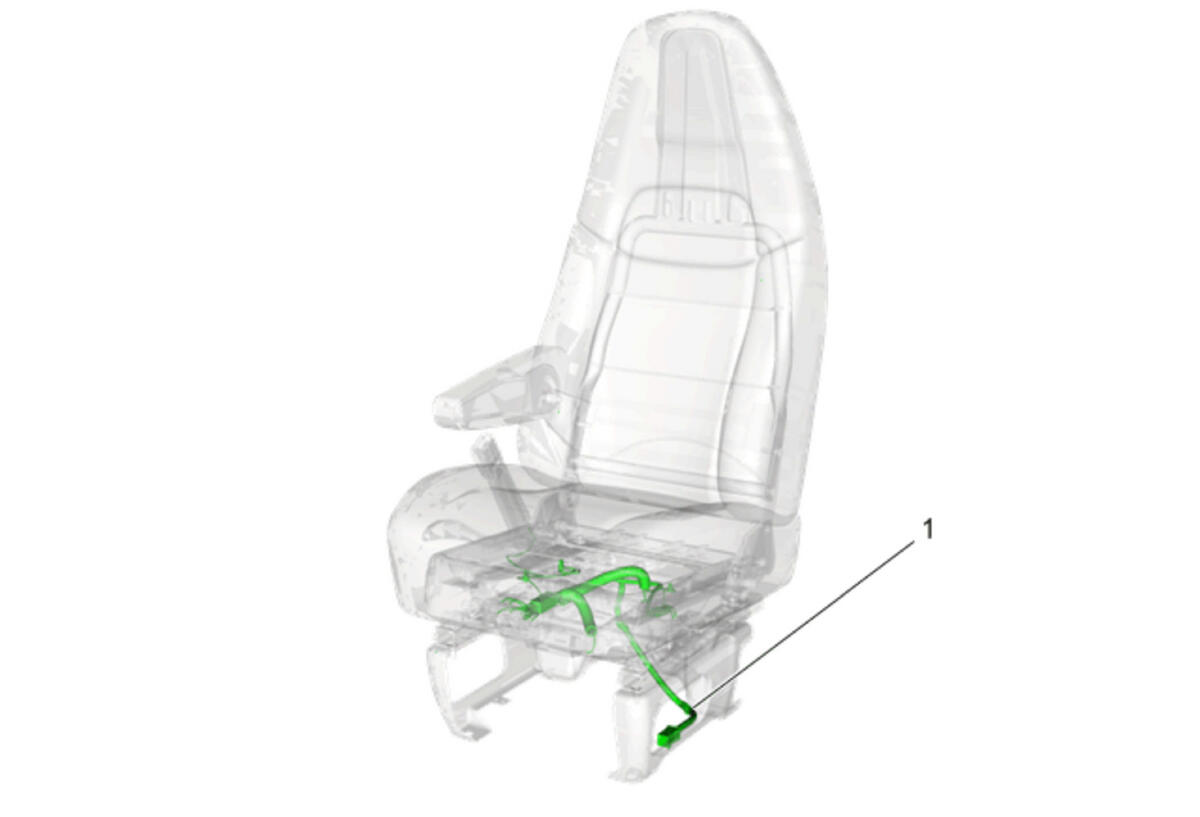

GM4115986Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the driver or passenger seat. Refer to Front Seat Removal and Installation .
1 Front Seat Wiring Harness
NOTE:

Typical wiring harness shown, individual harness may be different due to option content. Various seat components may need to be removed from the seat to access the harness depending on seat and content options.
