Output Internal Gear Disassemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

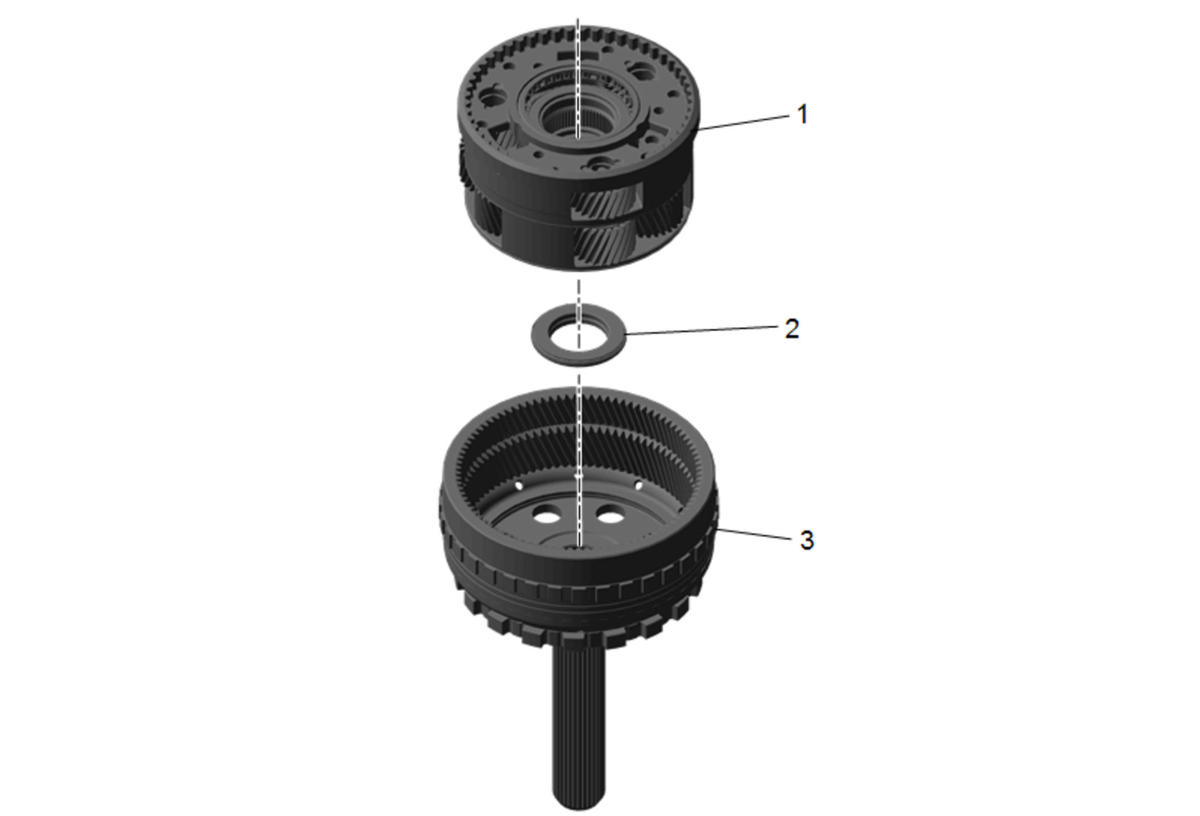

GM2773786Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
NOTE:

Inspect each component and replace as necessary.
1 Output Carrier
2 Output Carrier Thrust Bearing Assembly
3 Output Carrier Internal Gear
