Low and Reverse Clutch Plate Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

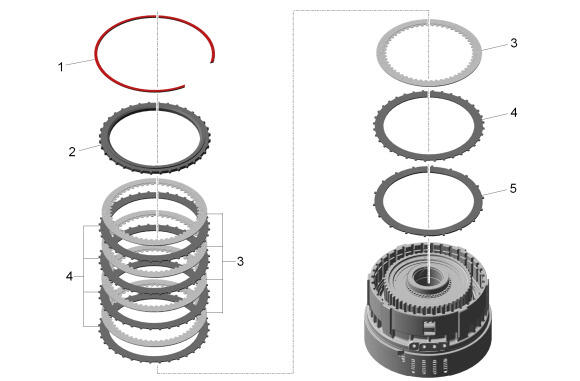

Low and Reverse Clutch Plate Removal
| Callout |
Component Name |
| 1 |
Low and Reverse Clutch Backing Plate Retaining Ring |
| 2 |
Low and Reverse Clutch Backing Plate |
| 3 |
Low and Reverse Clutch Plate - Friction [5x] |
| 4 |
Low and Reverse Clutch Plate [5x] |
| 5 |
Low and Reverse Clutch Plate - (Waved) |
