Low and Reverse Clutch Plate Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

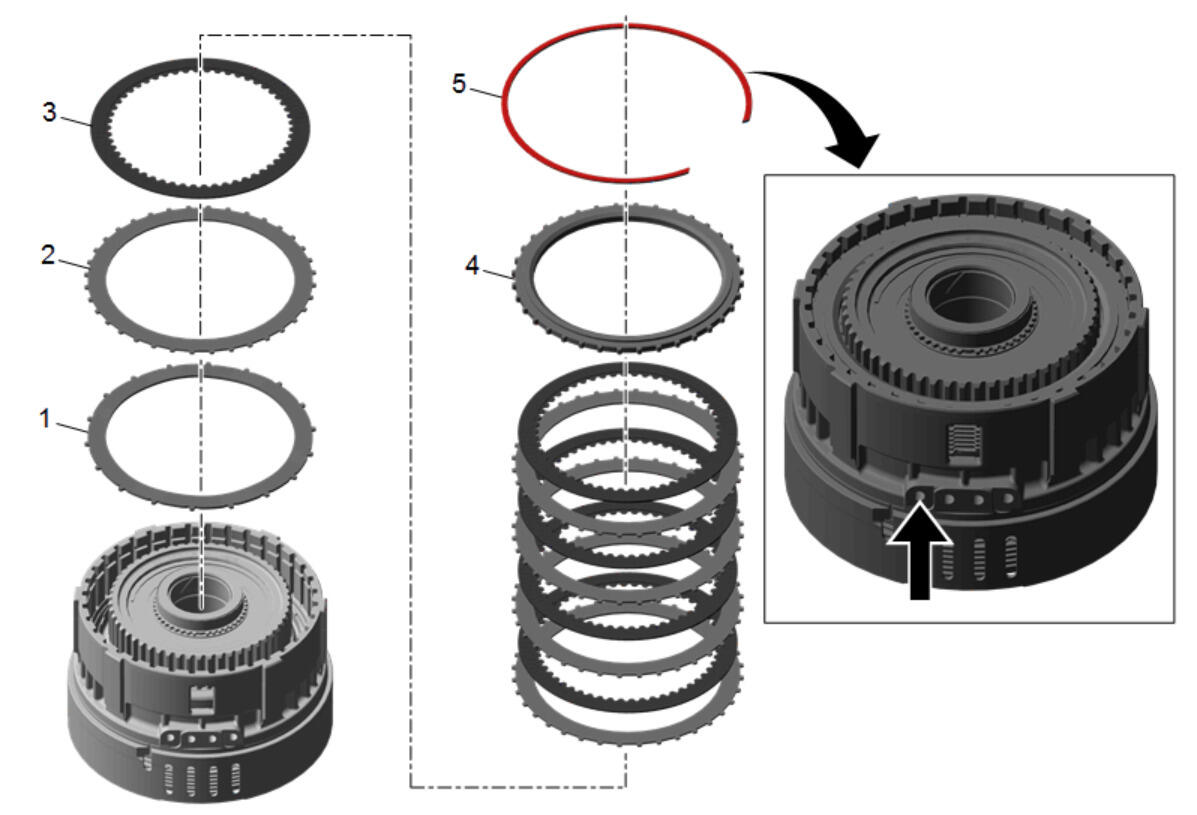

Low and Reverse Clutch Plate Installation
| Callout | Component Name |
|---|---|
| 1 | Low and Reverse Clutch Plate - (Waved) |
| 2 | Low and Reverse Clutch Plate [5x] |
| 3 | Low and Reverse Clutch Plate - Friction [5x] |
| 4 | Low and Reverse Clutch Backing Plate |
| 5 | Low and Reverse Clutch Backing Plate Retaining Ring
NOTE:
Apply air to verify proper installation of all low and reverse clutch components. |
