Upper and Lower Valve Bodies Disassemble
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Upper and Lower Valve Bodies Disassemble

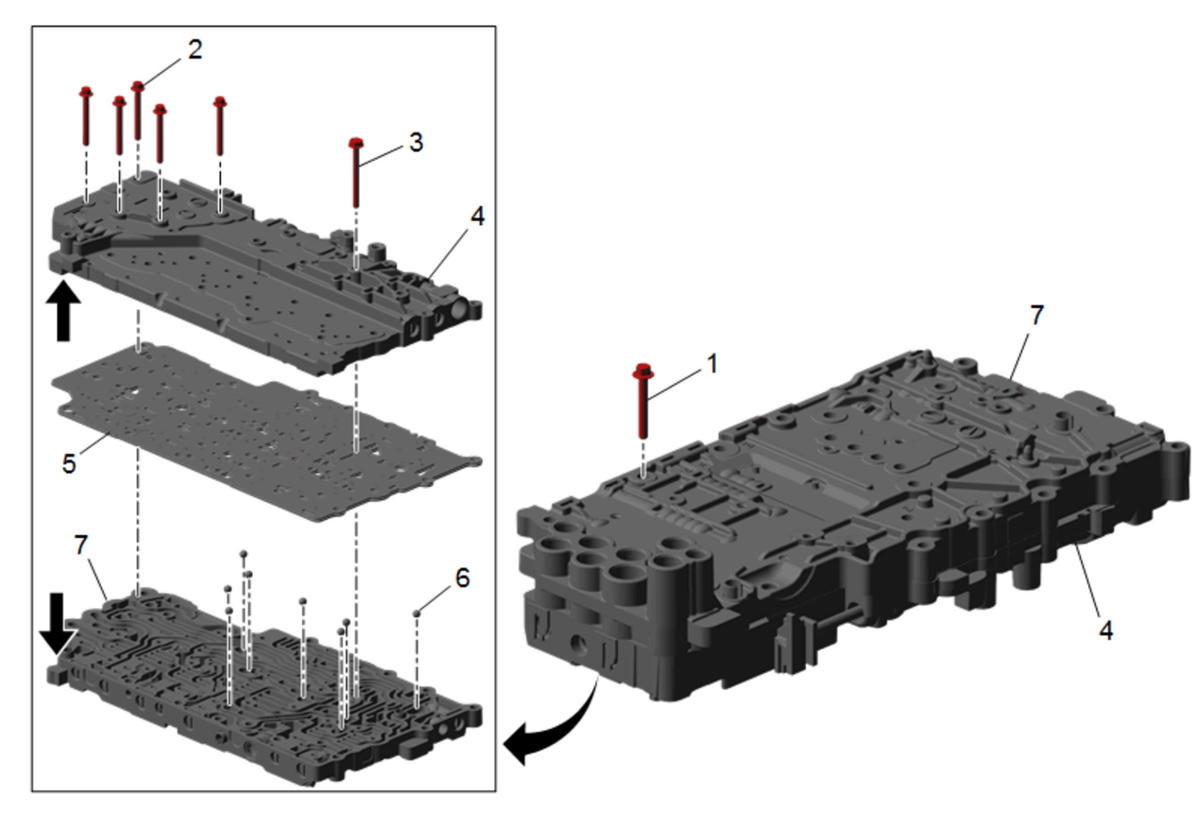

| Callout | Component Name |
|---|---|
| 1 | Control Valve Upper Body Bolt [12x] |
| 2 | Control Valve Lower Body Bolt [5x] |
| 3 | Control Valve Lower Body Bolt |
| 4 | Control Valve Lower Body Procedure Separate the upper and lower valve bodies by carefully prying at the point indicated by the arrows. Control Valve Lower Body Assembly Cleaning and Inspection |
| 5 | Control Valve Body Spacer Plate
CAUTION:
Do not use the old spacer plate. Install a NEW spacer plate. Reusing an old spacer plate may cause internal transmission leaks and transmission damage. |
| 6 | Control Valve Body Ball Check Valve [8x]
NOTE:
Note the position of the ball check valves. |
| 7 | Control Valve Upper Body
NOTE:
For additional information regarding the control valve upper body assembly. Control Valve Upper Body Assembly Cleaning and Inspection |
