2 - 6 Clutch Plates Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

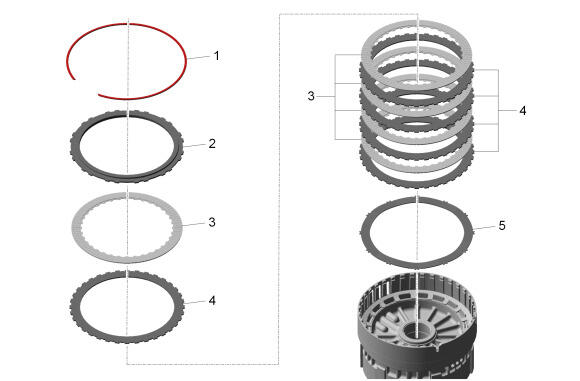

GM1555301Courtesy of GENERAL MOTORS COMPANY
2 - 6 Clutch Plates Removal

Callout Component Name
1 2-6 Clutch Backing Plate Retaining Ring
2 2-6 Clutch Backing Plate
3 2-6 Clutch Plate - Friction [5x]
4 2-6 Clutch Plate [5x]
5 2-6 Clutch Plate - (Waved)
