2 - 6 Clutch Plates Installation

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

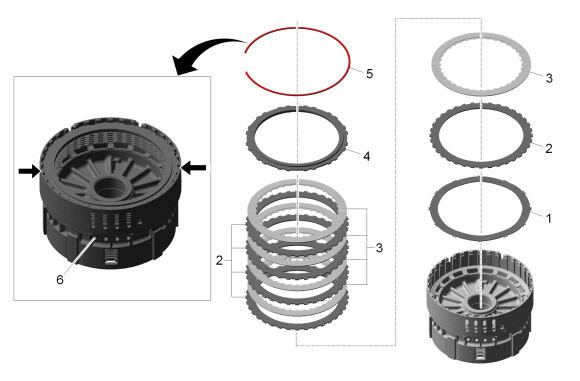

Callout	Component Name
1	2-6 Clutch Plate - (Waved)
2	2-6 Clutch Plate [5x] NOTE: Alternate between steel and fiber clutch plates.
3	2-6 Clutch Plate - Friction [5x] NOTE: Alternate between steel and fiber clutch plates.
4	2-6 Clutch Backing Plate
5	2-6 Clutch Backing Plate Retaining Ring CAUTION: When installed, the open end of the snap ring must orient away from the slotted and scalloped areas of the center support assembly. Ideal orientation location should be at the 3 o'clock or 9 o'clock position of the center support, when facing the pan side of the case. Orienting the snap ring opening with either the scalloped or slotted areas of the center support may cause transmission damage. Procedure Be sure to install the retaining ring gap at the 9 o'clock or 3 o'clock position, as indicated by the arrows.
6	2 - 6 Clutch Apply Passage NOTE: Apply air to verify proper installation of all 2 - 6 clutch components.
